17
D. Door-Right Hinged
Full Solid: CR3B-FS, CF3B-FS
A-5
8
7
3a
4
5
6
6
9
1a
1
2
3
11
10
9a

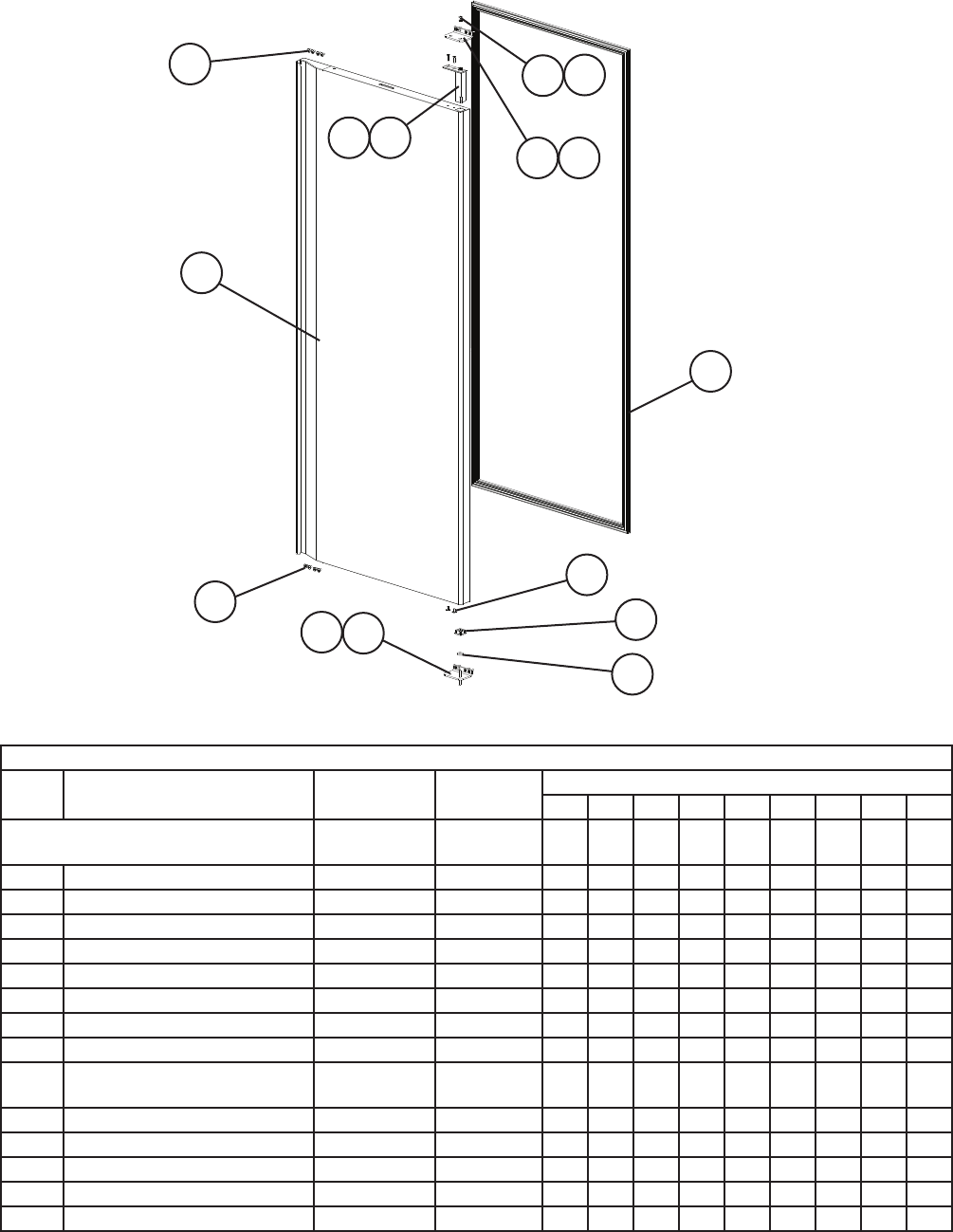

Title: D. Door-Right Hinged Model: Full Solid: CR3B-FS, CF3B-FS
Index
No. Description
Material or
Model Number Part Number
Required Number
A-5
Door-Right Hinged; Full Solid
Order Assembly Parts Individually
2A6257A01 2
1 Hinge Bracket (R) 3A6250G01 1
1a Countersunk Screw 5×20, SS 7C42-0520 3
2 Thrust Washer 4A5234-01 1
3 Hinge Bracket 3A6249-01 1
3a Countersunk Screw 5×20, SS 7C42-0520 3
4 Lock Washer 4A5231-01 1
5 Screw 4A5230-01 1
6 Truss Head Screw (ller screws) 5×10, SS 7C32-0510 8
7 Door Assembly (R)
(includes items 8 through 11)
2A6258G01 1
8 Door Gasket 2A5192-01 1
9 Hinge Cartridge 3A6258-01 1
9a Countersunk Screw 5×20, SS 7C42-0520 2
10 Truss Head Screw (ller screws) 5×10, SS 7C32-0510 2
11 Bearing 4A5232-01 1
