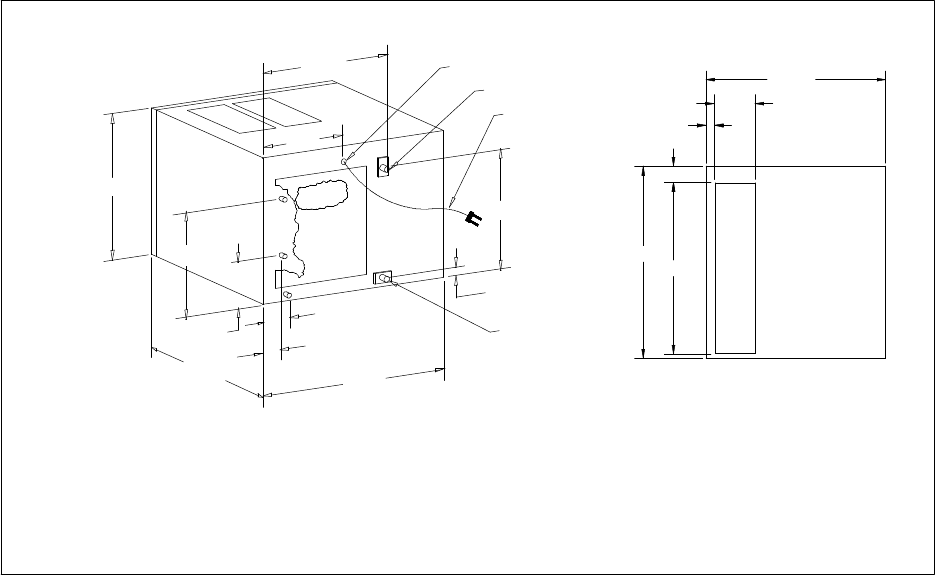

SPECIFICATIONS
FRONT
23.50
21.00
2.00
22.00
5.00
1.00
OPENING
16.38
11.25
5.00
2.25
2.75
22.00
23.50
.75
14.75
7.00
15.00
A
B
C
D
E
F
6 FT ELEC-
TRICAL
CORD
NOTE: MUST USE 20 AMP RECEPTACLE
A WATER INLET
B PUMP OUT DRAIN
C ELECTRICAL CONNECTION
D CONDENSATE DRAIN
E CONDENSER (WATER OUT)(W/C ONLY)
F CONDENSER (WATER IN)(W/C ONLY)
AIR IN
322 SERIES
ill 140
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 lbs.
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 138 lbs.
Compressor Copeland . . . . . . . . . . . . . . . . . . . . . . 5,300/BTU
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . R--22
Electrical
Freeze Cycle Amps Draw . . . . . . . . . . . . . . . . . . . 8.0
Time Delay Fuse Retains (amps) . . . . . . . . . . . . . 20.0
Minimum Circuit Ampacity (amps) . . . . . . . . . . . . 20.0
Power Supply (Single Phase) . . . . . . . . . . . . . . . . 115V/60 Hz
Plumbing Connections
Inlet Water Supply . . . . . . . . . . . . . . . . . . . . . . . . . . Max. pressure 50 PSI 3/8” SAE MFL Ftg
Bin Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Through Bin
Waster Water (from water cooled models) . . . . . Two 3/8 in. SAE MFL Fittings
Pump Out Drain Connection . . . . . . . . . . . . . . . . . 1/2 in. ID Tubing
UNPACKING
1. Uncrate machine and/or bin by removing the staples from around the bottom of cardboard crate and lift off.
2. Remove bolts fastening the crate skid to the bottom of the unit. If auxiliary legs have been purchased for
the bin, they should be installed at this time.
