P/N 185211007 2 8/25/94

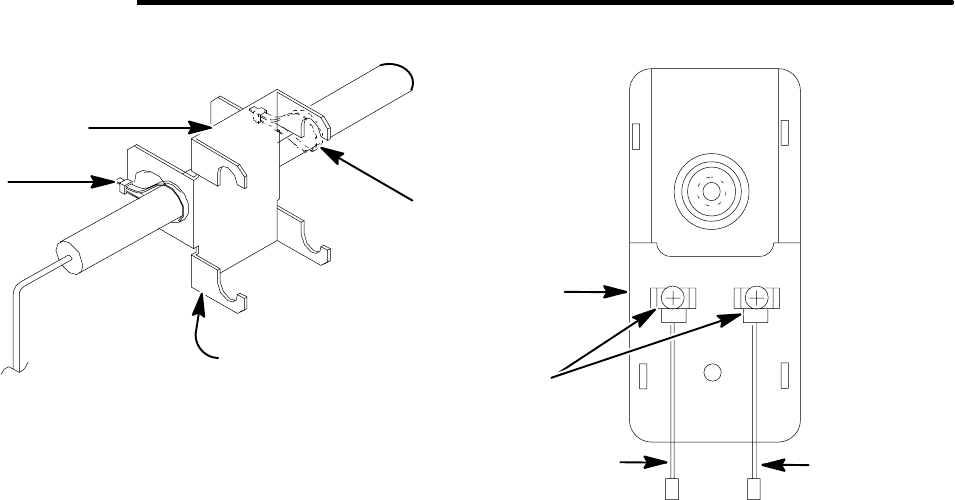

Step Two
A
B
B
Ice Bank Control
P/N 33-5794-000
C
Red Lead
P/N 3576
Black Lead
P/N 3575
P/N 3529
A. Snap the new ice bank control bulb holder
(P/N 3529) onto the second and third coil from
the top.
B. Place the ice bank control bulb into the holder
and secure it with two poly ties
(P/N 040056-000). Replace the basket and
hook up the tubes to the valves.
C. Connect the red and black wire leads to the ice
bank control as shown.
