P/N 185211007 4 8/25/94
Step Four
S Reconnect all product tubing. Be sure the tapered white nylon washers are
in place.
S Route the tubing through the back hole of the panel and tie in place.
S Apply the DANGER decal to the top of the control box.

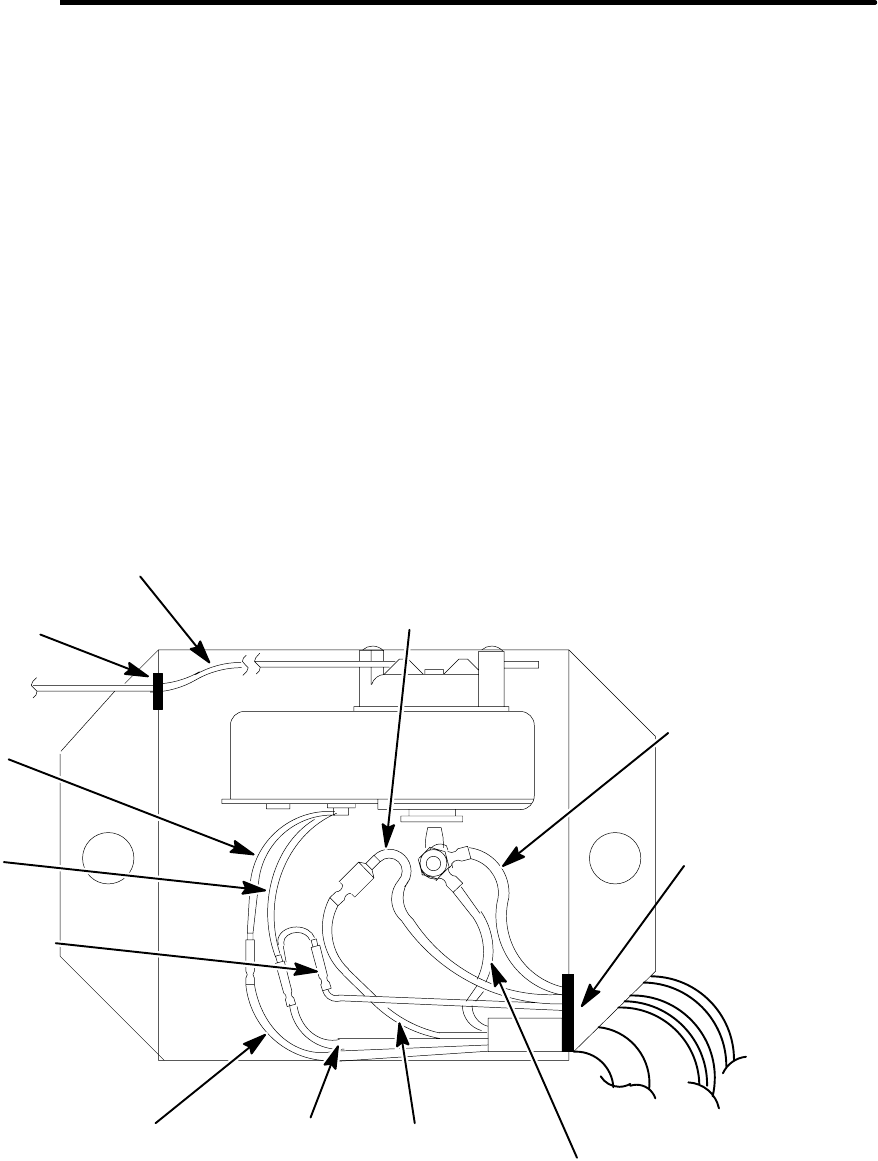

S Snap the grommet and the snap bushing into the holes of the control box as
shown.
S Place the ice bank control in the control box with the capillary tube going
through the grommet. Screw the ice bank control in place.
S Route the agitator motor electrical leads and the electrical cord through the
snap bushing.
S Connect all wiring as shown.
S When connecting ground leads, be sure to attach power cord ground lead
first then apply a nut and tighten. Then apply the ground lead from the agita-
tor motor and then the final nut. Tighten securely
Grommet
Snap Bushing
Capillary Tube
Green Ground wire
Agitator Motor
Green Ground Wire
Power Cord (Secure
first to Control box
White Wire
Gray Power Cord
Black Wire
Gray Power Cord
Red Wire
Gray Power Cord
Agitator Motor
Wire (Ribbed)
Black
Jumper Wire
Red
Jumper Wire
Agitator Motor Wire
(smooth)
