Kenmore 665.95829 Range User Manual

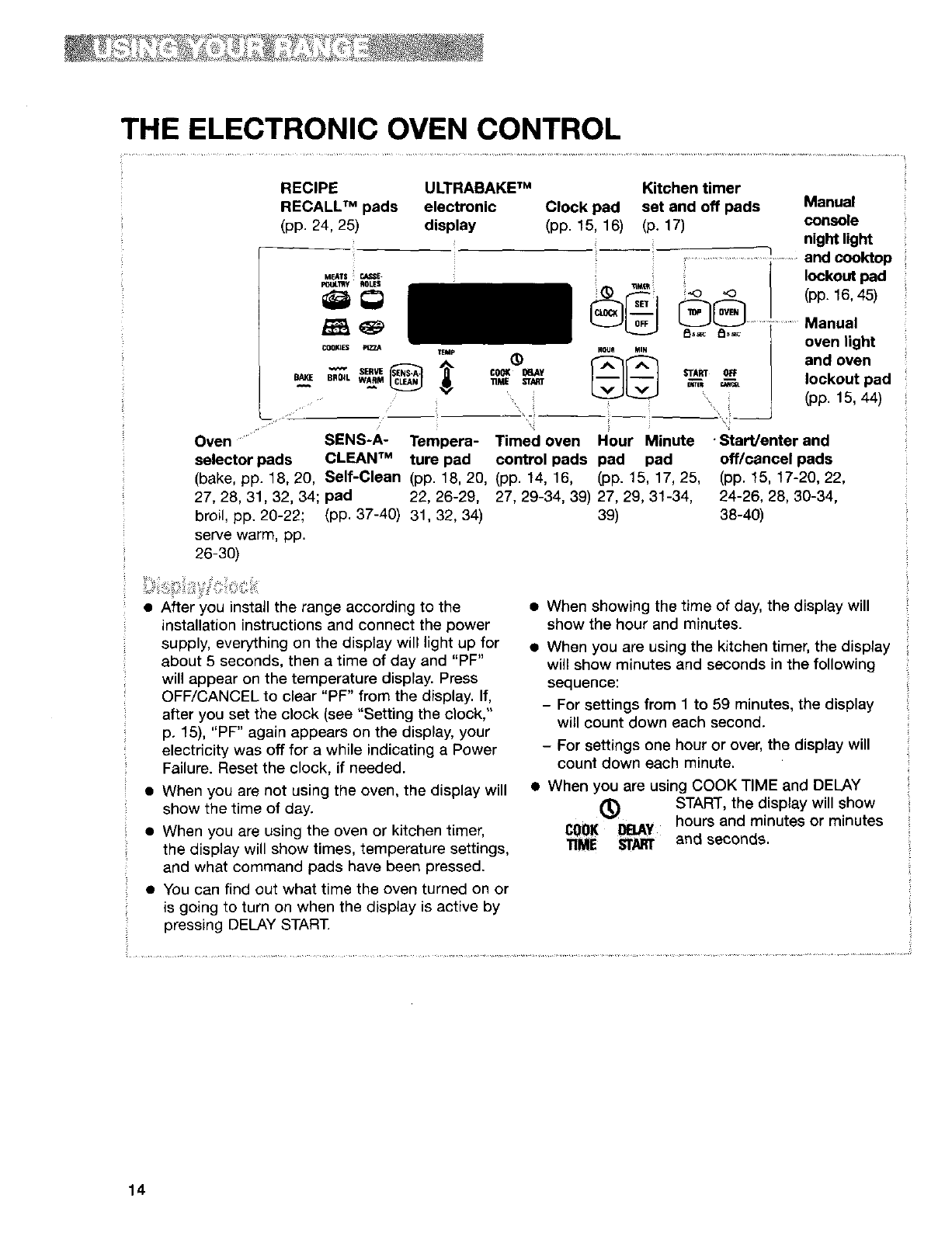

THE ELECTRONIC OVEN CONTROL
RECIPE ULTRABAKE TM
RECALL TM pads electronic
(pp. 24, 25) display
_ SET
Kitchen timer
Clock pad set and off pads Manual
(pp, 15, 16) (p. t 7) console
night light
............................. and cooktop
lockout pad
(pp. 16, 45)
Oven SENS-A- Tempera-
selector pads CLEAN TM ture pad
(bake, pp. 18,20, Self-Clean (pp. 18,20, (pp. 14,16, (pp. 15, 17,25,
27, 28, 31, 32, 34; pad 22, 26-29, 27, 29-34, 39) 27, 29, 31-34,
broil, pp. 20-22; (pp. 37-40) 31, 32, 34) 39)
serve warm, pp.
26-30)
COOKIES _ TEMp (_ HOUm MIN
w_M
i ' i
.........Manual
oven light
and oven
lockout pad
(pp. 15, 44)
Timed oven Hour Minute •Start/enter and
control pads pad pad off/cancel pads
(pp. 15, 17-20, 22,
24-26, 28, 30-34,
38-40)
After you install the range according to the
installation instructions and connect the power
supply, everything on the display will light up for
about 5 seconds, then a time of day and "PF"
will appear on the temperature display. Press
OFF/CANCEL to clear "PF" from the display. If,
after you set the clock (see "Setting the clock,"
p. 15), "PF" again appears on the display, your
electricity was off for a while indicating a Power
Failure. Reset the clock, if needed.
When you are not using the oven, the display will
show the time of day.
When you are using the oven or kitchen timer,
the display will show times, temperature settings,
and what command pads have been pressed.
You can find out what time the oven turned on or
is going to turn on when the display is active by
pressing DELAY START.
When showing the time of day, the display will
show the hour and minutes.
When you are using the kitchen timer, the display
will show minutes and seconds in the following
sequence:
- For settings from 1 to 59 minutes, the display
will count down each second.
- For settings one hour or over, the display will
count down each minute.
When you are using COOK TIME and DELAY
(_) START, the display will show
C00K DBA¥ hours and minutes or minutes
TIME START and seconds.
14
