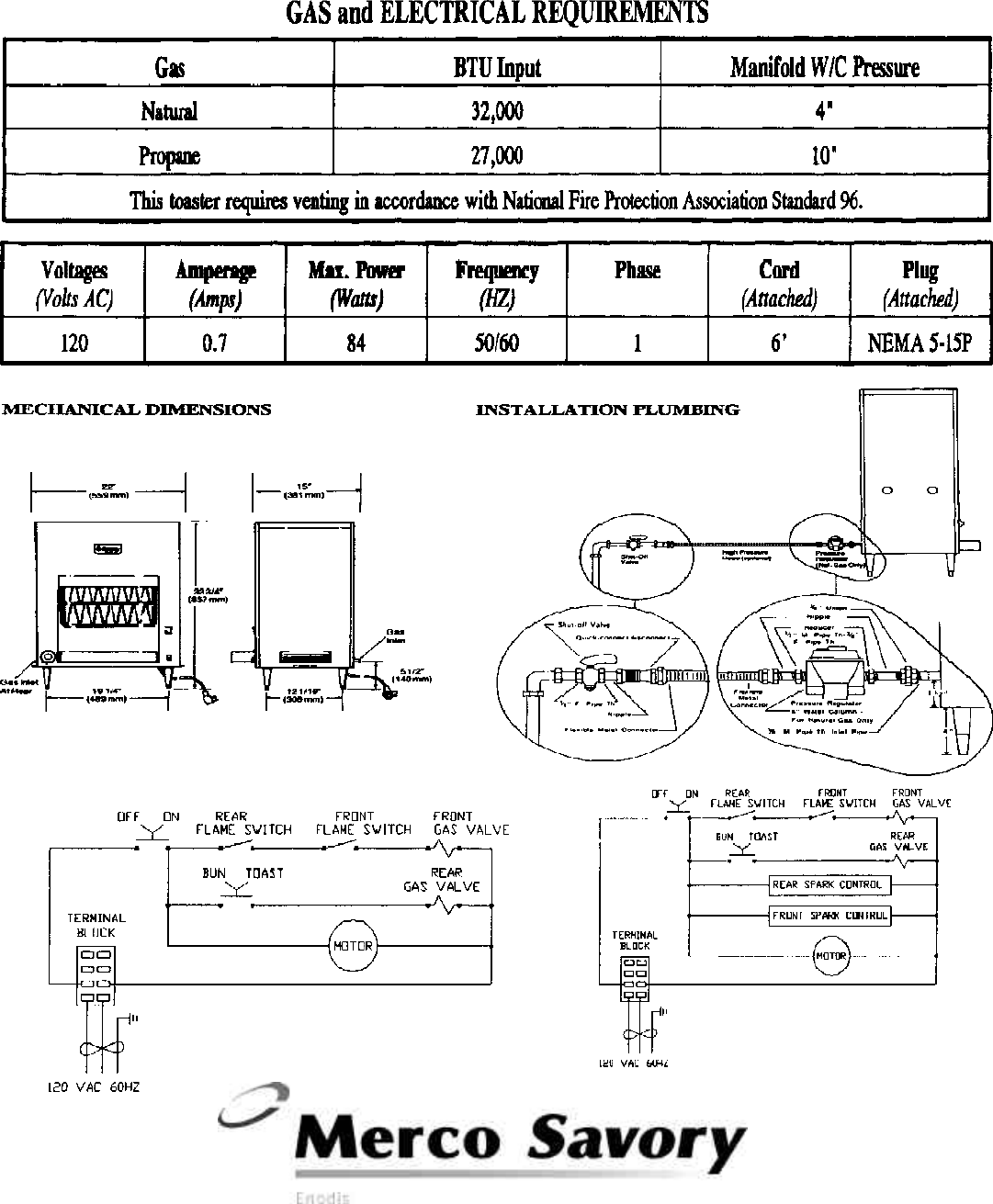

H Bearing Replacement
Coupling Bearing (Right Side)
1. Remove right side panel and insulation.
2. Remove the two lock nuts holding bearing
retainer and remove retainer.
3. Remove old bearing.
4. Install new bearing and seat in opening.
5. Replace retainer, nuts, insulation and side
panel.
Coupling Bearing (Left Side)
1. Remove left side panel and insulation.
2. Remove the two lock nuts holding bearing
retainer and remove retainer.
3. Remove old bearing.
4. Install new bearing and seat in opening.
5. Replace retainer, lock nuts, insulation and side
panel.
Tension Assembly Bearing (Right or Left Side)
1. Remove side panel.
2. Remove one end of tension spring from
tension bracket.
3. Remove the two lock nuts holding bearing
retainer and remove retainer.
4. Remove tension bracket and old bearing.
5. Install new bearing and seat in opening.
(Refer to illustration 6)
6. Replace tension bracket, retainer, lock nuts
and spring. NOTE: If tension bracket has
two anchor holes for spring, use hole
closest to the front of machine.
Transmission Bearing (Right Side)
1. See Section G; follow steps 1, 2 and 3.
2. Remove the two lock nuts holding bearing
retainer and remove retainer.
3. Remove old bearing.
4. Install new bearing and seat in opening.
5. Replace retainer and lock nuts.
6. See Section G; follow steps 4, 5 and 6.
Transmission Bearing (Left Side)
1. Remove left side panel.
2. Remove the two lock nuts holding bearing
retainer and remove retainer.
3. Remove old bearing.
4. Install new bearing and seat in opening.
5. Replace retainer, nuts and side panel.
I Conveyor Chain Replace-
ment
(Refer to illustration 11)
1. Remove toast receiving tray, delivery
chute, left and right side panels.
2. Remove the two screws in upper edge of
front opening that holds the front baffle.
Slide baffle toward back of machine to
remove. (Illustration 7)
