10
Forced
Air
Furnace
Outdoors
Cool Air
Return
Return Air
Built-in balancing damper*
in both air streams.
*Unit is normally balanced with
furnace running at highest
operational speed
M
A
G
N
E
H
E
L
I
C
M
A
G
N
E
H
E
L
I
C

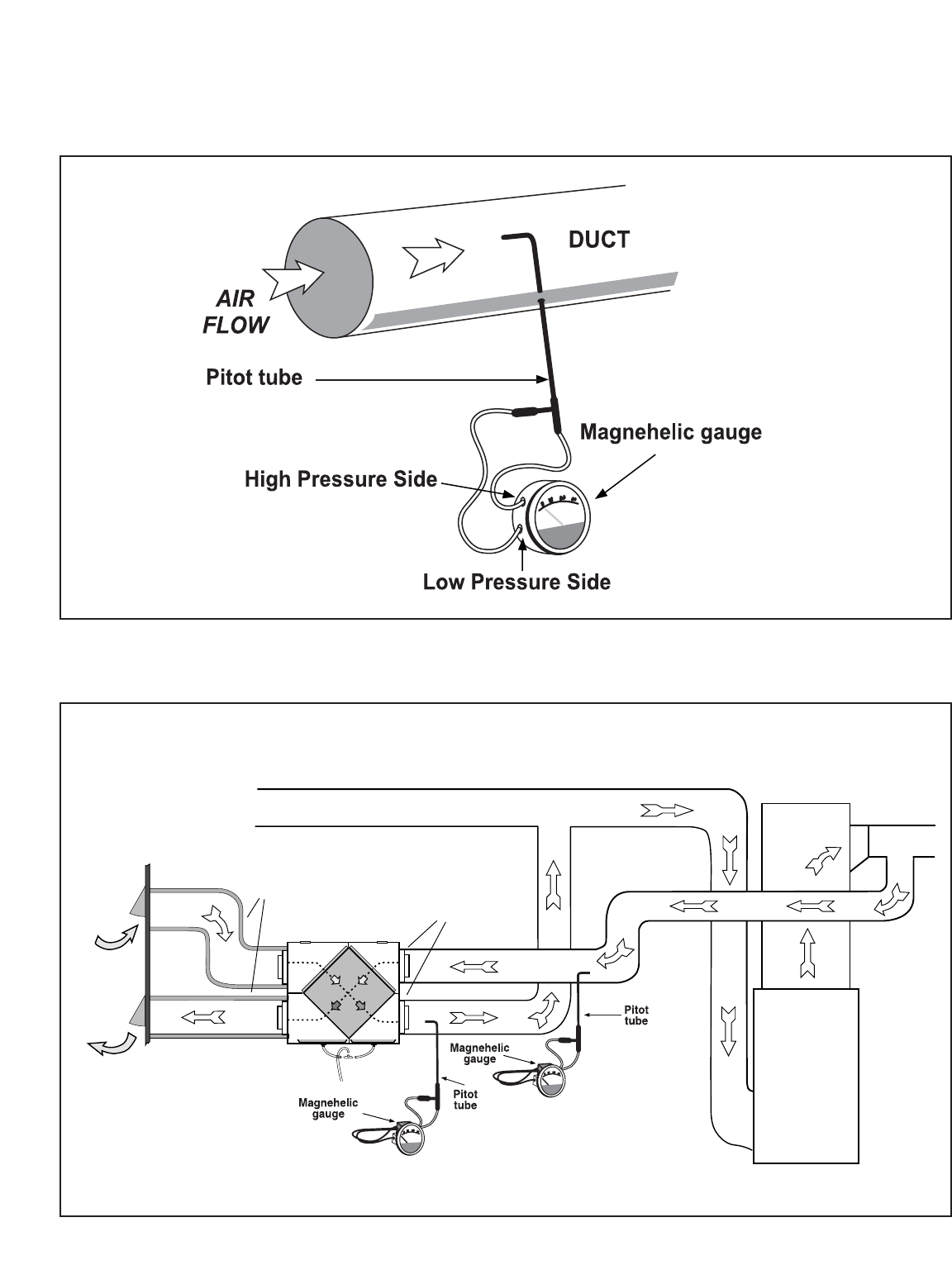

Placement of Pitot Tube HRV
M
AGNEHELIC
Pitot Tube and Gauge
Pitot Tube Air Flow
Balancing Kit
with magnehelic gauge,
Pitot tube, hose and
carry case.
NOTE:
Graphic is for illustrative purposes only.
Duct connection ports may vary.
NOTE: Apply use of balancing dampers as required.
