Perlick H50IMS-L Ice Maker User Manual



18
Snug the screws,
but do not tighten.
Sheet Metal Bracket
Overlay Panel
Tighten the screws.
5) Fasten the overlay panel to the door using the four M4×25 pan head screws provided.
Snug the screws, but do not tighten. See Fig. 17.
6) Fasten the sheet metal bracket to the bottom of the door with the three T2 screws
provided. Tighten the screws to the door. See Fig. 18.
3) Adjust the sheet metal bracket so that it is ush with the bottom of the door. See
Fig. 15.
4) Remove the overlay panel from the door and tighten the two M4×8 truss head screws
securing the sheet metal bracket to the overlay panel. See Fig. 16.

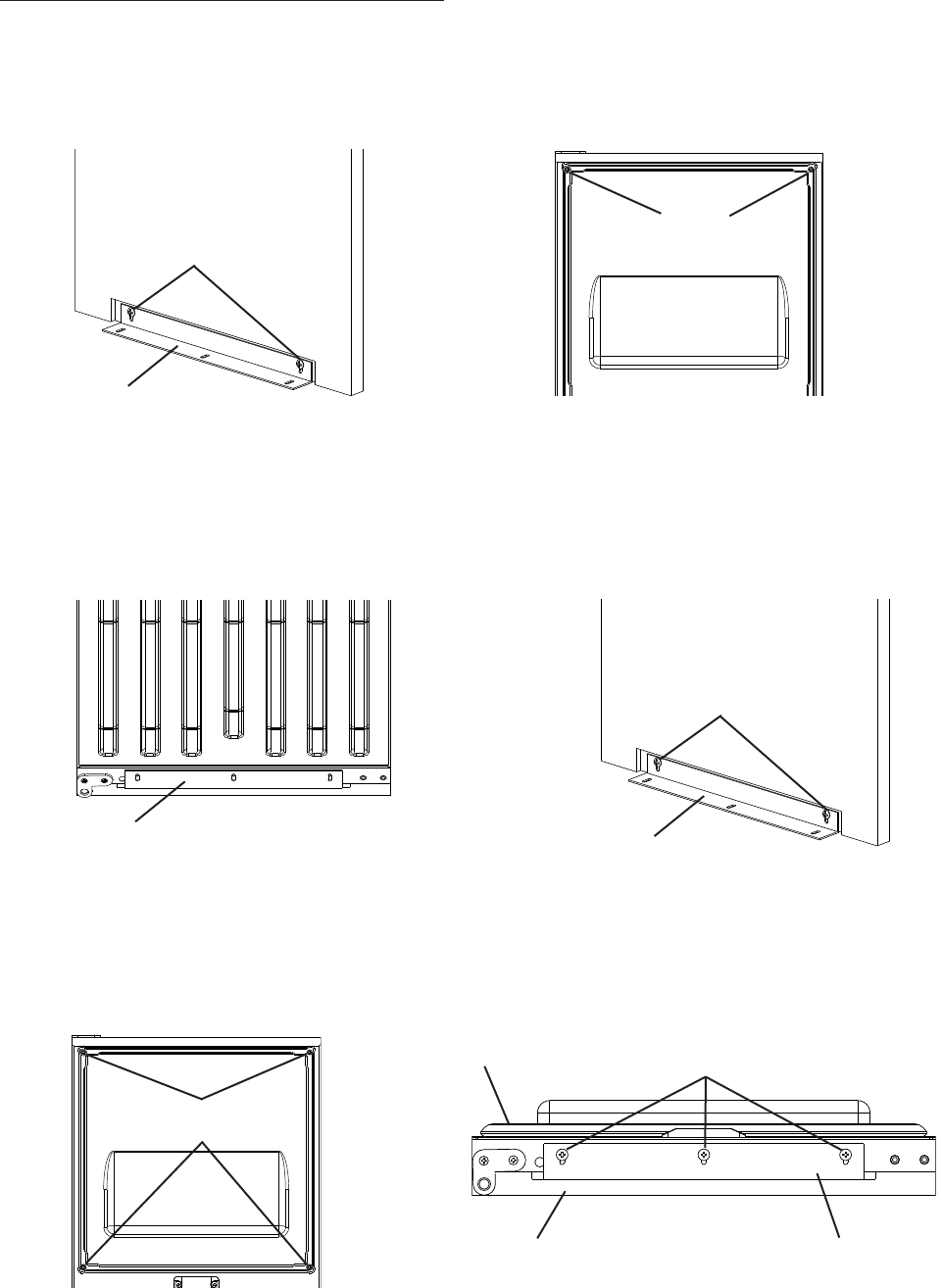

(4) Attachment of Overlay Panel to Door
1) Fasten the sheet metal bracket to the overlay panel using the two M4×8 truss head
screws provided. Snug the screws, but do not tighten. See Fig. 13.
2) Temporarily fasten the overlay panel to the door using 2 of the M4×25 pan head screws
provided. See Fig. 14.
Sheet Metal Bracket
Door
Sheet Metal Bracket
Screws
Overlay Panel
Door
Screws
Fig. 13 Fig. 14
Overlay Panel
Snug the screws,
but do not tighten.
Sheet Metal Bracket
Fig. 15 Fig. 16
Fig. 17 Fig. 18
