Perlick H50IMS-L Ice Maker User Manual



27
Reducing Pipe
Rail
Rail
13) Position and lock the ice chute onto the front and rear frame pipes by pushing the ice
chute down until it clicks onto both frame pipes. See Fig. 36.
14) Slide in the water tank along the rails at the bottom of the left and right brackets until it
locks into place. See Fig. 37.
Right Bracket
Rail
Rail
Fig. 34 Fig. 35
Fig. 36 Fig. 37

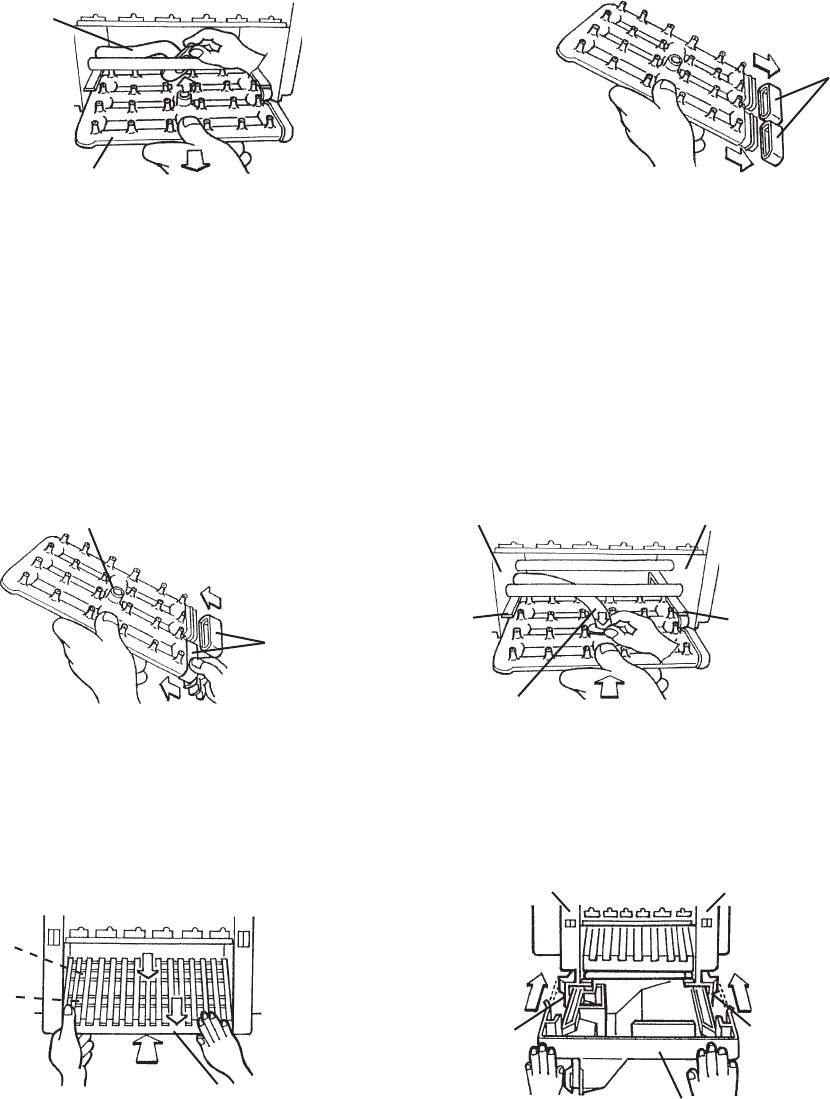

7) Disconnect the discharge tube from the spray assembly, then slide out the spray
assembly. See Fig. 32.
8) Remove the two caps. See Fig. 33.
Discharge Tube
Spray Assembly
Caps
9) Soak all of the removed parts and the scoop in the sanitizing solution for 10 minutes. If
the spray assembly nozzles are clogged, clean them with a wire or a suitable brush.
10) Rinse the parts thoroughly with clean water.
11) Ret the 2 caps in their correct positions. Make sure the reducing pipe is in place in the
center. See Fig. 34.
12) Slide in the spray assembly along the rails on the left and right brackets. See Fig. 35.
Connect the discharge tube securely to the spray assembly; a loose tting may cause a
water leak.
Fig. 32 Fig. 33
Left Bracket
Right BracketLeft Bracket
Caps
Discharge Tube
Ice Chute
Front Frame
Pipe
Rear Frame
Pipe
Water Tank
