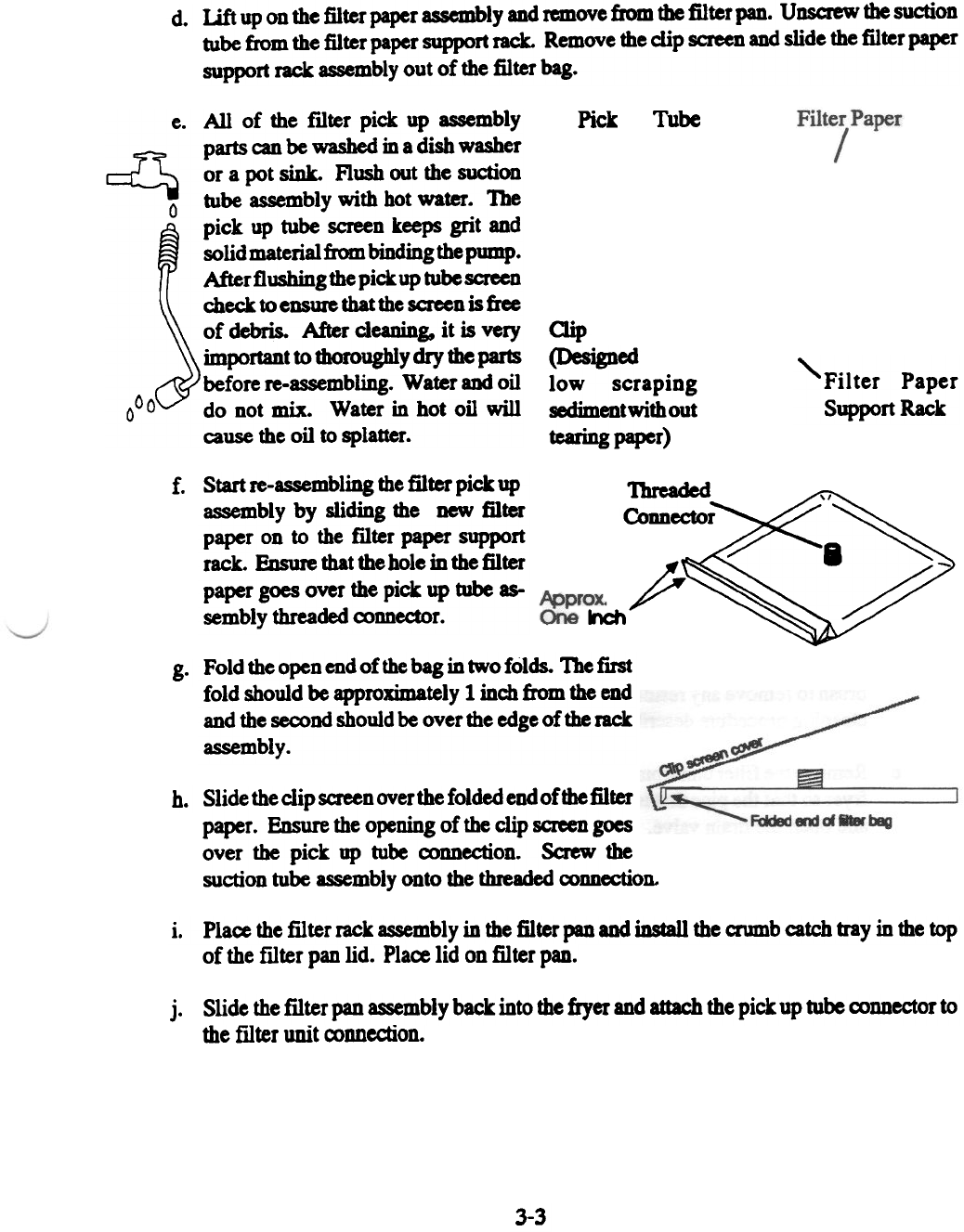

Lift up on the filter paper assembly and remove from the filter pan. Unscrew the suction
tube from the filter paper support rack. Remove the clip screen and slide the filter paper
support rack assembly out of the filter bag.
d.
e. All of the filter pick up assembly
parts can be washed in a dish washer
~ or a pot sink. Hush out the suction
0 tube assembly with hot water. The
pick up tube screen keeps grit and
solid material from binding the pump.
After flushing the pick up tube screen
check to ensure that the screen is free
of debris. After cleaning, it is very
important to thoroughly dry the parts
before re-assembling. Water and oil
000 do not mix. Water in hot oil will
cause the oil to splatter.
Start fe-assembling the filter pick up
assembly by sliding the new filter
paper on to the filter paper support
rack. Ensure that the hole in the filter
paper goes over the pick up tube as-
sembly threaded connector.
f.
Fold the open end of the bag in two folds. The fIrSt
fold should be approximately 1 inch from the end
and the second should be over the edge of the rack
assembly.
g.
Slide the clip screen over the folded end of the filter
paper. Ensure the opening of the clip screen goes
over the pick up tube connection. Screw the
suction tube assembly onto the threaded connection.
h.
i. Place the filter rack assembly in the filter pan and install the aumb catch tray in the top
of the filter pan lid.
j. Slide the illter pan assembly back into the fryer and attach the pick up tube connector to
the filter unit connection.
Tube
Pick
aip
(Designed
low scraping
sediment with out
tearing paper)
'Filter Paper
Support Rack
Conn
~
Place lid on filter pan.
3-3
