7,

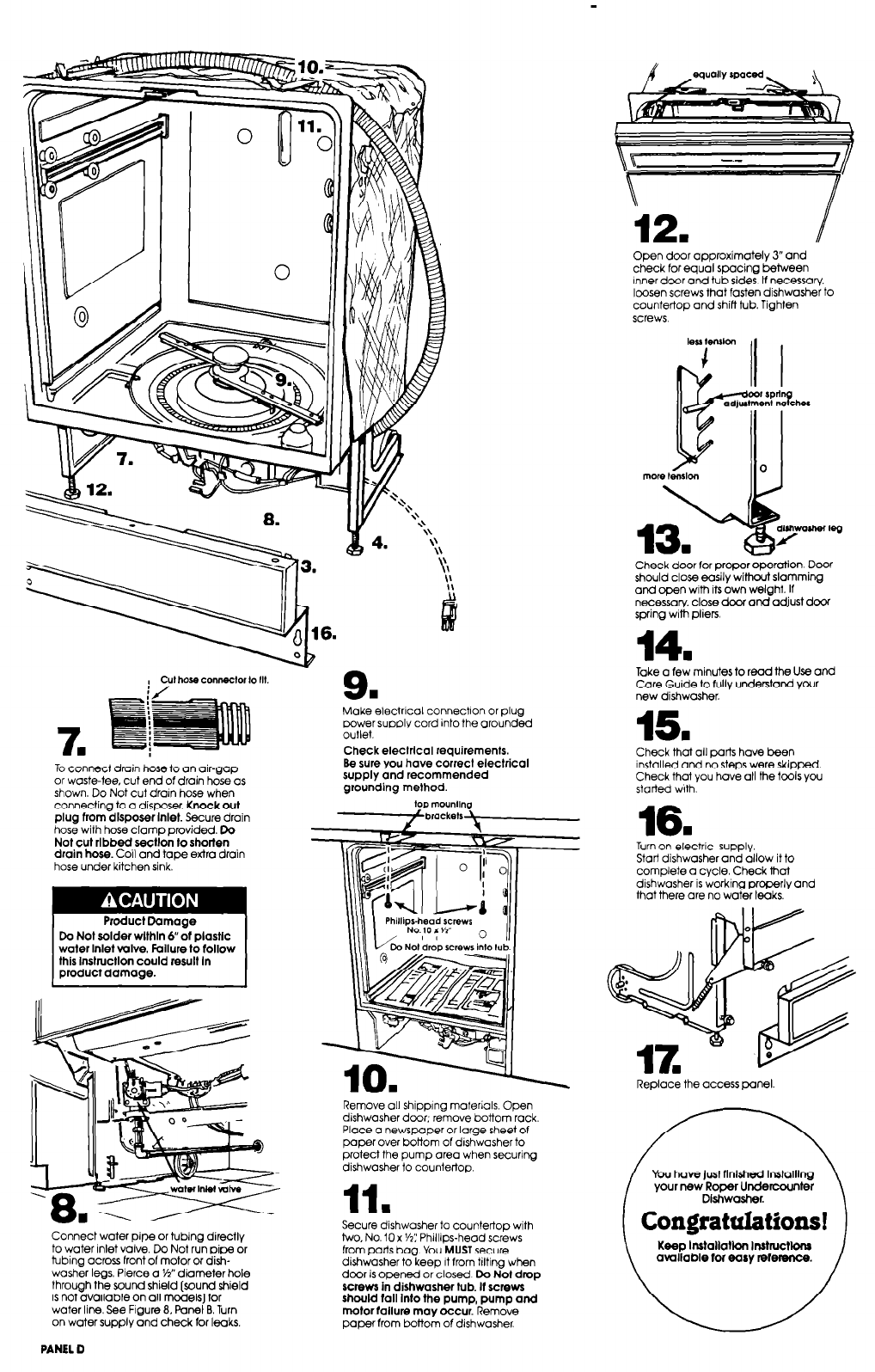

To connect drain hose to an air-gap
or waste-tee, cut end of drain hose as
shown. Do Not cut drain hose when
connecting to a disposer. Knock out
plug from disposer Inlet. Secure drain
hose with hose clamp provided. Do
Not cu1 rlbbed sectlon lo shorten
drain hose. Coil and tape extra drain
hose under kitchen sink.
Product Damage
Do Not solder wlthln 6” of plastic
water Inlet valve. Failure to follow
this lnshuctlon could result In
product damage.
Connect water pipe or tubing directly
to water Inlet valve. Do Not run pipe or
tubing across front of motor or dish-
washer legs. Pierce a %” diameter hole
through the sound shield [sound shield
is not -&ailable on all models] for
water line See Fiaure 8. Panel 8. Turn
on water supply&d check for leaks
Make electrical connectlon or plug
power supply cord into the grounded
outlet.
CheckelectrIcal requirements.
Be sure you have correct electrical
supply and recommended
grounding method.
Remove all shipplng moteriols. Open
dishwasher door: remove bottom rock.
Place a newspaper or large sheet of
paper over bottom of dishwasher to
protect the pump area when securing
dishwasher10 countertop.
11 w
Secure dishwasher to countertop with
two. No. 10 x %: PhilliDs-head screws
from paris bog. You’MUST secure
dishwasher to keep It from tilting when
door is opened or closed Do Nof drop
screws In dishwasher tub. If screws
should fall Into the pump, pump and
motor failure may occur. Remove
poperfrom bottom of dishwasher.
Open door approximately 3” and
check for equal spacing b&Men
inner door ond tub sides. If necessary.
loosen screws that fasten dishwasher to
countertop and shift tub. Tighten
screws.
Check door for proper-&ration. Door
should close easily without slamming
and open with its own weight. If
necessary. close door and adjust dooc
spring with pliers
14.
Take o few minutes to read the Use and
Care Guide to fully understand your
new dishwasher.
15.
Check that all parts have been
installed and no steps were skipped.
Check that you hove all the tools you
started with.
16.
Turn on electric supply.
Start dishwasher and allow it to
complete a cycle. Check that
dishwasher is working properly and
that there are no water leaks.
Replace the access panel.
/
You have just flnlshed InsstallIng
your new Roper Undercounter
DIshwasher.
( Congratulations! )
\
Keep Installa)lon lnshuctlona
a~llable for easy reference.
J
PANEL D
