6.1 MAIN SWITCH
All units are equipped with a 3-position main switch, located on the front panel.
6.2 40415 AND 40425 WALL CONTROLS DESCRIPTION
The included wall control is 40415 (intented for HRV 2600, HEPA 3100 and HEPA 4100 units only) or 40425 control (intented for
HR 2.6 and HF 3.1 units only). The wall control is in OFF mode when power is applied for the first time. The mode does not change
following a power failure.
40415
CONTROL OR 40425 CONTROL
6.3 OPERATING 40415 / 40425 CONTROLS

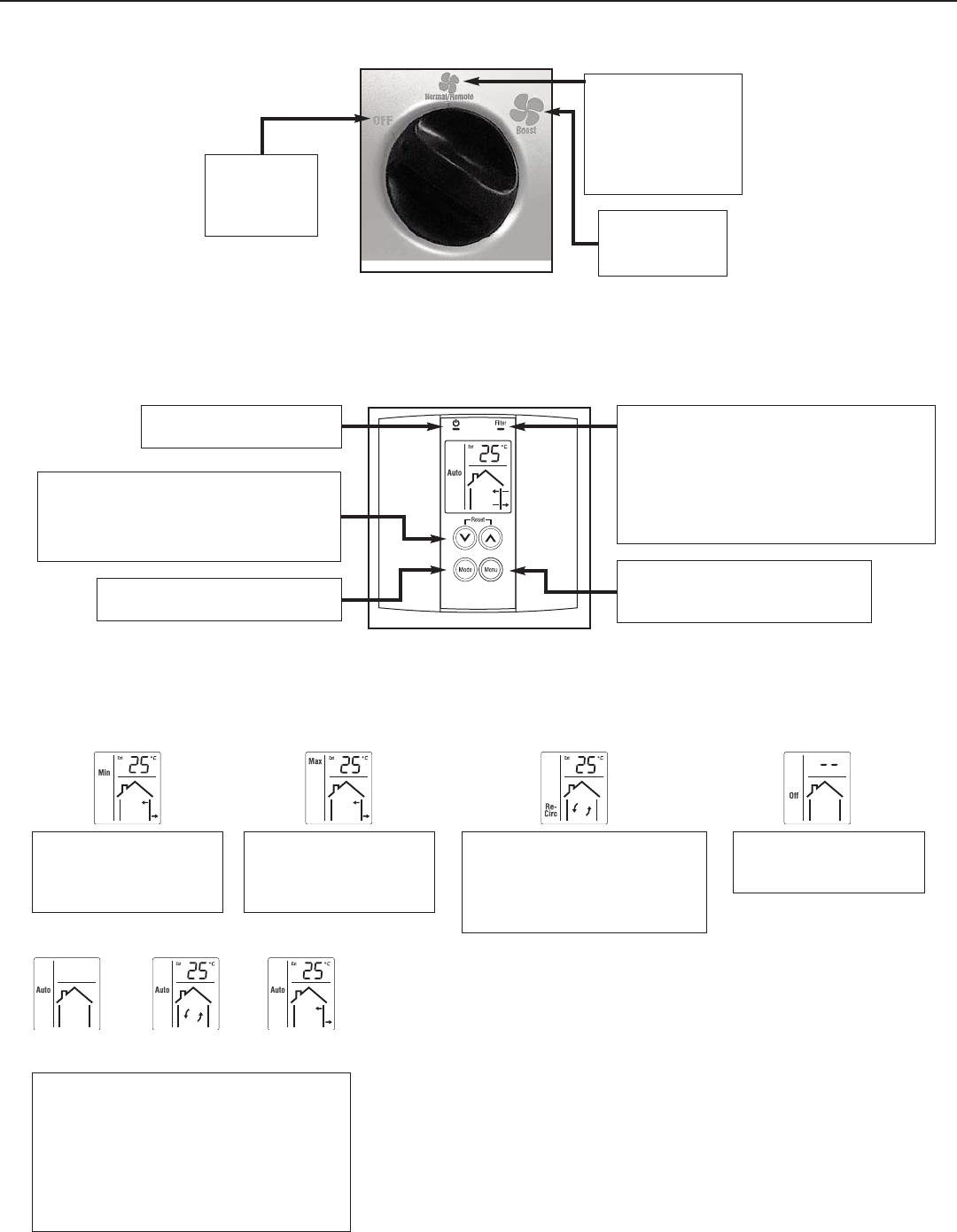

The wall controls 40415 and 40425 provide 5 operation modes. Press the Mode button to select the desired mode.
6. CONTROLS
OFF:
U
NIT IS OFF AND
DOOR IS
UNLOCKED.
NORMAL/REMOTE:
UNITISOPERATINGON
NORMAL SPEED. THIS IS
THE RIGHT POSITION
WHEN A WALL CONTROL
IS USED.
BOOST:
U
NIT IS OPERATING
ON HIGH SPEED.
VC0098
VC0053
- 18 -
ILLUMINATES IN ALL MODES
EXCEPT
OFF MODE.
FILTER AND PREFILTER MAINTENANCE LED.
FLASHES WHEN IT IS TIME TO REPLACE
PREFILTER AND WASH CORE FILTERS.
SEE BIANNUAL MAINTENANCE IN SECTION 7.1.
L
IGHTS UP WHEN IT IS TIME TO REPLACE
FILTER AND PREFILTER AND WASH CORE FILTERS.
SEE ANNUAL MAINTENANCE SECTION 7.2.
The unit exchanges air
at normal speed.
The outdoor
temperature* is displayed.
The unit exchanges air
at high speed.
The outdoor
temperature* is displayed.
The unit recirculates air. However,
every 20 minutes the unit
exchanges air for
2.5 minutes so that it can obtain
a reading of the outdoor temperature*.
The unit operates on a 60-minute cycle.
For the first 40 minutes, the unit recirculates
air or is off (See configuration parameter 2).
For the last 20 minutes, it exchanges air.
However, if the outdoor temperature* is too
high or too low (see configuration
parameters 3 and 4), the unit recirculates
air during the last 20 minutes.
N
ORMAL MODE (MIN)BOOST MODE (MAX)RECIRCULATION MODE (RE-CIRC)OFF MODE
The unit is off.
The outdoor temperature*
is not displayed.
Off in
Auto mode
Air exchange in
Auto mode
Air recirculation
in Auto mode
AUTOMATIC MODE (AUTO)
PRESS THIS BUTTON TO
ACCESS CONFIGURATION PARAMETERS
(SEE SECTION 6.4).
•PRESS EITHER BUTTON TO CHANGE
CONFIGURATION SETTING
(SEE SECTION 6.4).
•PRESS BOTH BUTTONS TO RESET THE FILTER
COUNTER OR PREFILTER COUNTER.
PRESS THIS BUTTON TO
SWITCH MODE
(SEE SECTION 6.3).
* The outdoor temperature reading is taken from the unit
FRESH AIR
FROM OUTSIDE
port; due to the lenght of the insulated duct, the reading
is slightly different from the real outside temperature.
