The Rear Panel
This section describes the rear panel components of the Switch 2000 TR. Figure 1-5 shows the rear panel.

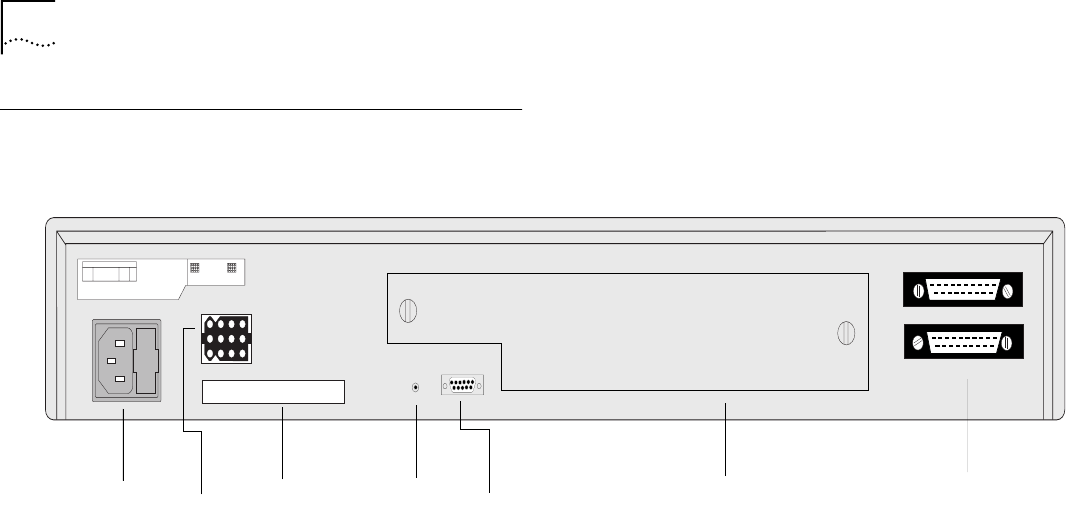

Figure 1-5 Switch 2000 TR Rear Panel
* Refer to the appropriate module installation manual for more information.
IEC Power Socket
and Fuse Holder
Redundant Power
System Connector
Serial Number
Optional Slide-In Module Slot*
Reset
RS-232 Console
Reset Button
High-Speed Cascade Connectors
