Cisco TelePresence System 3200

OL-14521-01

Chapter 7 Building the Second Row Table Assembly

Parts List

Step 35 Attach the privacy panel alignment bracket to the underside of table section 4.

Note If you are building a Reduced Configuration table (four tabletops instead of six), continue to Step 38

after completing this step.

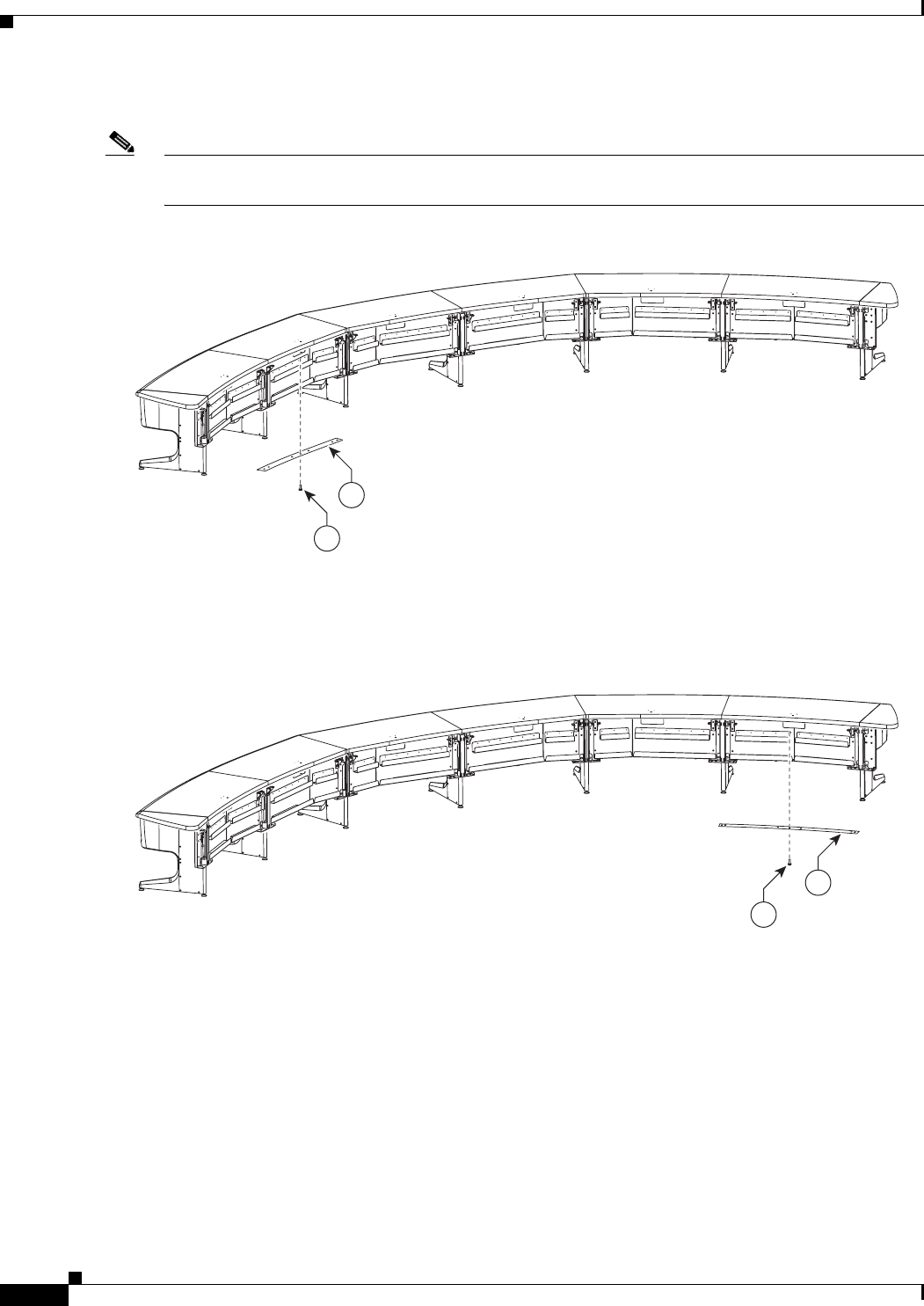

Figure 7-35 Section 4 Privacy Panel Alignment Bracket

Step 36 Attach the privacy panel alignment bracket to the underside of left table section 5.

Figure 7-36 Left Section 5 Privacy Panel Alignment Bracket

35

25

204128

35

28

204129
