3-3
PoleVault Systems Installation • Optional Accessory Installation
LR
LR
LR
AUX AUDIO
INPUT 5
LINE OUT
PAGING
SENSOR
DO NOT
GROUND
OR SHORT
SPEAKER
OUTPUTS
RS-232 MLC/IR
2/4/8
Ohms
CLASS 2 WIRING
AMPLIFIED AUDIO OUT
VOL/MUTE
Tx Rx IR 12V
10V 50mA
CONTROL

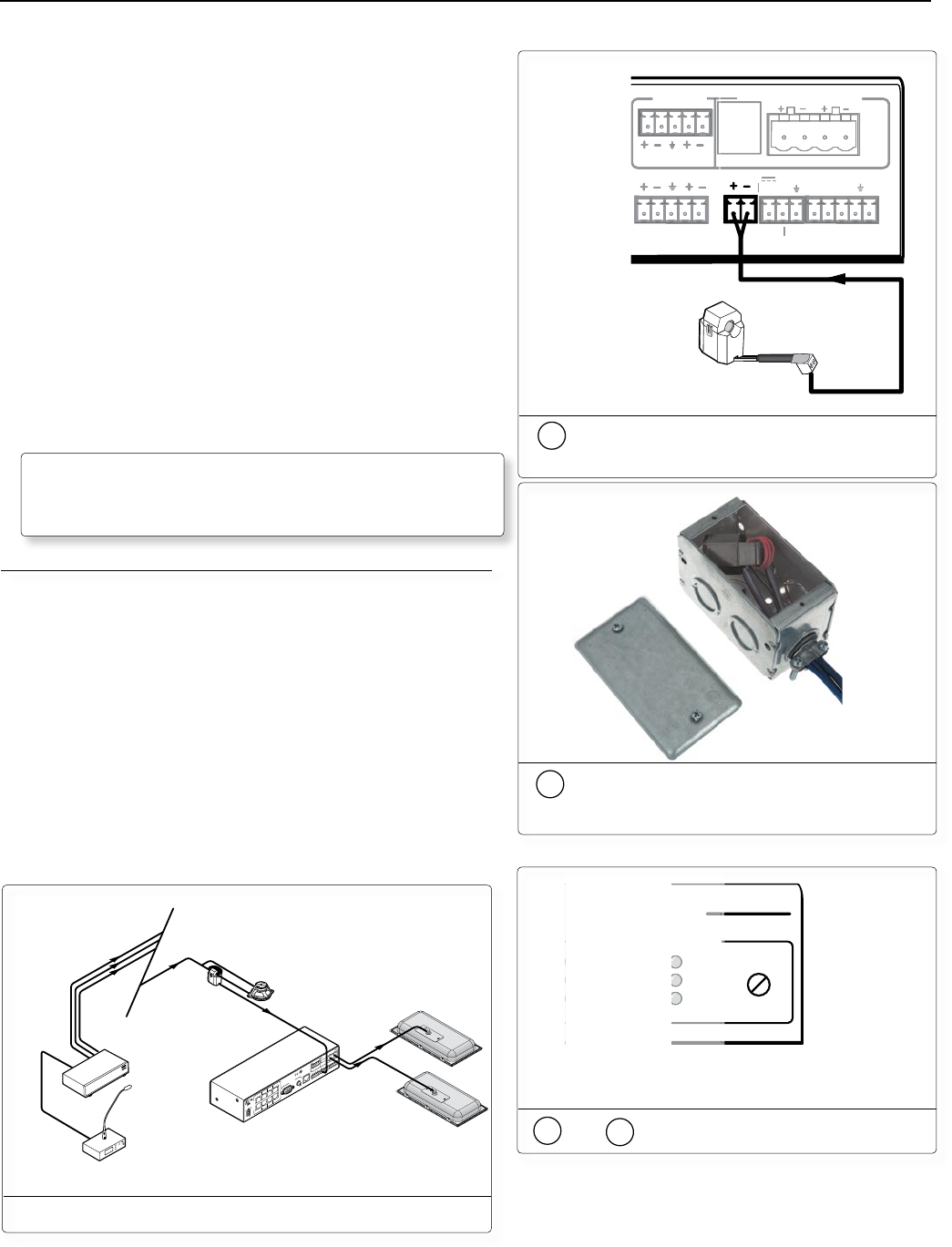

Connect the Priority Page Sensor to
the Paging Sensor port on the switcher
5. Close and latch the top of the Priority Page Sensor.
Reconnect the speaker cable to the speaker.
6. Strip 3/16 inches of insulation from each conductor on the
bare wire end of the remaining blue sensor cable. Do not tin
the leads. Feed the wire into the junction box (clamping it
down if necessary) and connect the wires to the 2-pole captive
screw connector on the PVS 305SA. Polarity need not be
observed.
7. If a junction box is being used in a plenum space, ensure the
sensor and all wires fit inside the box (as shown at right). All
cables leaving the box must be plenum rated. Tighten the
cable clamp and secure the lid to the junction box.
N
To enable the switcher’s paging sensor port, use the
MediaLink Switchers Configuration program (for MLS and
PoleVault Switchers PVS), available at www.extron.com.
Testing and Adjustment Procedure
The fully installed system is shown below To test that the
classroom audio is muted when a PA system announcement (page)
occurs:
1. Turn the classroom audio on.
2. Speak into the PA system microphone. The classroom audio
should be muted while the PA system page occurs and be
restored when the page ends.
3. If the program fails to mute the classroom audio during a
page, turn the Sensitivity adjustment, on the front panel of
the PVS 305SA, clockwise.
4. If the classroom audio is muted without a page occurring,
turn the Sensitivity adjustment counterclockwise
Ensure the sensor and wires fit
completely inside the junction box
before attaching the cover
L R
L R
L
R
AUX AUDIO
INPUT 5
LINE OUT
VL RECEIVER
PAGING
SENSOR
DO NOT GROUND
OR SHORT
SPEAKER OUTPUTS
1B RGB
1A RGB
2B RGB
2A RGB
3B RGB
/VIDEO
4B RGB
/VIDEO
3A RGB4A RGB
I
N
P
U
T
S
RS-232 MLC/IR
DC VOL
2/4/8 Ohms
AMPLIFIED AUDIO OUT
VOL/MUTE
TxRx IR12V
10V
POWER
PLENUM RATED UL 2043
US
LISTED
17TT
AUDIO/VIDEO
APPARATUS
®
RGB
VIDEO
OUTPUTS
CONTROL
N15779
12V
5A MAX
Ceiling Mounted
Paging Speaker
Paging System
Priority
Page
Sensor
ClassroomAdmin Building
To Classroom
Paging Speakers
Sensor
Output
Paging
Sensor
Input
PVS 305SA
PoleVault Switcher
FF 120
Flat Field
Speakers
Adjusting sensitivity knob:
Clockwise to increase
Counterclockwise to decrease
PVS 305SA
POLEVAULT SWITCHER
PEAK
NORMAL
SIGNAL
AUDIO LEVEL ADJUST
PAGING
SENSOR
SENSITIVITY
VOICELIFT
MIC
PEAK
NORMAL
SIGNAL
P
and
Sensitivity knob adjustment
Typical paging system with the PVS 305SA switcher
