PoleVault Systems Installation • Reference Information
4-3
Reference Information, cont’d
Power Supply
(included with
PVS switcher)
weight 0.9 lbs (0.4 kg)
Extron
UPB 25
Universal Projector
Mounting Bracket
weight 3.7 lbs (1.7 kg)
Total weight
(without projector
or electrical boxes)*
14 -16 lbs (6.4 -7.3 kg)
* Projector weight must not
exceed 25 lbs (11.3 kg)
PVS 305SA
POLEVAULT SWITCHER
INPUT SELECTION
1
2
PEAK
NORMAL
SIGNAL
CONFIG
3
4
5
AUX AUDIO
AUDIO LEVEL ADJUST
PAGING
SENSOR
SENSITIVITY
VOICELIFT
MIC
PEAK
NORMAL
SIGNAL
INPUT
Extron
PMK 550
Easy Installation
Pole Mount Kit
weight 2.4 lbs (1.2 kg)
Extron
PCM 340
Projector Drop Ceiling Mount
(including Slotted Projector
Mount Pole)
weight 4.5 lbs (2.0 kg)
Extron
PVS 305SA
PoleVault
®
Switcher
weight 2.5 lbs (1.1 kg)

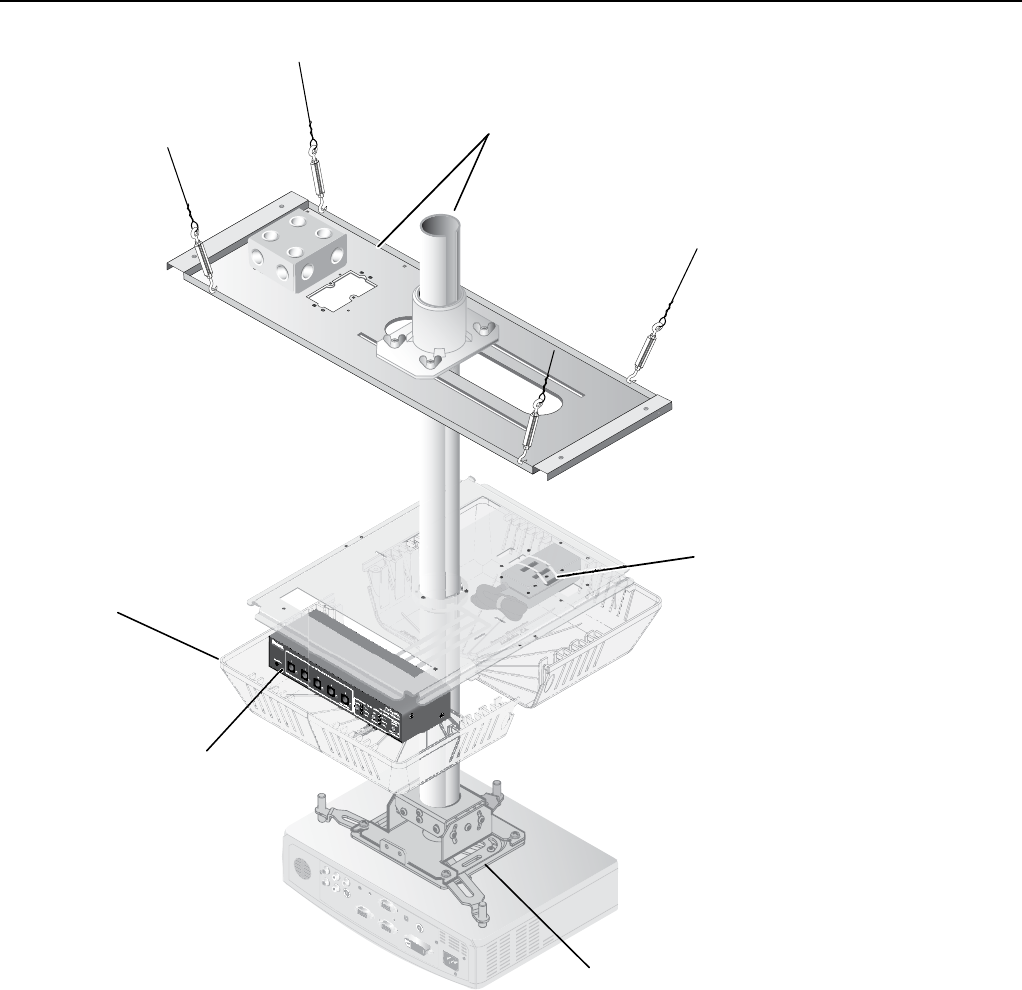

Ceiling mount installation diagram (with item weights) for PoleVault System
