Advanced Configuration Page
The Advanced Configuration page provides options that are not frequently changed.
The page is is always available, but options are dimmed depending on the current user
privileges. It provides initial setup and administrator level configuration.
Figure 30. Advanced Configuration Ribbon
Connection
The Connection Settings page allows configuration of parameters related to the LAN
(Ethernet) and serial ports.
Ethernet Settings Network Port Mapping
Serial RS-232 SettingsEthernet Diagnostics
Use DHCP
(Obtain IP address automatically)
IP Address:
Subnet Mask:
Default Gateway:
DNS Server:
SFTP:
Host Name:
Link Local: 169.254.4.247
MAC Address: 00-05-A6-0A-12-73
Reset to Default
Seria
Pass-t
roug
:
Mode:
Address to ping:
Save Cancel
Reset to Default
CancelSave
Reset to Default
Port Enable
Reset
Reset
Reset
Reset
Reset
Reset
Reset
SIS (SSH):
Telnet (Extron SIS):
HTTP:
SNMP:
HTTPS/SSL:
Baud Rate:
Stop Bits:
Bits:
Parity:
SIS
9600
1
8
None
22022
22023
23
80
161
443
Ping
10.13.193.168
255.255.0.0
10.13.0.100
10.1.0.7
SMD-101-0A-12-73

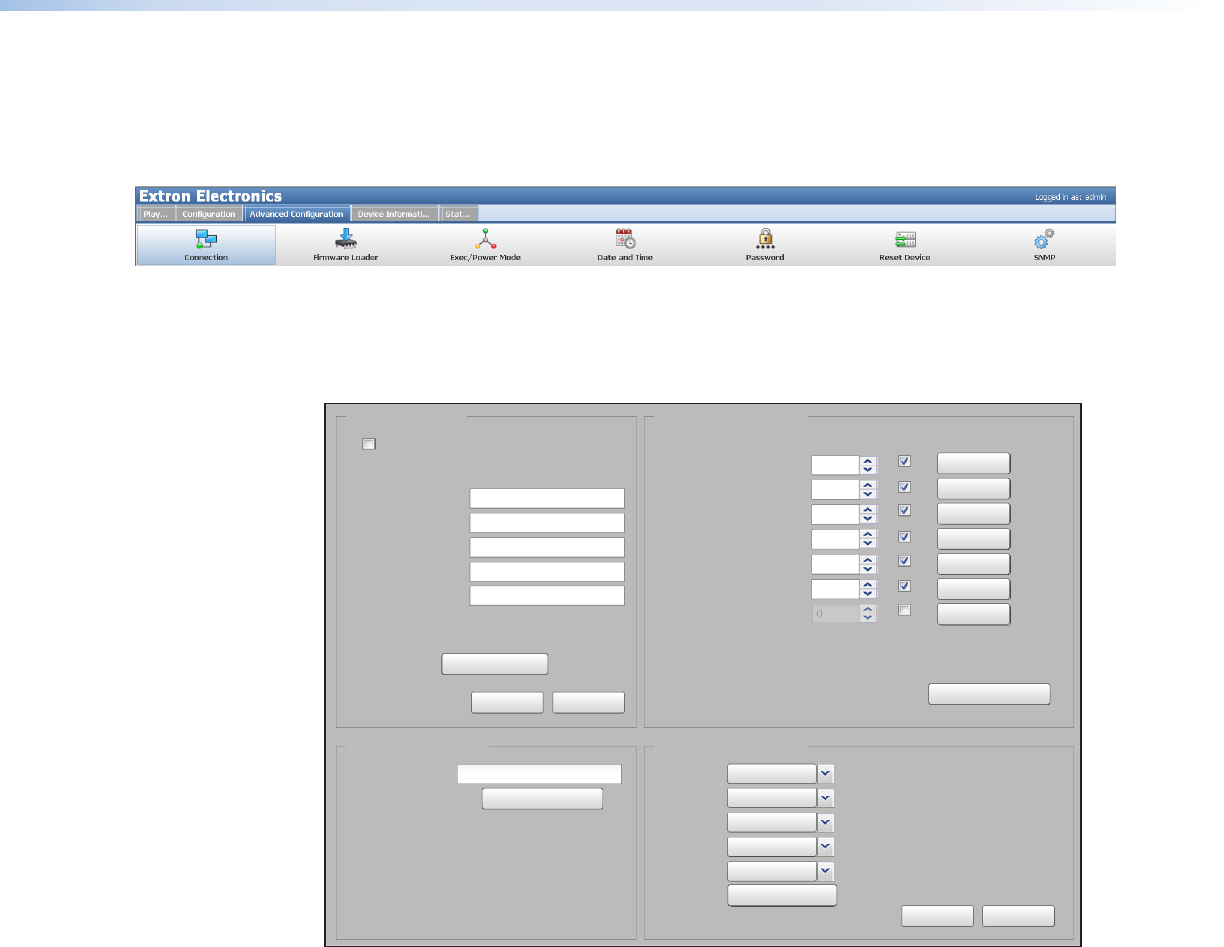

Figure 31. Connection Settings Page
Ethernet Settings panel
This panel provides basic ethernet configuration including:
• Use DHCP — Click the checkbox to enable DHCP. The IP Address, Subnet Mask,
Default Gateway, and DNS Server fields dim.
• IP Address: — Under DHCP control, this field displays the assigned IPaddress.
Otherwise, enter a static IP address here.
• Subnet Mask: — Under DHCP control, this field displays the assigned SubnetMask.
Otherwise, enter a mask here.
• Default Gateway: — Under DHCP control, this field displays the assigned default
gateway address. Otherwise, enter the default gateway address here.
• DNS Server: — Under DHCP control, this field displays the assigned DNSServer
address.
• Host Name: — Enter a name for the device here. The name assists identification.
• Link Local: — An IP address automatically negotiated by the SMD101 when not
assigned a static IP address and DHCP is disabled, or when DHCP is enabled but a
DHCP server is not found.
