SW DVI A Series • Operation
Operation, cont’d
3-10
SW DVI A Series
9. On the Choose Firmware File window, double-click on
the new rmware le to open it. The Choose Firmware
File window closes, and the path to the selected rmware
le is displayed in the “Select a rmware le” eld on the
rmware le selection screen.

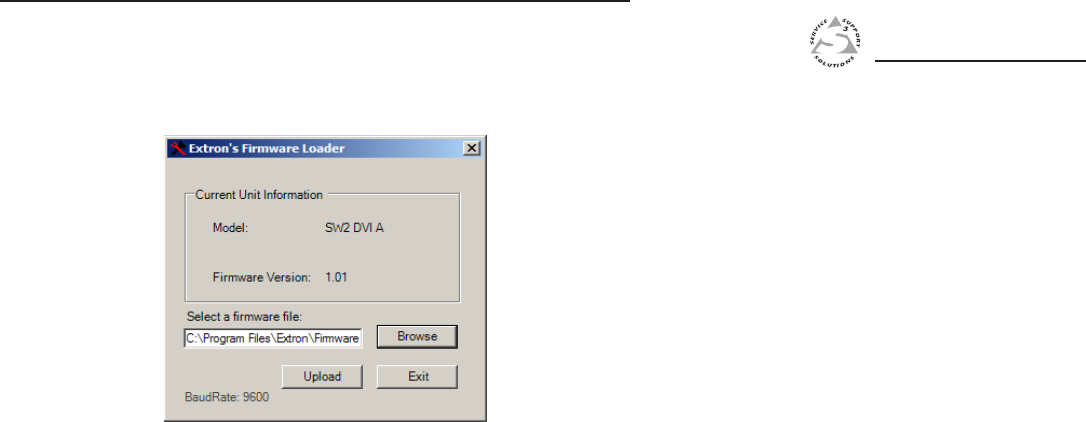

10. Click the Upload button. A status bar, which shows the
progress of the upload, appears in the Firmware Loader
window. The rmware upload to the switcher may take
several minutes. Once the status bar has progressed fully
from left to right, the rmware loader utility resets the
switcher.
In addition, messages appear on the rmware le selection
window indicating when the unit is uploading the
rmware, then resetting itself.
When the rmware upload process is completed, the
message “Transfer Complete!” is displayed, and the new
rmware version number appears in the Current Unit
Information eld.
11. Click Exit to close the Firmware Loader.
4
Chapter Four
SIS Configuration and Control
Host-to-Switcher Communications
Using the Command/Response Table
Command/Response Table for SIS Commands
