Drum Kit - Replacing Drum and Transfer Assembly
4-26 Ordering and Replacing Consumables

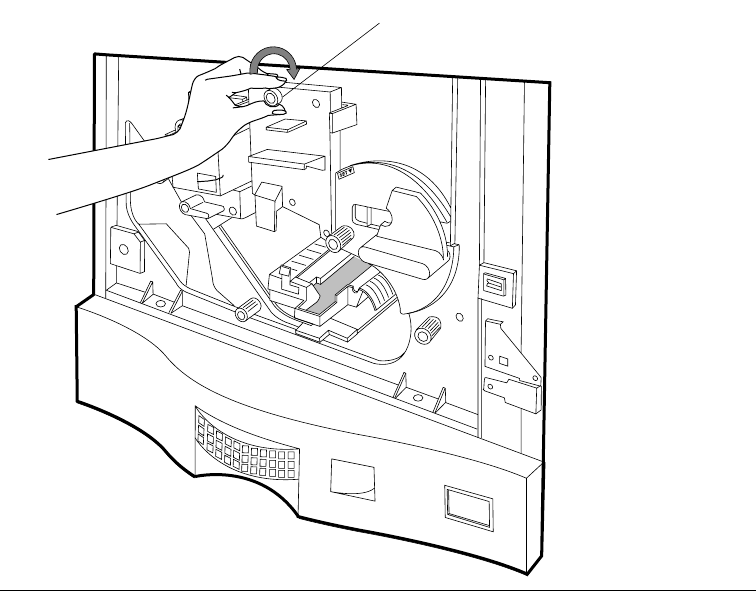

3. Maintain pressure on the drum and finger-tighten the drum locking knob clockwise to
engage the frame and secure the drum as shown in Figure 4-30.
Figure 4-30 Securing the Drum
4. Rotate Lever b1 counterclockwise to lock the drum in place.
Drum locking knob
LTR
