Periodic Cleaning (When Replacing Drum)
5-8 Maintenance
4. Use the supplied blower brush, stored in a pocket inside the front door, to clean the
transfer assembly wire (see Figure 5-8.) Move the brush back and forth across the wires
while quickly squeezing the rubber handle. This blows air to help remove toner and
paper dust. Turn the transfer assembly over so the opposite side can be cleaned in the
same way, and do so. Set the transfer assembly aside in a safe location.

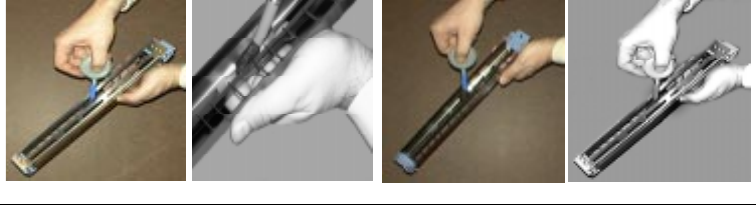

Figure 5-8 Cleaning the Transfer Assembly
