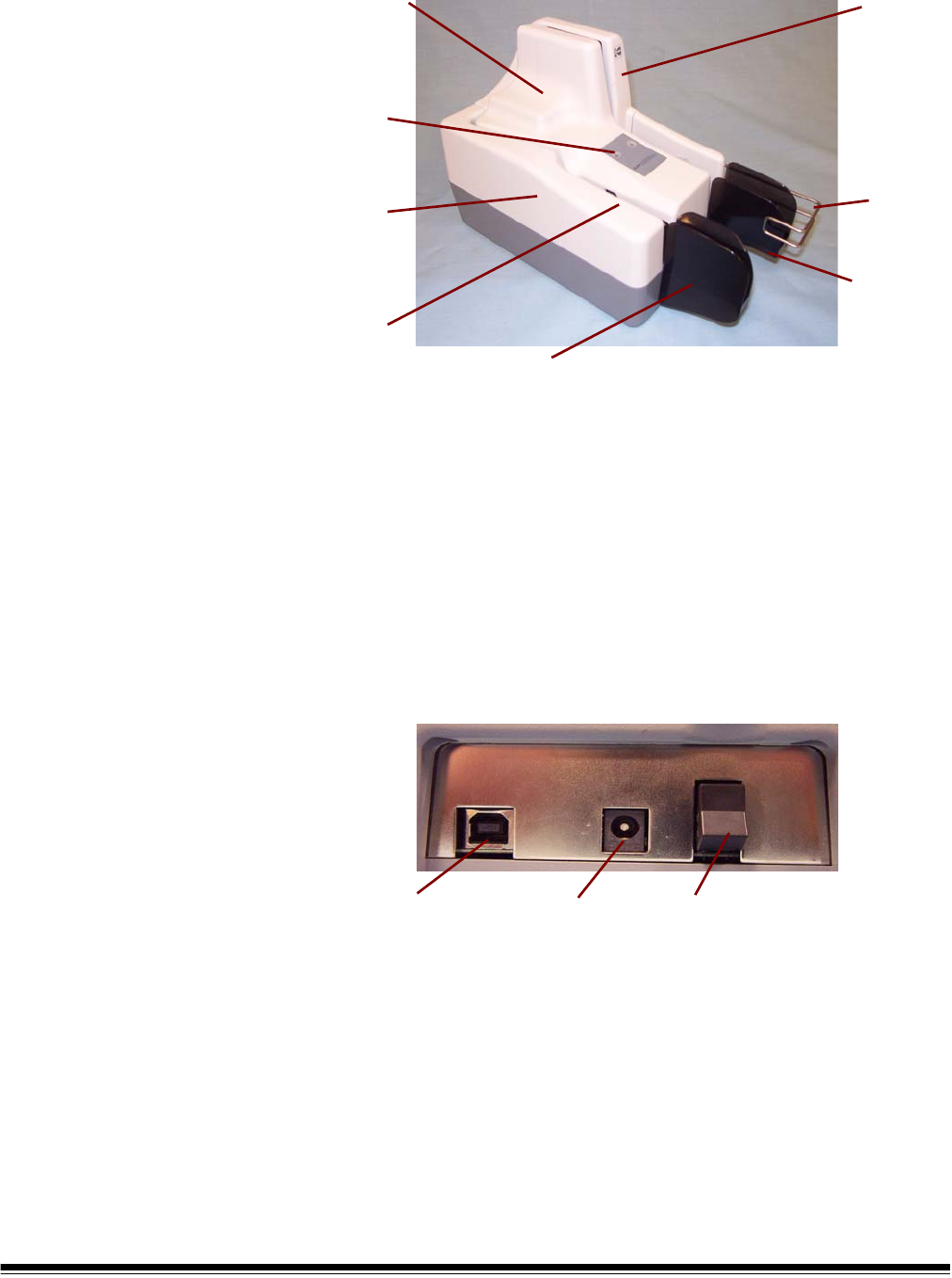

Scanner components Front view
Automatic feeder and input tray
— depending on the document
thickness and condition, holds up to 50 documents. Place documents in
the input tray for scanning (
i6060 and i6090 Scanners only).
Indicator lights (LEDs) — illuminates or flashes indicating scanner
status. See Chapter 5, “Indicator lights” for more information.
Exit tray/Exit stop wire — collects the scanned documents.
Scanner covers — the scanner has three scanner covers (top, side
and back covers) which can be removed for maintenance or clearing
document jams.
Back view
USB port
— connects the scanner to the PC.
Power port — connects the power cord to the scanner.
Power switch — turns the scanner on and off.
Automatic
feeder
Indicator
lights
Exit tray
Exit
stop
wire
Scanner top
cover
Side cover
Back
cover
Input tray
USB port
Power port
Power switch
