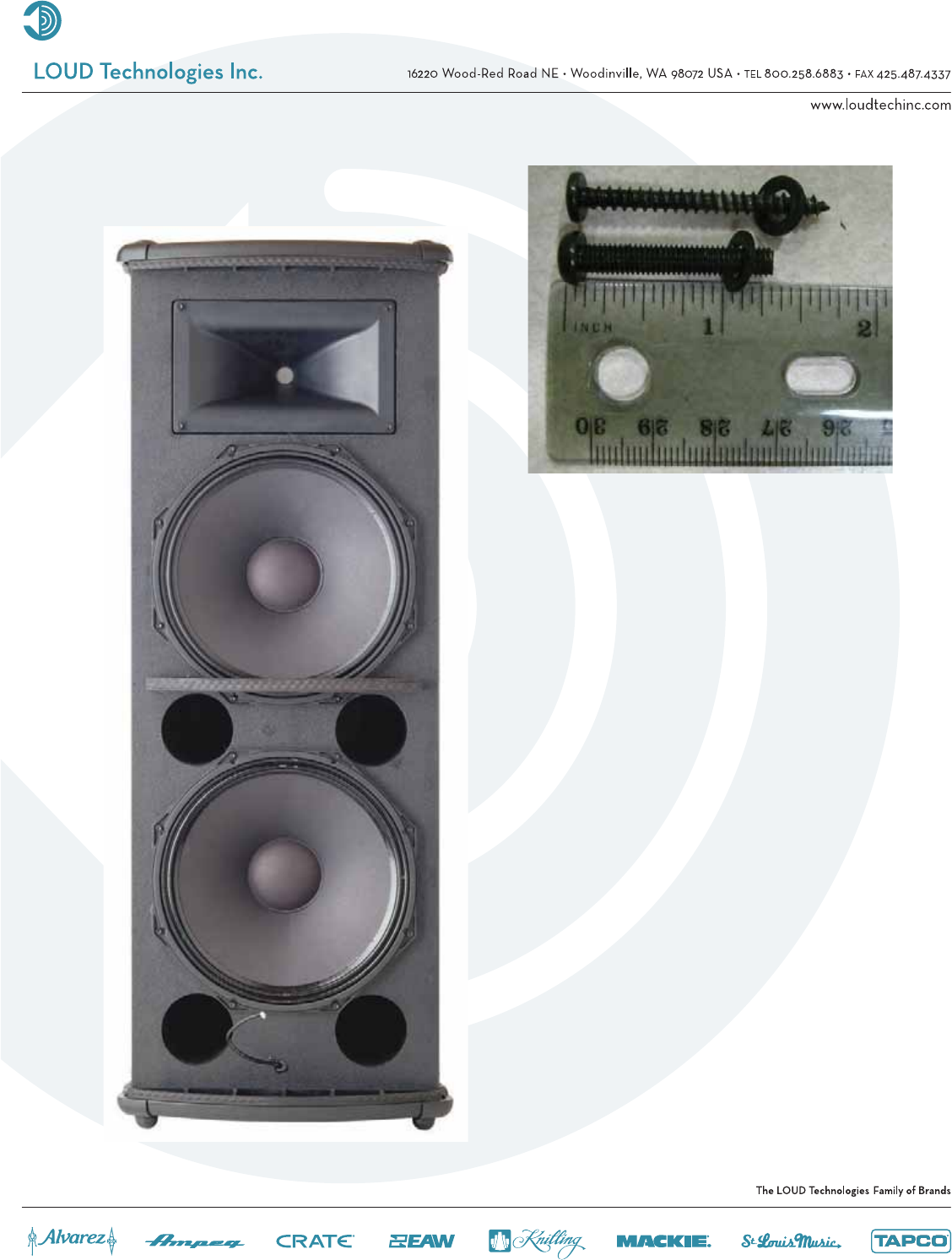

Top woofer replacement:
1
Follow steps 1-4 of the led PCB
replacement instructions, as the grill will
need to be removed in order to access
the top woofer.
2*
Eight screws and fl at washers need to
be removed from the woofer using the
phillips head screwdriver.
3
Keep the eight screws and fl at washers
in a safe place. Note: There are two
different screws that connect the woofer
to the cabinet.
1
2
3
4
5
6
7
8
screws 1-4
screws 5-8
*
The grill support (located just above
screws 7 and 8) does not need to be
taken off in order to remove and replace
the top woofer. However, it would
certainly make the repair slightly more
manageable. Directions for removing the
grill support may be found on page 9.
