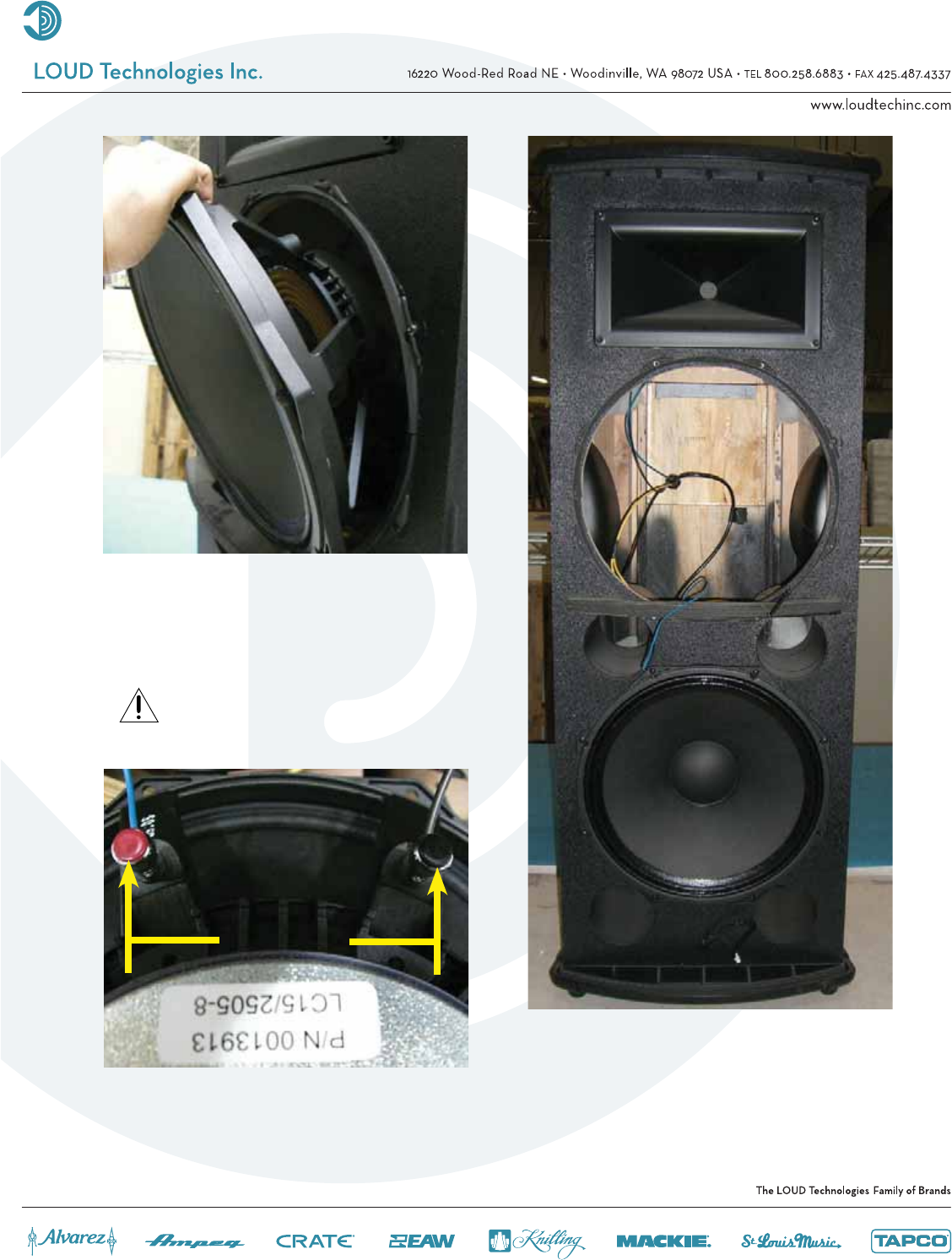

Top woofer replacement continued:
5
The positive (solid blue) and negative
(solid black) cables are still attached to
the woofer terminals. Remove the cables
from their terminals simply by pushing
down on the terminal and pulling out the
cable.
Push down
+
-
6
This is what the SR1522z looks like with
the grill and top woofer removed. Place
the new woofer (part #0013913) where
the old one was. Follow the same steps
as above, but backwards 5 to 1. Power
up the SR1522z and the new woofer
should now be pumping out glorious
lows. Awesome, you just replaced a 15”
woofer!
4
Carefully begin to remove the woofer.
A fl at head screwdriver may aid in
loosening the woofer by prying between
it and the cabinet. Hold the woofer
in place with one hand while prying
around the edge with your free hand.
Caution: The woofer is approximately
11 pounds with the weight unevenly
distributed.
