CORRECT REPLACEMENT
OF THE BURNERS

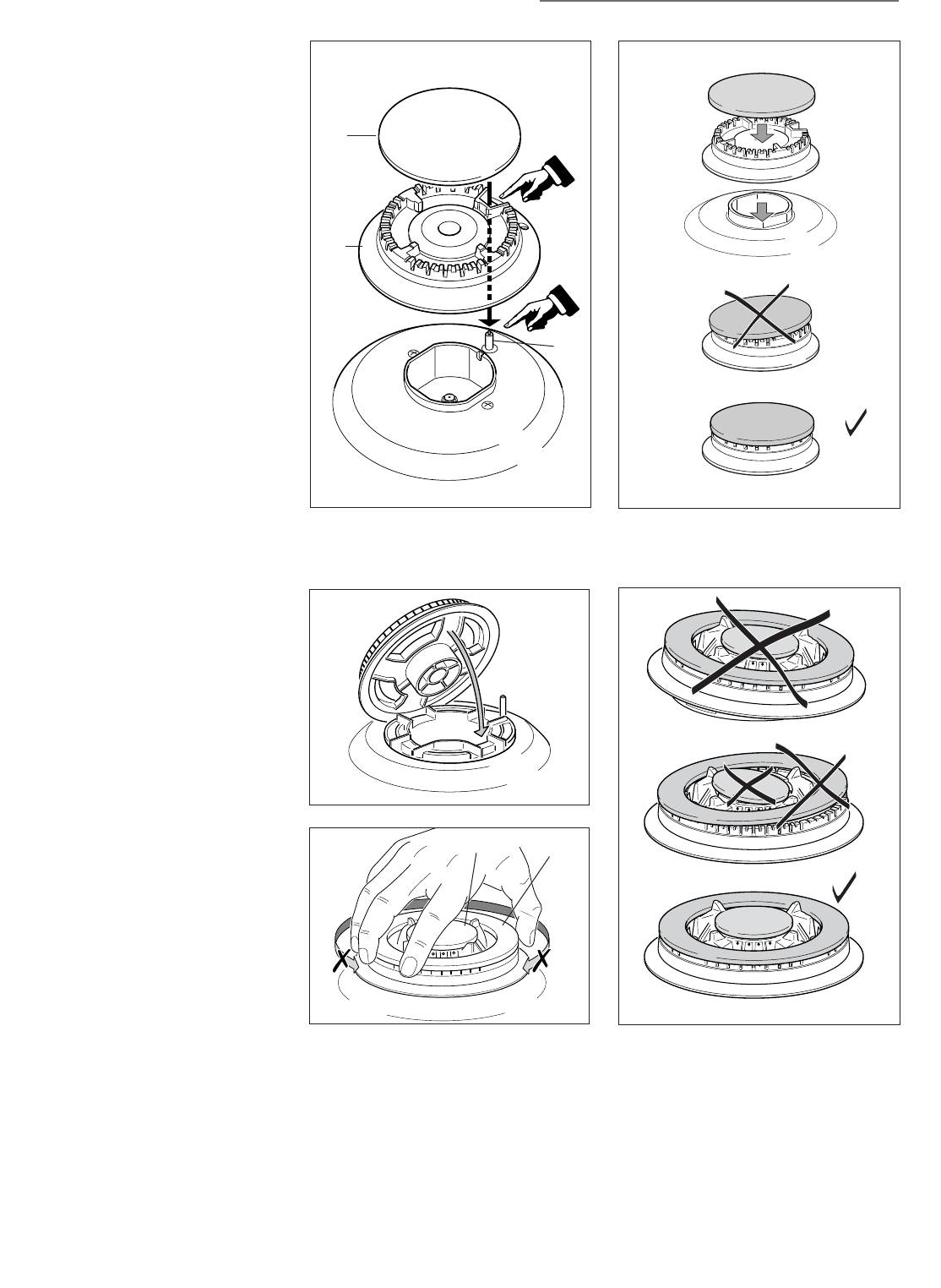

It is very important to check that the
burner flame spreader “F” and the cap
C” have been correctly positioned (see
figs. 5.1 and 5.2 ).
Failure to do so can cause serious
problems.
In appliances with electric ignition, check
that the electrode “S” (fig. 5.1) is always
clean to ensure trouble-free sparking.
The ignition plug must be very
carefully cleaned.
CORRECT POSITION OF
TRIPLE RING BURNER
The triple ring burner must be correctly
positioned (see fig. 5.3); the burner rib
must be fitted in their housing as shown
by the arrow.
The burner correctly positioned must not
rotate (fig. 5.4).
Then position the cap A and the ring B
(fig. 5.4 - 5.5).
Fig. 5.2
Fig. 5.1
S
F
C
Fig. 5.5
Fig. 5.3
A
B
Fig. 5.4
GAS VALVES
In the event of operating faults in
the gas valves, call the Service
Department.
