CAUTION:
If the burner is accidentally extinguished, turn the gas off
at the control knob and wait at least 1 minute before
attempting to relight.
CAUTION:
Gas appliances produce heat and humidity in the environ-
ment in which they are installed.
Ensure that the cooking area is well ventilated following
national/local codes.
features
ᕡ

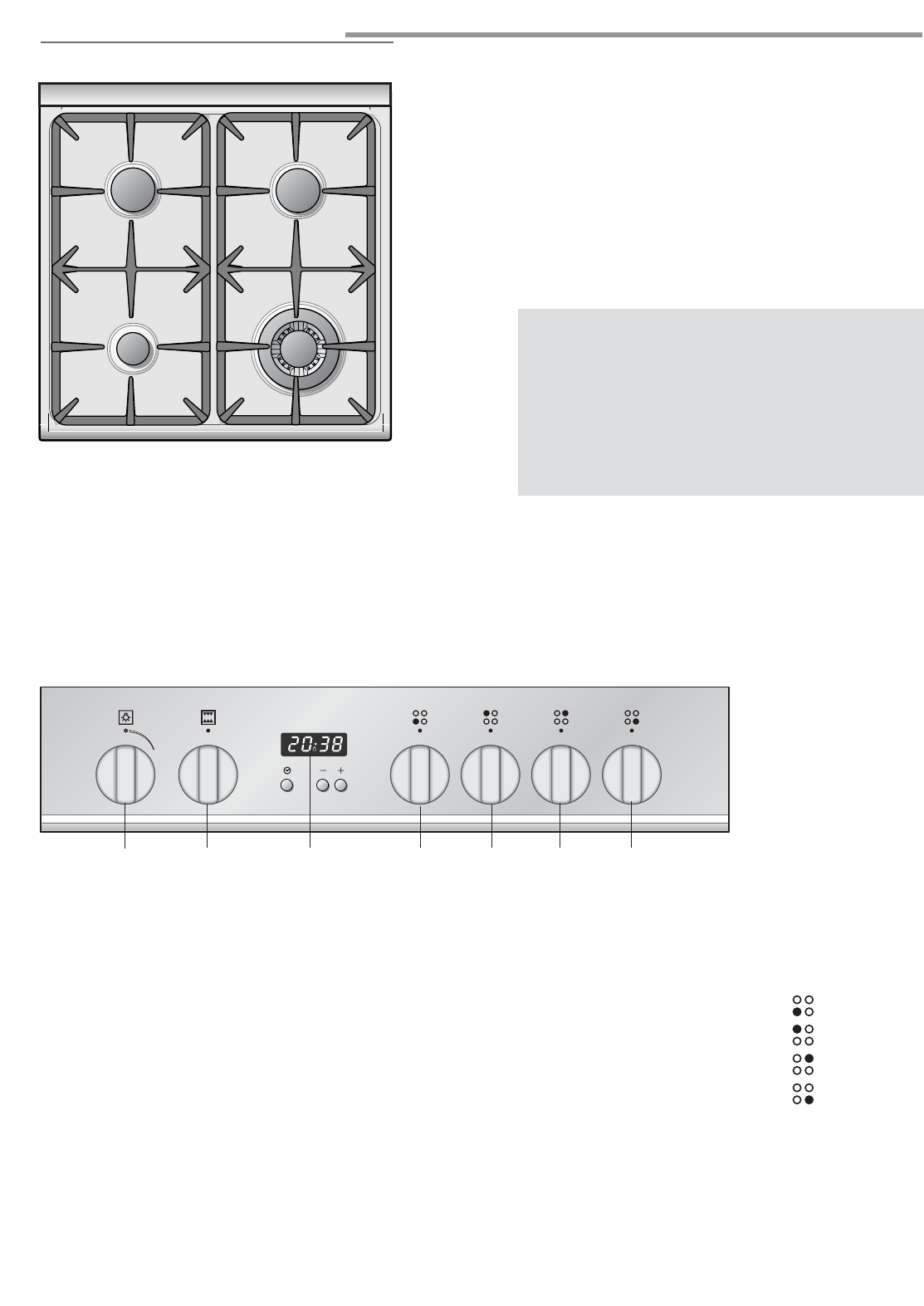

Fig. 1.1
COOKING HOB
1. Auxiliary burner (AUX) - 3500 BTU/hr
2. Left semi-rapid burner (SR) - 6000 BTU/hr
3. Right semi-rapid burner (SR) - 6000 BTU/hr
4. Triple-ring burner (TR) - 12000 BTU/hr
CONTROL PANEL
Note:
- The electric gas-lighting device is incorporated into the
knobs.
9
10 11 6 7
Fig. 1.2
5 8
CONTROLS DESCRIPTION
Cooking hob controls:
5. Front left burner (1) control knob
6. Rear left burner (2) control knob
7. Rear right burner (3) control knob
8. Front right burner (4) control knob
Oven controls:
9. Oven light switch control knob
10. Gas oven/gas broil burner control knob
11. Electronic clock/electronic alarm
2
3
4
1
