19





Afterperformingallthesevisualchecks,reinstall

thebottompaneloftheovencompartmentand

proceedtosettingtheminimumforeach

burner.

STEP6:MINIMUMFLAMEADJUSTMENT



WARNING!

Theseadjustmentsshouldbemadeonlyforuse

oftheappliancewithnaturalgas.Forusewith

liquidpropanegas,

thechokescrewmustbe

fullyturnedinaclockwisedirection.



SURFACEBURNERS

1. Light oneburner ata time andset the knob

totheMINIMUMposition(smallflame).

2. Removetheknob.

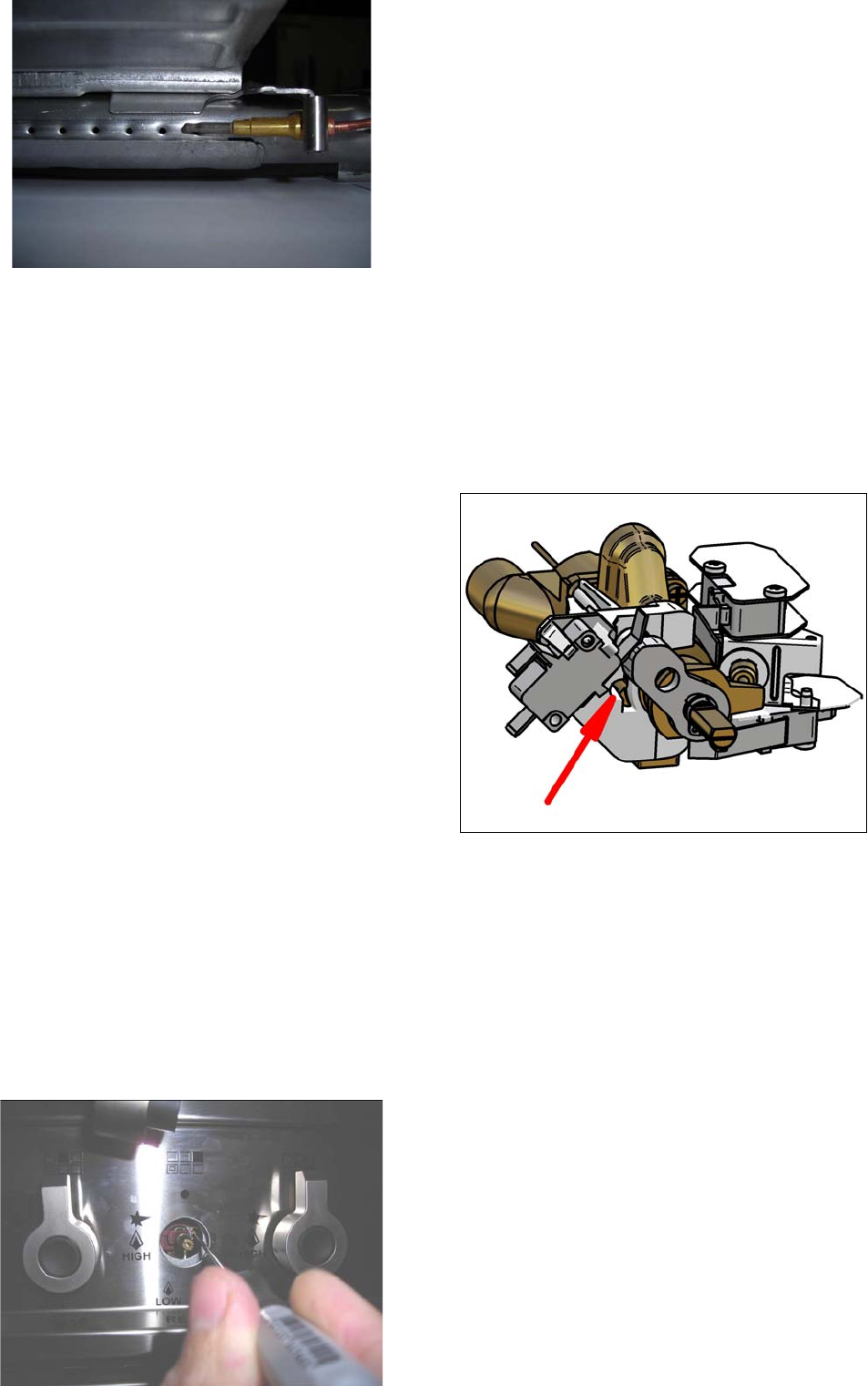

3. The range is equipped with a safety valve.

Usingasmall‐sizeslotted screwdriver,locate

the choke valve on the valve body and turn

thechoke screwto theright orleft untilthe

burnerflameisadjustedtodesiredminimum.

4. Make sure that the flame does not go out

when switching quickly from the MAXIMUM

totheMINIMUMposition.







OVENBURNER

1. Settheoventemperaturecontrolknobtothe

MAXIMUMsetting.

2. Closetheovendoorandoperatetheovenfor

atleast10minutes.

3. Set the knob to the MINIMUM setting

Removetheknob.

4. With a slotted screwdriver turn the choking

screw(by‐pass screw

 atthe left side of the

thermostat bar) and, while observing the

flame at the same time through the bottom

oven porthole, evaluate the consistency of

the flame so  it remains on when switching

quickly from MINIMUM to MAXIMUM

setting.







Broiler burner: the broiler burner always

operates at maximum, therefore no minimum

adjustmentisrequired.












