GASCONNECTION

Allgasconnectionsmustcomplywithnational

andlocalcodes.Thegassupplyline(service)

mustbethesamesizeorgreaterthantheinlet

lineoftheappliance.Thisrangeusesa1/2"NPT

inlet(seedrawingbelowfordetailsofgas

connection).Onallpipejointsuseappropriate

sealant

resistanttogas.

Thisrangecanbeused withNaturalor

LP/Propanegas.Therangeisshippedfromthe

factoryforusewithnaturalgas.

ForLP/propanehouseholdinstallation,the

appliancemustbeconvertedbythedealer,bya

factory‐trainedprofessionalorbyaqualified

licensedplumberorgas

servicecompany.

Gasconversionisimportantforsafeandeffective

useoftheappliance.Itistheresponsibilityofthe

dealerandtheowneroftherangetoperformthe

appropriategasconversionfollowingthe

directionsofthemanufacturer.

THEGASCONVERSIONPROCEDUREISDESCRIBED

INTHISMANUALANDINTHE

PACKAGE

CONTAININGTHECONVERSIONNOZZLES

SHIPPEDWITHEVERYRANGE.

Pleaseprovidetheservicepersonwiththis

manualbeforeworkisstartedontherange.



WARNING!

DONOTUSEANOPENFLAMEWHENCHECKING

FORLEAKS!

Leaktestingoftheapplianceshallbeconducted

accordingtothemanufacturer'sinstructions.

Beforeplacing

theovenintooperation,always

checkforleakswithsoapywatersolutionor

otheracceptablemethod.



MANUALSHUT‐OFFVALVE

THISVALVEISNOTSHIPPEDWITHTHEAPPLIANC

ANDMUSTBESUPPLIEDBYTHEINSTALLER.

Themanualshut‐offvalvemustbeinstalledin

thegasservicelinebetweenthe

gashook‐upon

thewallandtheapplianceinlet,inaposition

whereitcanbereachedquicklyintheeventofan

emergency.

InMassachusetts:A'T'handletypemanualgas

valvemustbeinstalledinthegassupplylineto

thisappliance.



FLEXIBLECONNECTIONS

In case of

 installation with flexible couplings

and/or quick‐disconnect fittings, the installer

must use a heavy‐duty, AGA design‐certified

commercial flexible connector of at least 1/2"

(1.3 cm) ID NPT (with suitable strain reliefs) in

compliance with ANSI Z21.41 and Z21.69

standards.

In Massachusetts: The unit must be installed

witha

36"(3‐foot)longflexiblegasconnector. 

InCanada:useCAN1‐6.10‐88metalconnectors

forgasappliancesandCAN1‐6.9M79quick

disconnectdeviceforusewithgasfuel.



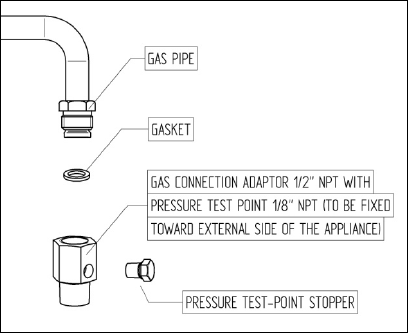

PRESSURETEST‐POINTSTOPPERVALVE

To avoid gas leaks, the pressure test‐point

stoppervalveandgasketsupplied

withtherange

mustbeinstalledonthegasfittingatthebackof

therangeaccordingtothediagrambelow.







 


