4. With cabinet doors open, place line selected on mounting template even with
the bottom front edge of your cabinet, and tape in place against the lip (H).
5. With the paper securely taped in place against the lip, fold the rest of the
mounting template back against the underside of cabinet surface, bending
it to remain flush against both the back of the lip and the underside of the
cabinet (J).
Important:Donotalignscrewholesontemplatewiththepartitionbetween
cabinets,asthiswillpreventyoufrominstallingtheapplianceproperly.Payclose
attentiontowherethedrillholeswillbesetsoasnottodamageyourcabinets
duringmounting.Drillingthroughyourcabinet’spartitionmaycausedamageto
cabinetsandpreventproperinstallation.
6. Drilling from under the cabinet up, drill holes through the 4 places marked on
the template using a ¼-inch drill bit (seeillustrationE).
Important:Alwaysensureyouaredrillingstraightupthroughthemarked
mountingholeonthetemplate.Drillingatananglemaypreventproper
installationandmaydamagecabinetsifthedrillbitpiercesthepartition.
7. Once holes are drilled, remove tape and mounting template and save template
with your instructions in case you move or wish to remount at a later time.
8. Wipe dust and debris off inside cabinet surface. Also, make sure under side of
cabinet is clean.
9. Place a washer inside the cabinet over each of the 4 holes you drilled.
10. Now, use your ruler or the paper ruler provided to measure the overhang
height, placing your ruler vertically against the underside of the cabinet
behind the overhang. This number determines the number of spacers you
need, using a number of spacers equal to the overhang height.
For example, a 1” overhang would use 2, ½” spacers on each of the
holes(K).
11. Place a washer inside the cabinet over each of the 4 holes you drilled.
12. Drop one of your screws through each of the washers covering the holes
in the cabinet, from inside the cabinet down.
13. Place the appropriate number of spacers determined in step 9 on each
screw to ensure the appliance will be even (L).
Note:If not enough spacers are available, use spacers on rear two screws only.
The front edge of cabinet will provide support for the two front screws.
Note: For spacer installation, you may require assistance in mounting in order to
hold spacers in place while securing the appliance at the same time. If assistance
is not available, use a small clamp to hold the spacers in place while you position
the appliance.
14. Once spacers are set, hold appliance up and tighten screws to secure. Screw
from inside the cabinet down.
Note: Always tighten screws to ensure the appliance does not move or shake
during operation.
15. Pull out cord from cord storage behind appliance and plug into standard
electrical outlet. Extra cord can be fed back into storage or hung over cord
management hook behind unit (seeillustrationF).
Note: If you are connecting this appliance to the receptacle of another
†SpaceMaker appliance such as the toaster oven or coffeemaker, make sure you
can easily unplug the appliance following use.

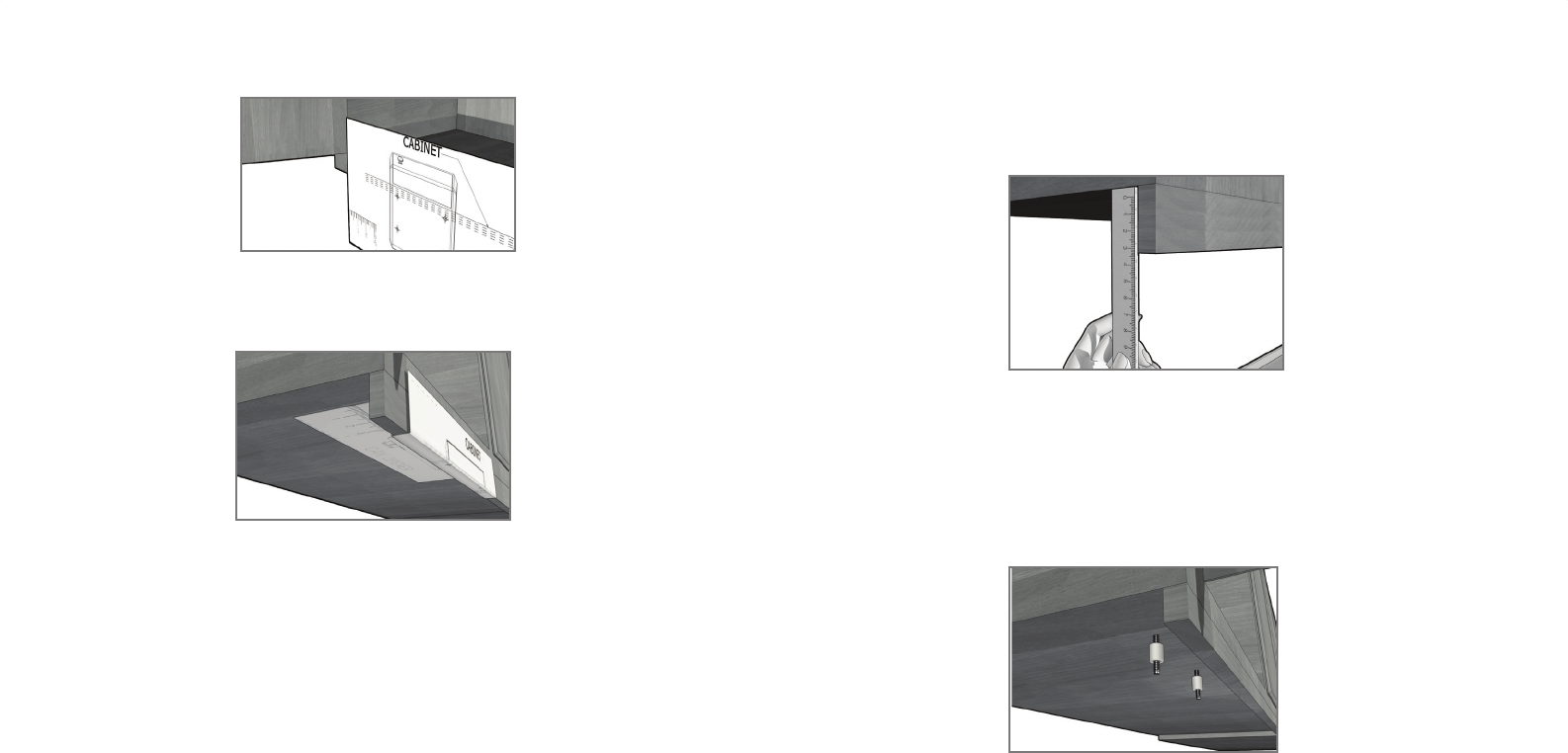

J
