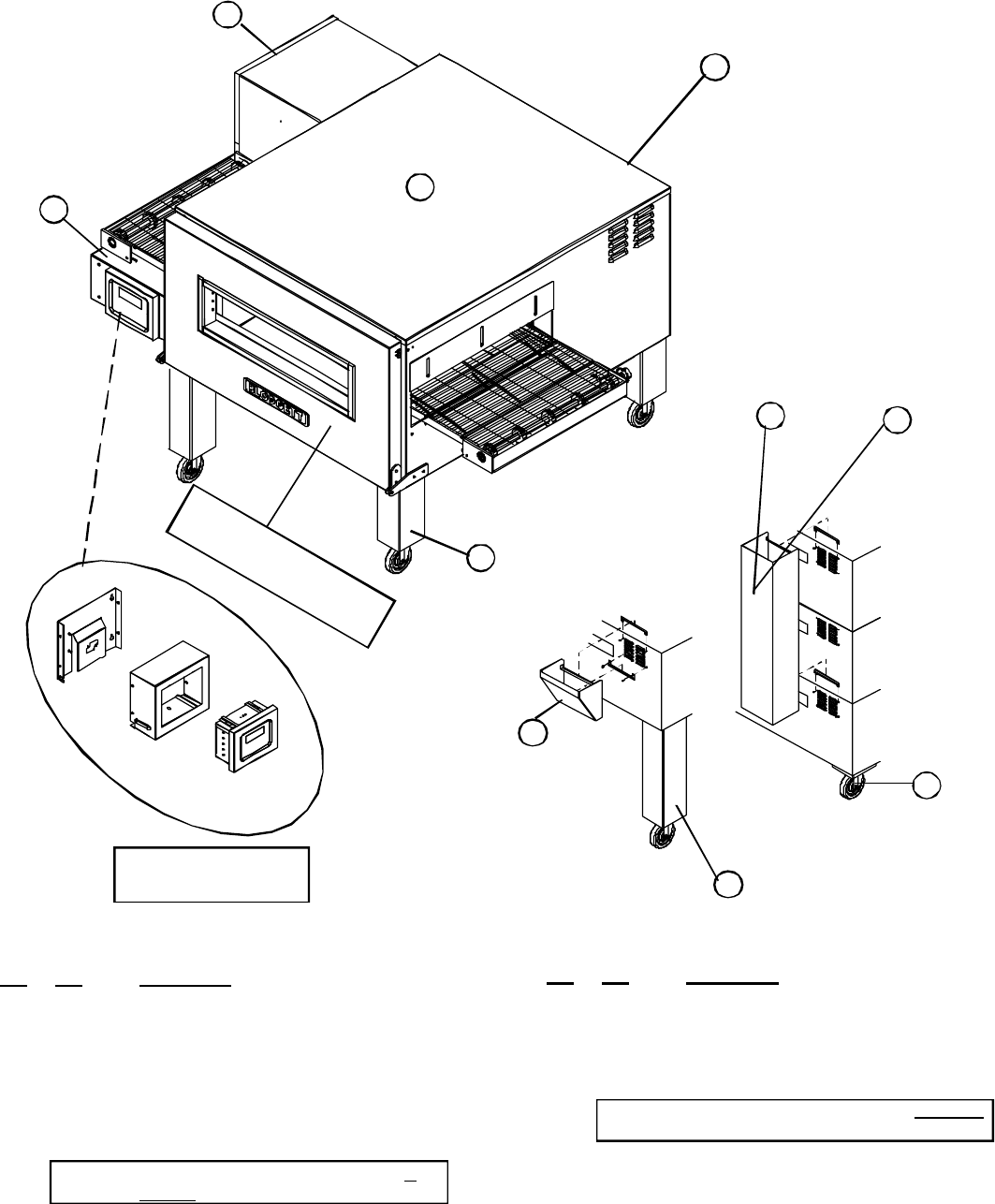

EXTERIOR VIEW & ACCESSORIES
EXPLODED
3
M10254
Access Panel
Assy, Control
Box
4
M10419
Tunnel
(under conveyor)
1
M6220
Body Back
M6255
Body Top
Ref. Part
No. No. Description
1 M6220 Body Back
2 M6255 Body Top
3 M10254 Access Panel Assy, Control Box
4 M10419 Tunnel Assy
5 21391 Legs, Set of 4, 23 1/4" Single Ovens
6 21390 Legs, Set of 4, 17 1/4" Double Ovens
7 22067 Triple Base & casters, Set of 4, Triple Ovens
14444 Casters, Cradle, Triple Ovens
NOTE: Legs or caster kits must be ordered in
addition to your stacking kit. See page 17.
21242 Gas Installation Hose, 48" Quick Disconnect
21826 Gas Installation Hose, 36" Quick Disconnect
2
21391
Legs 23 1/4"
Single Ovens
See page 13 for Door
Components breakdown.
NOTE: See page 12
for Controller breakdown
AUGUST 29, 2001 16 SG2136E & G
7
22067
Triple Base
w/Casters
8
M10582
Chimney Kit
Single Ovens
5
Ref. Part
No. No. Description
M7002 Product Extension 6"
M6997 Product Extension 12"
8 M10582 Chimney Kit, Single Ovens
9 M10583 Chimney Kit, Double Ovens
10 M10584 Chimney Kit, Triple Ovens
NOTE: Chimney Kits must be ordered in additon
to your stacking kit. See page 17.
M10583
Chimney Kit
Double Ovens
9
10
M10584
Chimney Kit
Triple Ovens
OR
21390
Legs 17 1/4"
Double Ovens
6
