AUGUST 29, 2001 4 SG2136E & G

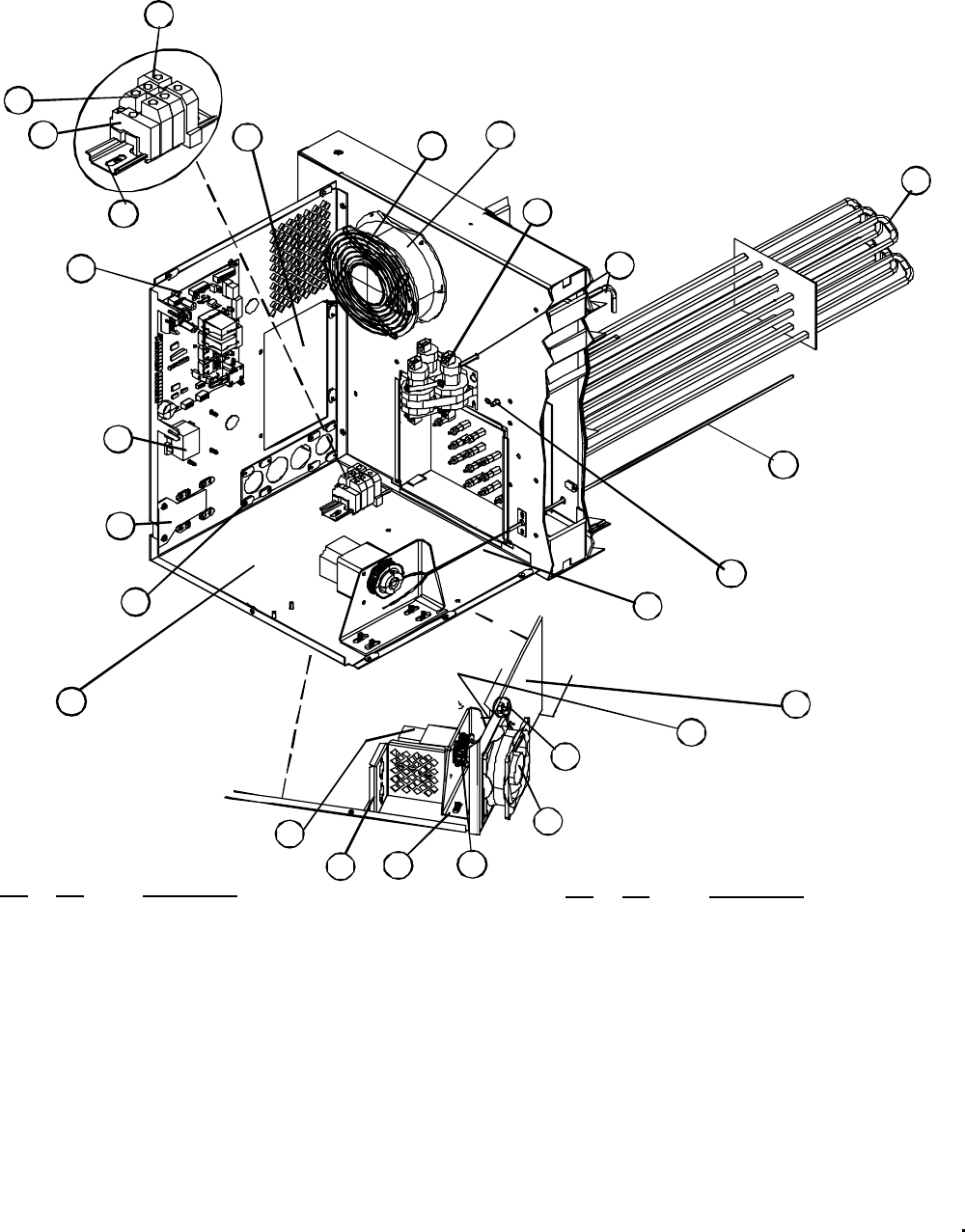

CONTROL BOX - INTERIOR VIEW
ELECTRIC OVENS-DOMESTIC, EXPORT, AND CE
Ref. Part
No. No. Description
1 T0321 Fan Guard, top
2 M9609 Axial Fan, top, 7"
3 M10278 Interface Board
M10589 Interface Plate & Decal Kit (not pictured)
4 R7603 Hi-Limit Thermostat
5 M10479 Block Off Plate, Electric Ovens
6 M10112 Plate, Power Line Adaptor, Electric Ovens
7 M9622 Probe, RTD 20" 100 Ohms
8 R0166 Terminal Ground Block, Qty 1 per oven
9 M4542 Terminal Power Block, Qty 2 per oven
10 R1580 End Stop, Terminal Block, Qty 1 per oven
11 M9477 Din Rail, for Terminal Block mounting
12 M10482 Contactor, 60 Amp, 24V, 3 PH
13 M8991 Probe Well Assy, EGO
14 M10556 Conveyor Drive Motor
15 M10519 Motor Mount Bracket
16 M10512 Pulley, Sprocket
17 M9616 Axial Fan, bottom
18 M0571 Fan Guard, bottom
19 M10277 Access Cover, Control Box
Ref. Part
No.
No. Description
20 M2697 Element, 208V (**Need Kits) 1 PH
20 M2699 Element, 220V (**Need Kits) 1 PH
20 M2698 Element, 240V (**Need Kits) 1 PH
20 M2571 Element, 208V (**Need Kits) 3 PH
20 M2572 Element, 240V (**Need Kits) 3 PH
20 M2574 Element, 240/415V 3 PH EXPORT
20 M2573 Element, 220/380V 3 PH EXPORT
21 M10214 Control Box Bottom
M10471 Control Box, Top Assy, not pictured
See page 6
22 M10486 Pressure Tube Assy
23 M10460 Fuseholder Bracket
24 M10424 Control Box, Lower Panel
25 M10509 Retractable Pin Plunger, Locking
1
T0321
Fan Guard,
top
2
M9609
Axial Fan, top, 7"
20
M2697
M2699
M2698
M2571
M2572
M2574
M2573
Element
3
M10278
Interface
Board
4
R7603
Hi-Limit
Thermostat
5
M10479
Block Off
Plate
14
M10556
Conveyor Drive Motor
15
M10519
Motor Mount
Bracket
16
M10512
Pulley
13
M8991
Probe Well
Assy, EGO
7
M9622
Probe, RTD,
20" 100 Ohms
21
M10214
Control Box
Bottom
R1580
End Stop
10
M4542
Terminal Power
Block, Qty 2
R0166
Terminal
Ground Block
8
M9477
Din Rail
11
9
6
M10112
Plate, Power
Line Adaptor
7
M9622
Probe, RTD,
20" 100 Ohms
19
M10277
Access
Cover, Control
Box
12
M10482
Contactor
22
M10486
Pressure
Tube Assy
17
M9616
Axial Fan,
bottom
18
M0571
Fan Guard,
bottom
24
M10424
Control Box,
Lower Panel
M10460
Fuseholder
Bracket
23
25
M10509
Retractable
Pin, Plunger
