AUGUST 29, 2001 5 SG2136E & G

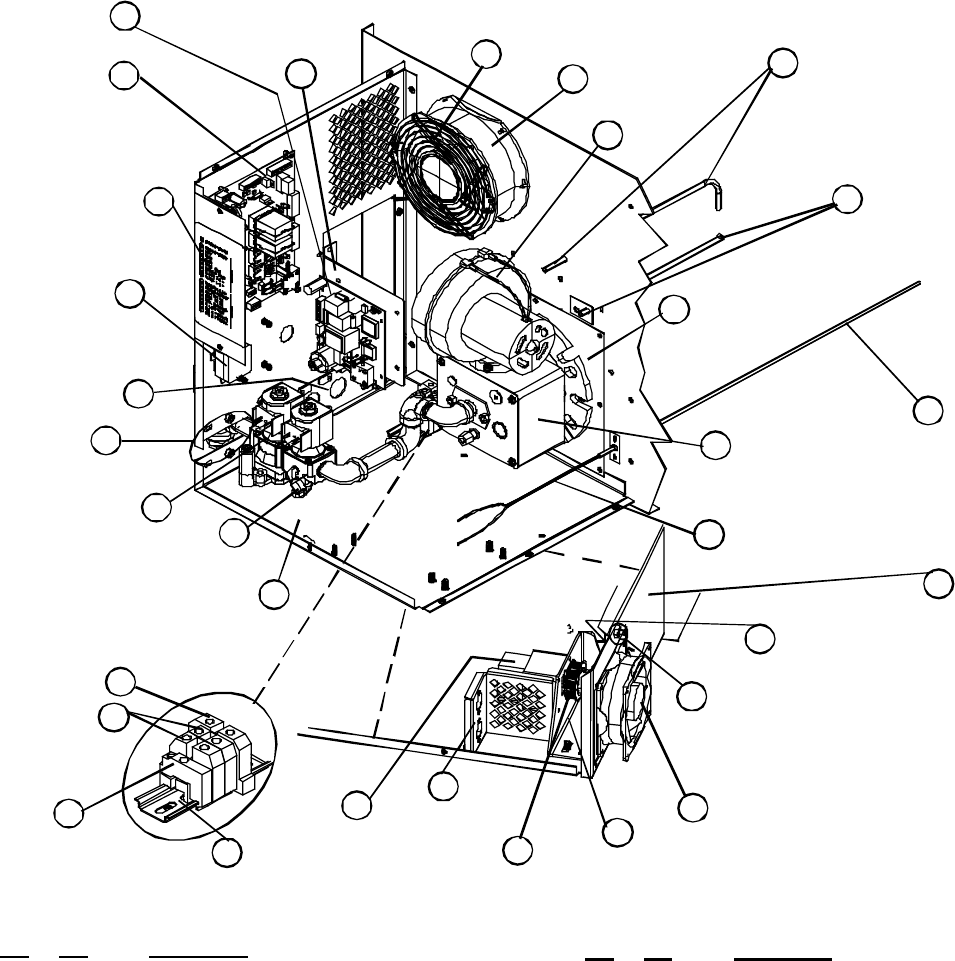

CONTROL BOX - INTERIOR VIEW
GAS OVENS-DOMESTIC, EXPORT, AND CE
1
T0321
Fan Guard,
top
2
M9609
Axial Fan, top, 7"
3
M10278
Interface
Board
6
R7603
Hi-Limit
Thermostat
16
M10556
Conveyor
Drive Motor
17
M10519
Motor Mount
Bracket
18
M10512
Pulley
19
M9616
Axial Fan,
bottom
4
M10279
Ignition
Control
25
M10211
Burner Assy
24
M2027
Burner Plate
Support
9
M9622
Probe, RTD,
20" 100 Ohms
14
M8991
Probe Well
Assy, EGO
M10486
Pressure
Tube Assy
M8999
Gas Valve,
Nat/LP
33488
Flex Tubing
(Mounts here)
Ref. Part
No. No. Description
1 T0321 Fan Guard, top
2 M9609 Axial Fan, top, 7"
3 M10278 Interface Board
4 M10279 Ignition Control Board
5 M10489 Bracket, Ignition Control Board
6 R7603 Hi-Limit Thermostat
7 M10270 Block Off Plate, Gas Ovens
8 M10112 Plate, Power Line Adaptor, Gas Ovens
9 M9622 Probe, RTD 20" 100 Ohms
10 R0166 Terminal Ground Block, Qty 1 per oven
11 R0164 Terminal Power Block, Qty 2 per oven
12 R1580 End Stop, Terminal Block, Qty 1 per oven
13 M9477 Din Rail, for Terminal Block mounting
14 M8991 Probe Well Assy, EGO
15 M10486 Pressure Tube Assy
16 M10556 Conveyor Drive Motor
Ref. Part
No.
No. Description
17 M10519 Motor Mount Bracket
18 M10512 Pulley, Sprocket
19 M9616 Axial Fan, bottom
20 M0571 Fan Guard, bottom
21 M10589 Interface Plate & Decal Kit
22 M8999 Gas Valve, Nat & LP
23 33488 Flex Tubing, 12"
24 M2027 Burner Plate Support
25 M10211 Burner Assy
26 M10460 Fuseholder Bracket
27 M10424 Control Box, Lower Panel
28 M10214 Control Box, Bottom
M10471 Control Box Top Assy, not pictured,
see page 6
29 M10509 Retractable Pin Plunger, Locking
30
M9887 Blower
,
Burne
r
21
M10589
Interface Plate
& Decal Kit
5
M10489
Bracket,
Igniton Control
Board
R1580
End Stop
12
R0164
Terminal Power
Block, Qty 2
11
R0166
Terminal
Ground Block
10
M9477
Din Rail
13
15
8
M10112
Power Line
Adaptor Plate
22
23
30
M9887
Blower Assy
M10270
Block Off
Plate
7
M10214
Control Box
Bottom
28
26
M10460
Fuseholder
Bracket
20
M0571
Fan Guard,
bottom
27
M10424
Control Box,
Lower Panel
9
M9622
Probe, RTD,
20" 100 Ohms
29
M10509
Retractable
Pin, Plunger
