ELECTRICAL CONNECTION
WARNING - THIS APPLIANCE MUST BE EARTHED. CONNECT TO A 230-240V A.C. SUPPLY
ONLY.
Connection to the electricity supply should be made via a properly earthed, readily accessible wall socket
which is adjacent to but not directly above, and not more than 1.25m away from the appliance and capable of
electrical isolation.
The
mains lead should be routed such that it cannot touch hot parts of the cooker i.e. the back panel above a
height of 650mm from the floor.
Should this plug not fit the socket outlet in you
r home it should be cut off and replaced with a suitable plug as
outlined below.
NOTE: The removed plug cannot be used for any other appliance and should therefore be properly disposed of
and not left where children might
find it and plug it into a supply socket - with the obvious consequent danger.
IF THE FITTED PLUG IS REMOVED
The flexible mains lead must be correctly connected as below to a three pin plug of not less than 13 amp
capacity. If a B.S. 1363 fused plug is used, it must be fitted with a fuse which is approved to
B.S. 1362.
IMPORTANT: The wires in the mains lead fitted to this
appliance are coloured in accordance with the following
code:
GREEN AND YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
The power supply cable must be type H05RR-F
As the colours
of the wires in the mains lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal in the
plug which is marked with
the letter E or by the earth symbol
or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or
coloured red.
When wiring the plug, ensure that all strands of wire are securely retained in each terminal. Do not forget to
tighten the mains lead clamp on the plug.
As the appliance must
be earthed, do not use 2-pin sockets outlets, if you are in doubt, consult a qualified
electrician.
Should the mains lead ever require replacement, it is essential that this operation be carried out by a qualified
electrician and should only be replaced with a flexib
le cord of the same size i.e. 1.0mm2 cross sectional area
PVC cable, available from our parts department (see Back Cover).
IF A MOULDED PLUG IS FITTED
In the event of replacing a fuse in the plug supplied an ASTA approved fuse to BS1362 must be fitted.
NOTE: The fuse cover must be refitted when changing the fuse. In the event of losing the fuse cover the
plug
must not be used until a replacement fuse cover has been obtained and fitted. A new fuse cover can be
obtained from your local Electricity Board. The colour of the correct replacement fuse cover is that of the
coloured marks or inserts in the base of the plug.
Make sure that the cable does not become trapped when pushing the cooker into position.

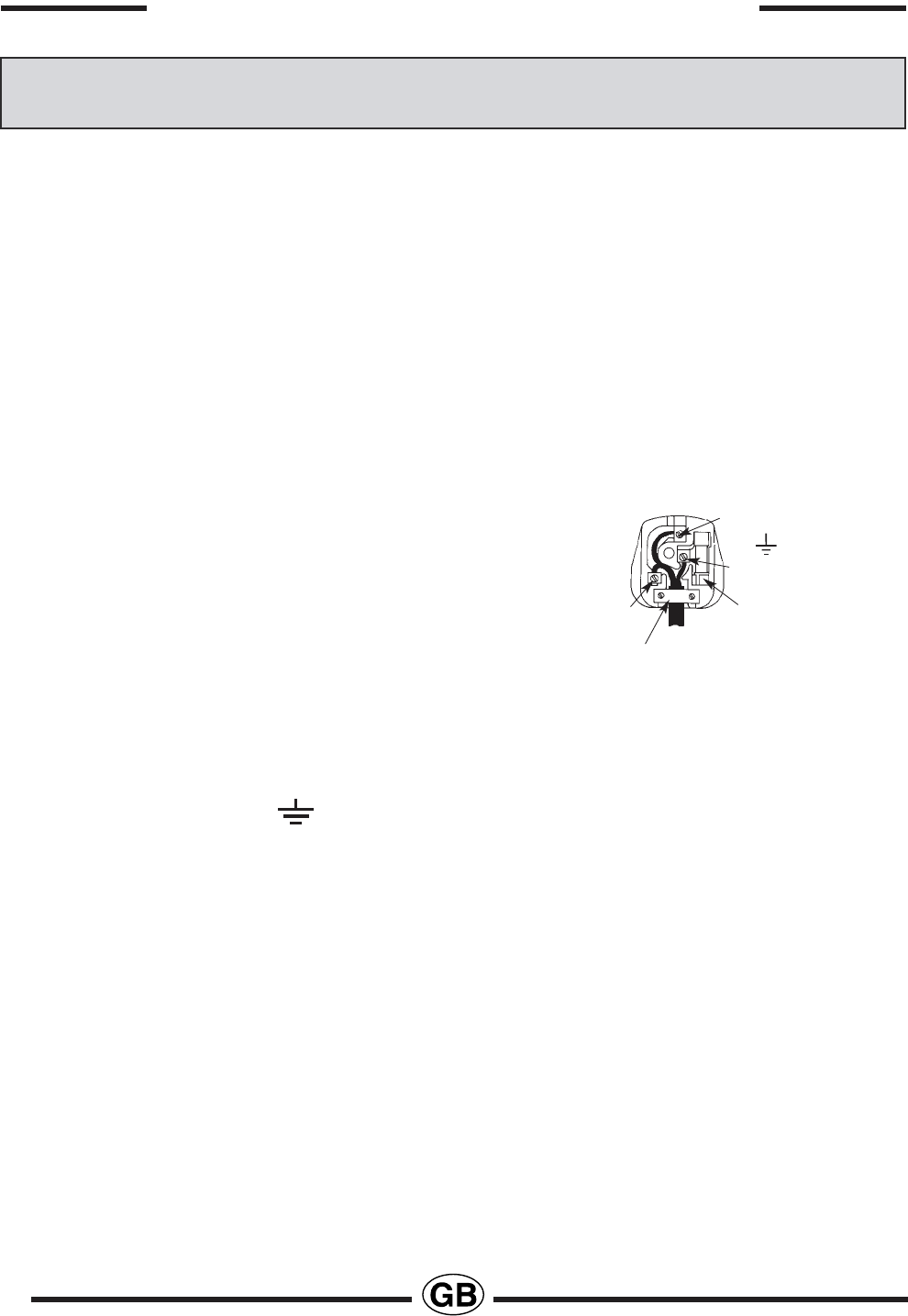

Green &
Yellow to
Earth
Brown
to Live
Blue to
Neutral
Cord
Clamp
3 Amp
Fuse
