Installation and User Guide CornuFé 1908 - 36" - USA / Can
08NOTINSTALFE8/USA-1

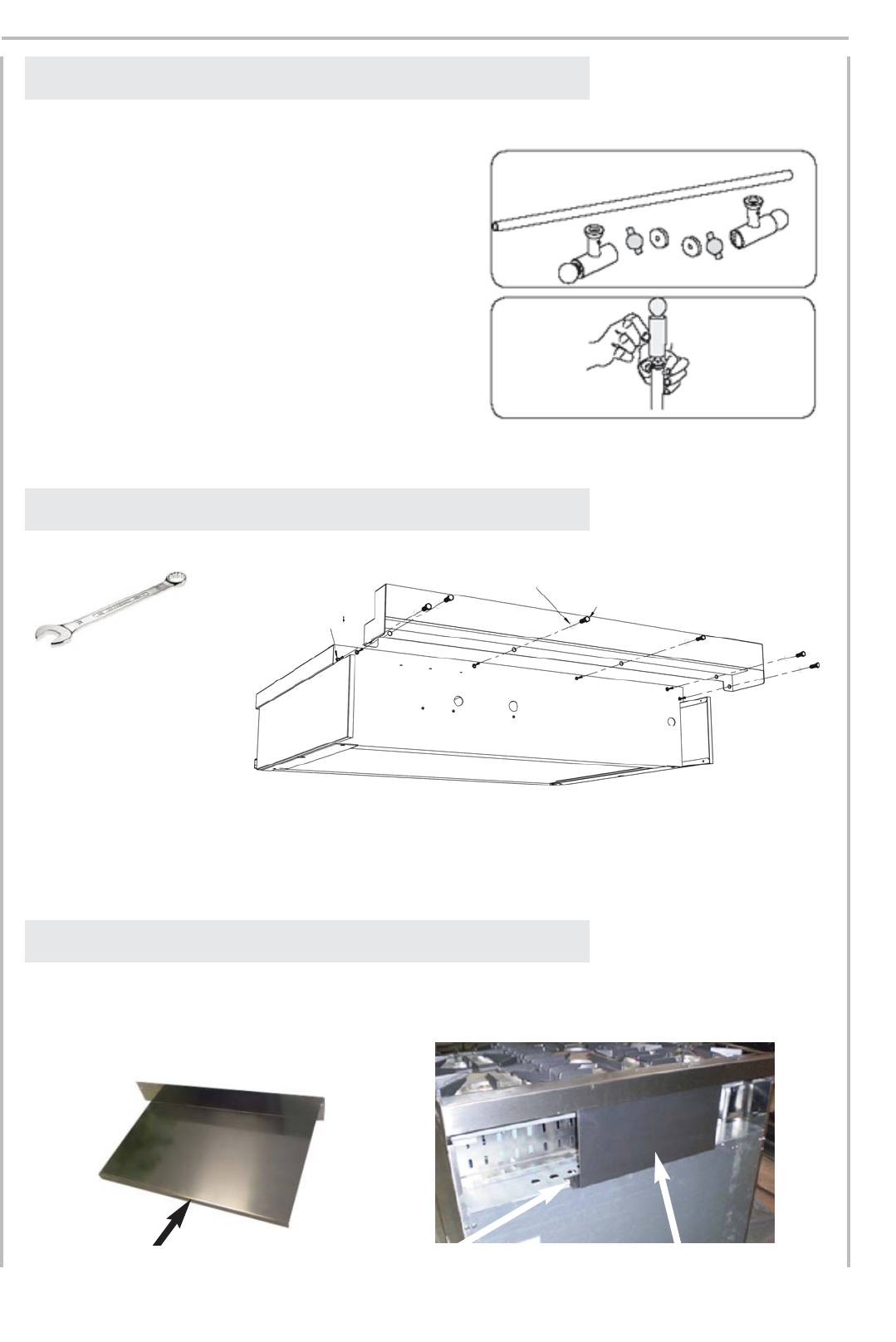

HANDLING AND INSTALLATION INSTRUCTIONS Fitting the handrail
The handrail is supplied as 2 end pieces with grub
screws, 2 plastic friction cups and the rail tube (Fig. 4).
Hold a friction cup by the tabs on one end of the tube.
Fit one of the end pieces to the tube and push it on the
tube over the friction cup (Fig. 5).
Turn the tube over and fit the other end piece using
the second friction cup, making sure that you do not
scratch or damage the first end piece and the that the
two end pieces are lined up correctly.
Fit the assembled handrail to the projecting mounting
studs on the control panel and fix it in place by
tightening the grub screws. The grub screws should
be on the underside.
The backsplash (flue grille) is packed separately (Fig. 7).
Use the screws and nuts supplied to fix the backsplash in place using an 8 mm wrench (not supplied) - Fig. 6.
Gas chimney protection plate comes separately in the package and needs to be installed above the
flue channel behind the gas oven.
6. GAS CHIMNEY PROTECTION INSTALLATION
Gas oven chimney protection2 x Screw M5 x 16 mm + washerGas oven chimney protection
4. FITTING THE HANDRAIL
Fig. 4
Fig. 5
5. RISER / BACKSPLASH INSTALLATION
8 mm
Inserts
Washer
Screw M5x16
Fig. 6
Fig. 7
