CONNECTING THE REFRIGERATOR TO
THE HOUSE WATER LINE (cont.)
If you are using copper tubing, place a
compression nut and ferrule (sleeve) onto the
end of the tubing coming from the house cold
water supply.
If you are using the GE SmartConnect
™
tubing, the nuts are already assembled to the
tubing.
If you are using copper tubing, insert
the end of the tubing into the refrigerator
connection, at the back of the refrigerator, as
far as possible. While holding the tubing,
tighten the fitting.
If you are using GE SmartConnect
™
tubing,
insert the molded end of the tubing into the
refrigerator connection,
at the back of the refrigerator, and tighten the
compression nut until it is hand tight. Then
tighten one additional turn with a wrench.
Overtightening may cause leaks.
Fasten the tubing into the clamp provided to
hold it in position. You may need to pry open
the clamp.

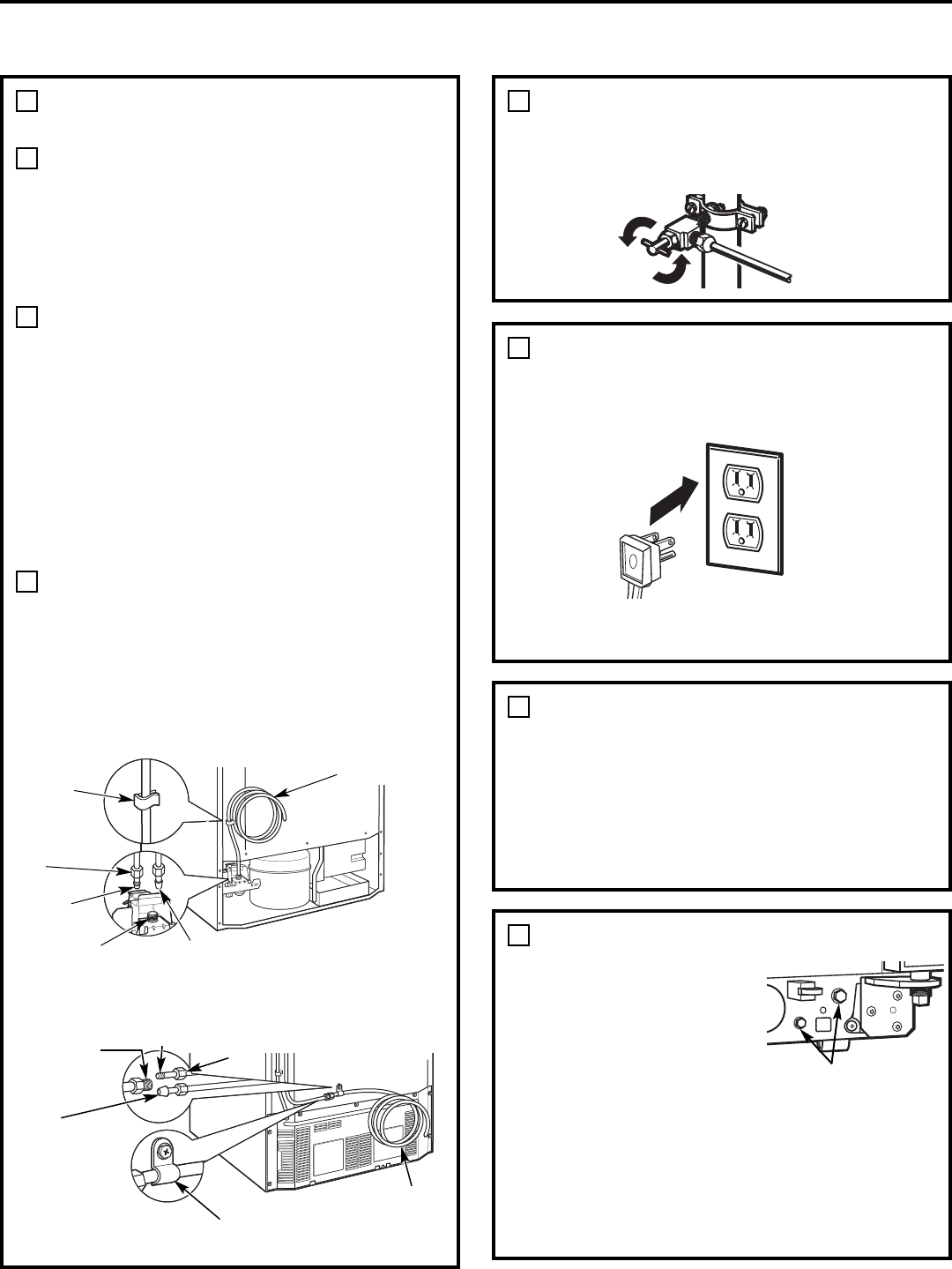

One of the illustrations below will look like the
connection on your refrigerator.
Icemaker-Ready Models
Icemaker-Installed Models
21
Installation Instructions
1
A
B
C
1/4Tubing
Tubing Clamp
1/4
Compression
Nut
Ferrule
(sleeve)
SmartConnect
™
Tubing
Refrigerator
Connection
TURN ON THE WATER SUPPLY
(icemaker and dispenser models)
Turn the water on at the shut-off valve (house water
supply) and check for any leaks.
2
PLUG IN THE REFRIGERATOR
On models with an icemaker, before plugging in the
refrigerator, make sure the icemaker power switch is set
to the O (off) position.
See the grounding information attached to the power
cord.
3
PUT THE REFRIGERATOR IN PLACE
Move the refrigerator to its final location. Make sure the
back side of the refrigerator engages the anti-tip
bracket properly. The anti-tip floor bracket should line
up with the cutout in the back bottom of the
refrigerator, and fit through the cutout when the
refrigerator is pushed into position. (Refer to page 18,
Step 2A for more information.)
4
1/4Copper
Tubing
1/4
Compression
Nut
Ferrule
(sleeve)
SmartConnect
™
Tubing
Refrigerator
Connection
Tubing
Clamp
LEVEL THE REFRIGERATOR
Turn the front roller adjusting
screws clockwise to raise the
refrigerator, counterclockwise
to lower it. Use a 3/8hex
wrench with extension, or an
adjustable wrench.
To adjust the rollers on 21
‘ Counter Depth models:
These models also have rear adjustable rollers so you
can align the refrigerator with your kitchen cabinets.
Use a 3/8hex wrench with extension to turn the
screws for the rear rollers—clockwise to raise the
refrigerator, counterclockwise to lower it.
5
Roller adjusting screws
