Hoshizaki DCM-500BWH Ice Maker User Manual



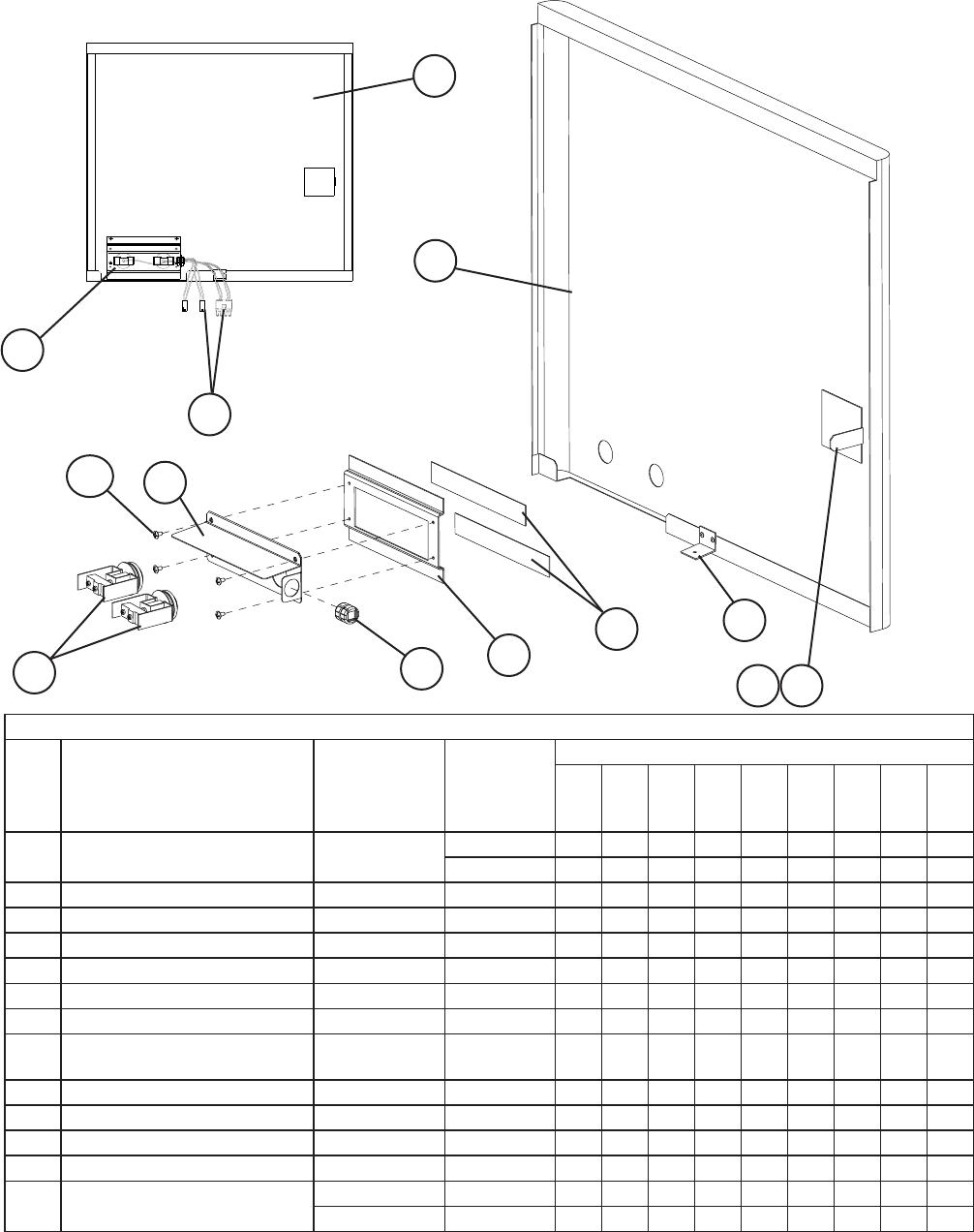

F. Front Panel Assembly
DCM-500BAH, DCM-500BWH
T-0 to V-4
Title: F. Front Panel Asseembly Model: DCM-500BAH, DCM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
T-1
U-0
U-1
to
V-4
1 Front Panel Assembly (B)
(includes items 2 through 5a)
3A4998G01 1 1 -
3A4998G02 1
2 Front Panel (A) 2A2891-02 1 1 1
3 Switch Bracket (A) 3A4547-01 1 1 1
3a Foam Tape L=185 4A2460L01 2 2 2
4 Bracket-Ground 4A3901-01 1 1 1
5 Hook 4A3190-01 1 1 -
5a Two Sided Tape L=65 4A0415L01 3 1 -
6 Push Switch Assembly
(includes items 7 through 9)
3A4997A01 1 1 1
6a Truss Head Screw 4×8, SS 7C32-0408 4 4 4
7 Switch Bracket (B) 4A4583-01 1 1 1
8 Push Switch 435745-02 2 2 2
9 Bushing 420472-05 1 1 1
10 Receptacle Housing 03-09-1022 4A4003-01 2 -
3191-04R1 412831-05 1 1
7
2
10
3
4
5 5a
8
9
1
6
6a
3a
T-0
T-1 and later
32
