IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
Continuous Flow Icemaker Illustrated Parts List 11 of 17 Part Number: 630460174IPL
© IMI Cornelius Inc., 2004-2008 Revision Date: April 23, 2008
Revision: C
FRONT END ASSEMBLY MODEL 700 AND 1400 SERIES CHUNKLETS

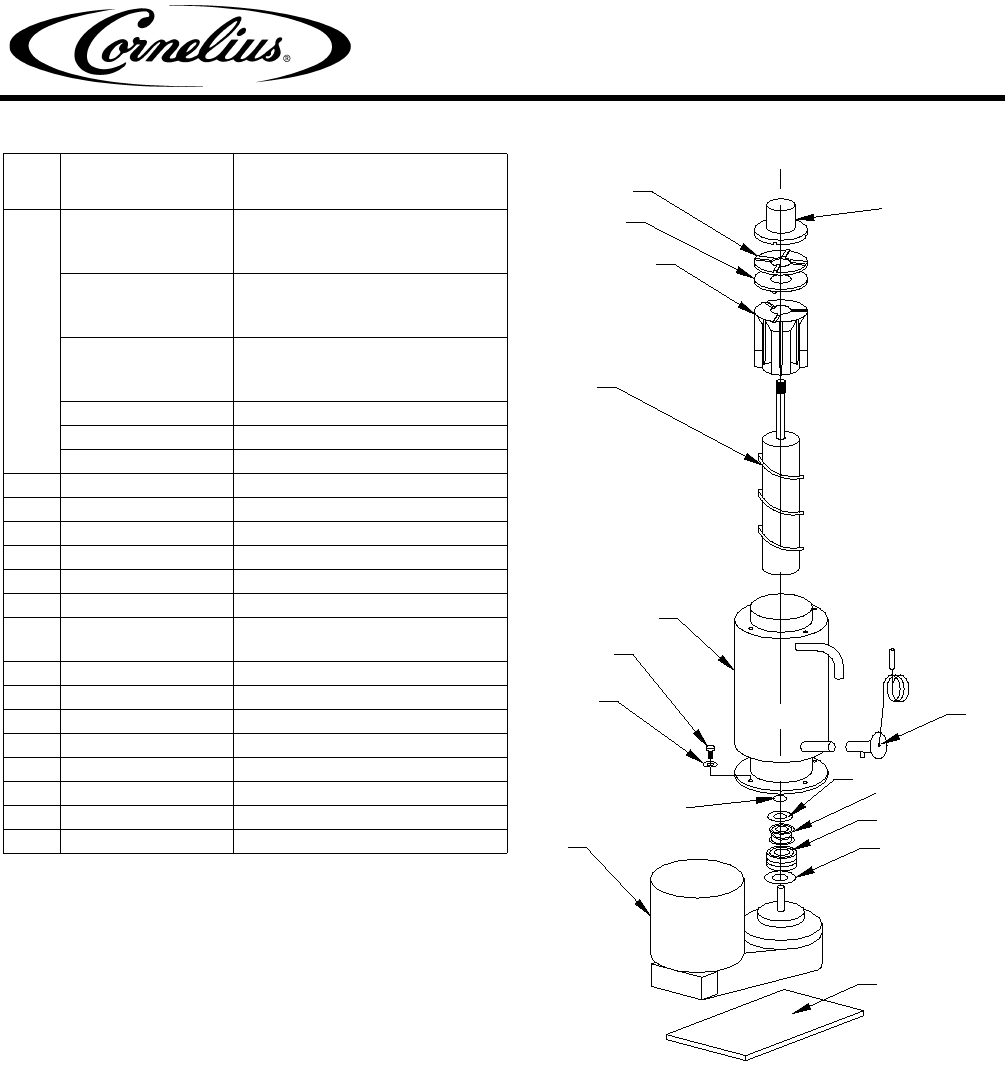

FIGURE 10. Front End Assembly 700 Series
Item
No.
Part No. Name
1 638090001 Gearmotor Less Cable,
Seals, O-ring, Seal-mount
115V
638090001-001 Gearmotor Less Cable,
Seals, O-ring, Seal-mount
230V, 60Hz
638090001-002 Gearmotor Less Cable,
Seals, O-ring, Seal-mount
220V, 50Hz
638090050 Gearmotor - 115V Service Kit
638090050-004 Gearmotor - 230V Service Kit
638090050-006 Gearmotor - 220V Service Kit
2 638090215 Shaft Seal Mount
3 638090051 Shaft Seal
4 638007301-030 Washer, Lower
5 638090053 E–Ring
6 638090216 Shaft Seal Seat
7 168833000 Washer, Lock 1/4 Split
8 161179001 Screw 1/4–20 x 3/4 Lg.
HHMS
9 630000651 Evaporator Assembly
10 638090213 Auger
11 630900608 Extruding Head
12 638090226 Expansion Valve
13 638036218 Bracket, Mounting
14 638090211 Auger Nut
15 638090219 Bearing Nylon
16 638090220 Bearing Delrin
1
5
7
8
9
10
11
15
16
14
12
4
3
2
6
13
