Part Number: 630460174IPL 2 of 17 Continuous Flow Icemaker Illustrated Parts List
Revision Date: April 23, 2008 © IMI Cornelius Inc., 2004-2008
Revision: C
REFRIGERATION AND ICEMAKER ASSEMBLY MODEL 2000 SERIES

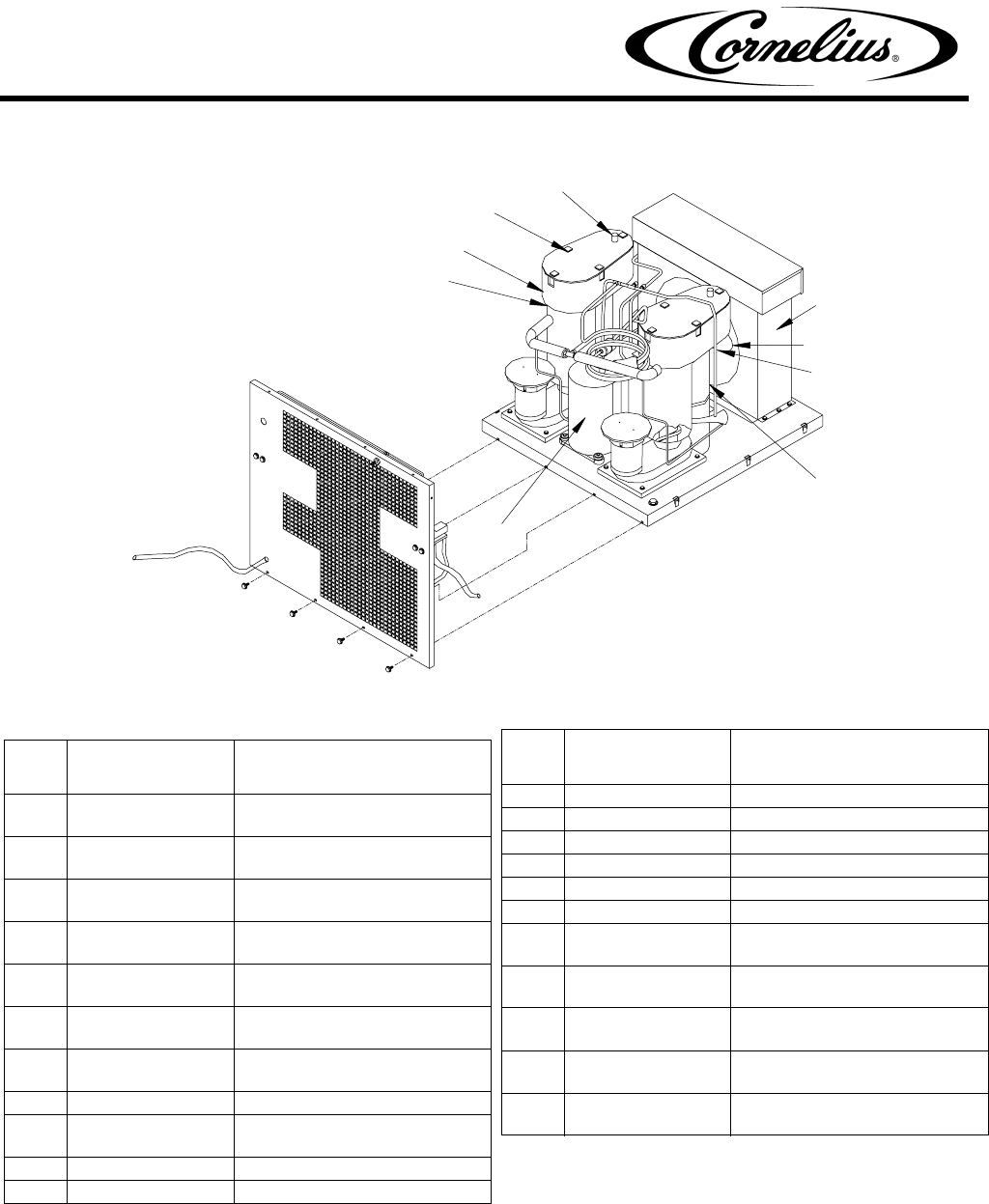

FIGURE 1. 2000 Series
Note: * = Not Shown
13
14
15
16
23
21
22
19
18
Item
No
Part No. Name
1 162964027 Compressor (WCC2001 &
WCF2201)
162964046 Compressor (WCC2002 &
WCF2202)
2 638036849 Condenser (WCC & WCF
Air)
27177 Condenser (WCC & WCF
Water)
161870007 Condenser (WCC & WCF
Remote)
3 638090344001 Fan Motor (WCC & WCF
Air 50 & 60 HZ)
27185 Fan Motor (Remote 50 &
60 HZ)
4 63809034401 Fan Blade (Air)
630900246 Fan Blade (WCC & WCF
Remote)
5 638004391 Bracket Fan Motor
6 638036087 Clamp, Dispense Tray
Item
No
Part No. Name
7 638036872001 Dispense Tray Assembly
8 630900948 Cover Dispense Tray
9 630900954 Thermostat Well
10 638036867001 Clip Cove
11 638036020001 Drop Tube Assembly
12 638092537 Cover, Electrical Box
13* 164980002 Water Regulator Valve
(Water)
14* 638009755 High Pressure Switch
(Water)
15* 161773003 Pressure Switch (WCC &
WCF Remote)
16* 166226000 Valve Head Pressure
(WCC & WCF Remote)
17* 166225000 Receiver (WCC & WCF
Remote)
