IMI CORNELIUS INC.
www.cornelius.com
Telephone 1-800-238-3600
Part Number: 630460174IPL 12 of 17 Continuous Flow Icemaker Illustrated Parts List
Revision Date: April 23, 2008 © IMI Cornelius Inc., 2004-2008
Revision: C
FRONT END ASSEMBLY MODEL 1000 AND 2000 SERIES

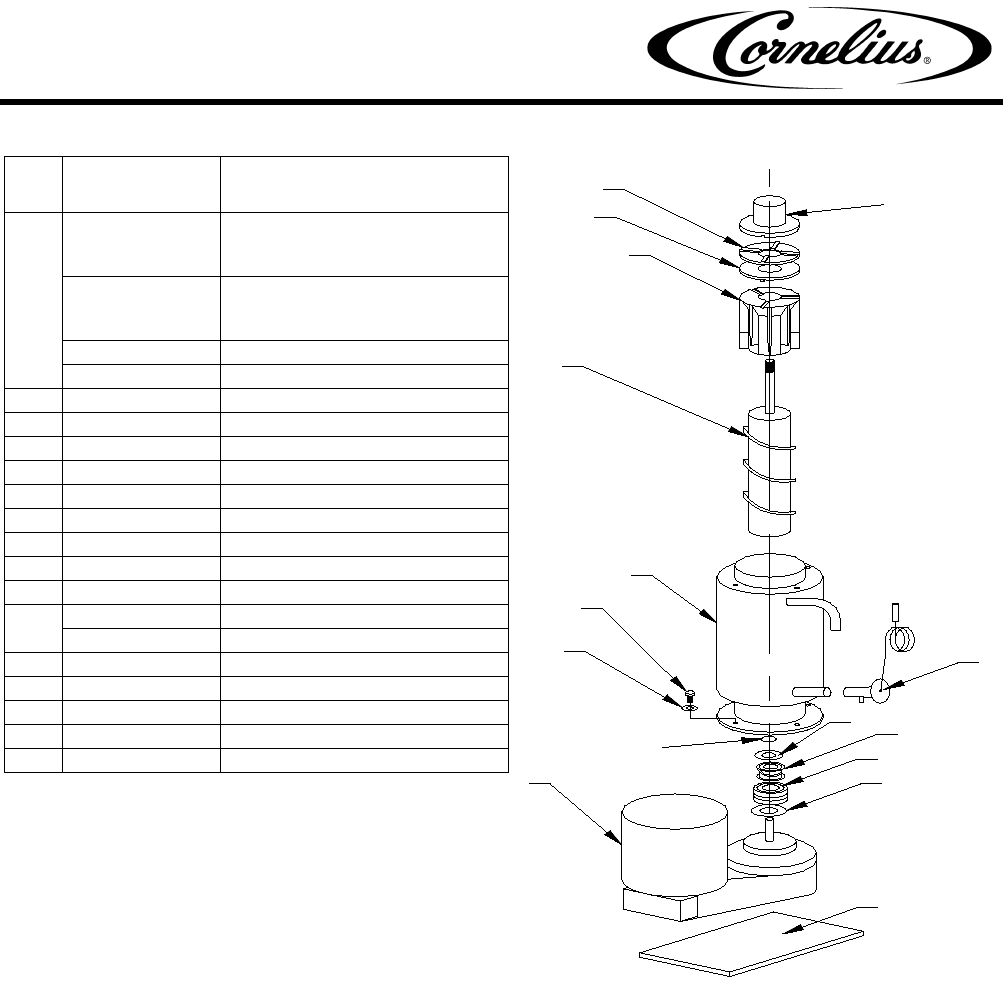

FIGURE 11. Front End Assembly 1000 and 2000 Series
Item
No.
Part No. Name
1 638090000-001 Gearmotor Less Cable, Seals,
O-ring, Seal-mount 230V,
60Hz
638090000-001 Gearmotor Less Cable, Seals,
O-ring, Seal-mount 220V,
50Hz
638090050-001 Gearmotor - 230V Service Kit
638090050-001 Gearmotor - 220V Service Kit
2 638090315 Shaft Seal Mount
3 638090051 Shaft Seal
4 638007301-030 Washer, Lower
5 638090053 E–Ring
6 638090316 Shaft Seal Seat
7 168833000 Washer Lock 1/4 Split
8 161179001 Screw, 1/4–20 x 3/4 Lg. HHMS
9 638090335 Evaporator Assembly
10 638090313 Auger
11 638090317 Extruding Head WCC
638090318 Extruding Head WCF
12 638090326 Expansion Valve
13 638090349 Bracket, Mounting
14 638090311 Auger Nut
15 638090319 Bearing Nylon
16 638090320 Bearing Delrin
5
7
8
9
10
11
15
16
14
12
4
3
2
6
13
1
