IMI CORNELIUS INC.
www.cornelius.com
1-800-238-3600
Continuous Flow Icemaker Illustrated Parts List 9 of 17 Part Number: 630460174IPL
© IMI Cornelius Inc., 2004-2008 Revision Date: April 23, 2008
Revision: C
FRONT END ASSEMBLY MODEL 500 SERIES

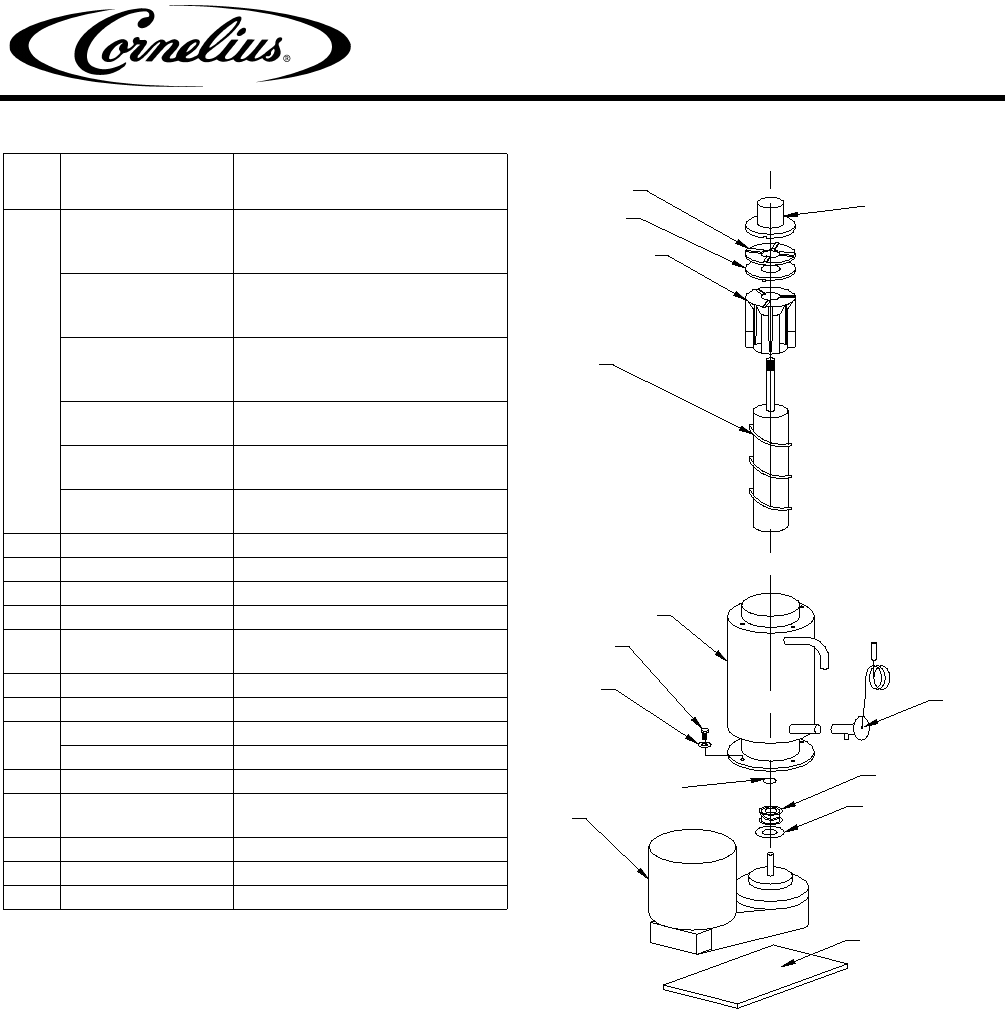

FIGURE 8. Front End Assembly 500 Series
Item
No.
Part No. Name
1 638090001 Gearmotor Less Cable,
Seals O–ring seal–mount
115V
638090001-001 Gearmotor Less Cable,
Seals O–ring seal–mount
230V 60 Hz
638090001-002 Gearmotor Less Cable,
Seals O–ring seal–mount
220V 50 Hz
638090050-002 Gearmotor - 115V Service
Kit
638090050-003 Gearmotor - 230V Service
Kit
638090050-005 Gearmotor - 220V Service
Kit
2 638090116 Shaft Seal Seat
3 638090051 Shaft Seal
4 638090053 E–Ring
5 168833000 Washer, Lock 1/4 Split
6 161179001 Screw, 1/4–20 x 3/4 Lg.
HHMS
7 638036373-001 Evaporator Assembly
8 638090113 Auger
9 638090117 Extruding Head, WCC
638090118 Extruding Head, WCF
10 638090126 Expansion Valve
11 638036218 Bracket, Mounting Ice-
maker
12 638090111 Auger Nut
13 638090119 Bearing Nylon
14 638090120 Bearing Delrin
12
14
13
9
8
7
6
5
1
10
3
2
11
4
