Cornelius CH1500-CH7500 Refrigerator User Manual



17
91961OPR
TXV EQUALIZER
LINE
TXV SENSING
BULB
TXV
EVAPORATOR
LIQUID LINE
SOL. VALVE
HOT GAS
BYPASS
VALVE
COMPRESSOR
LOW PRESSURE
SWITCH
HIGH PRESSURE
SWITCH
SIGHT GLASS
FILTER/DRIER
LIQUID
RECEIVER
CONDENSER

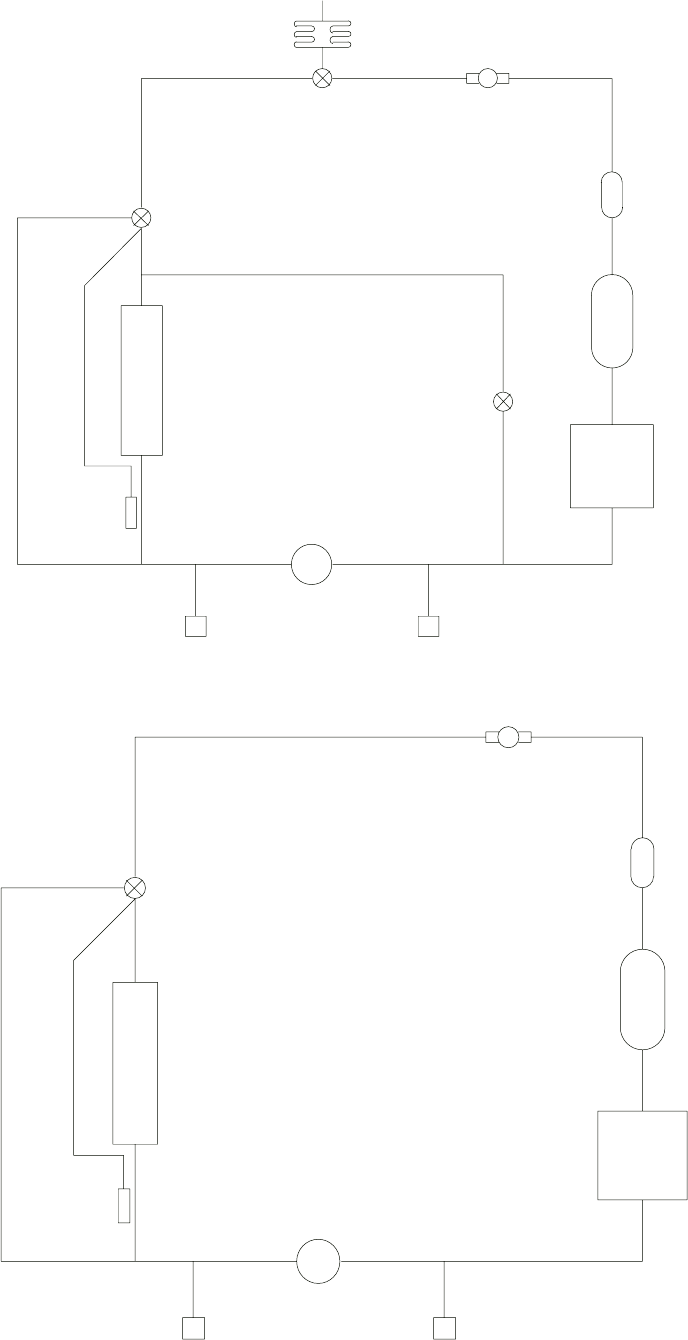

FIGURE 6. REFRIGERATION PIPING SCHEMATIC WITH HOT GAS BYPASS
TXV EQUALIZER
LINE
TXV SENSING
BULB
TXV
EVAPORATOR
COMPRESSOR
LOW PRESSURE
SWITCH
HIGH PRESSURE
SWITCH
SIGHT GLASS
FILTER/DRIER
LIQUID
RECEIVER
CONDENSER
FIGURE 7. REFRIGERATION PIPING SCHEMATIC WITHOUT HOT GAS BYPASS
