1891961OPR
PARTS LIST
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
4
10

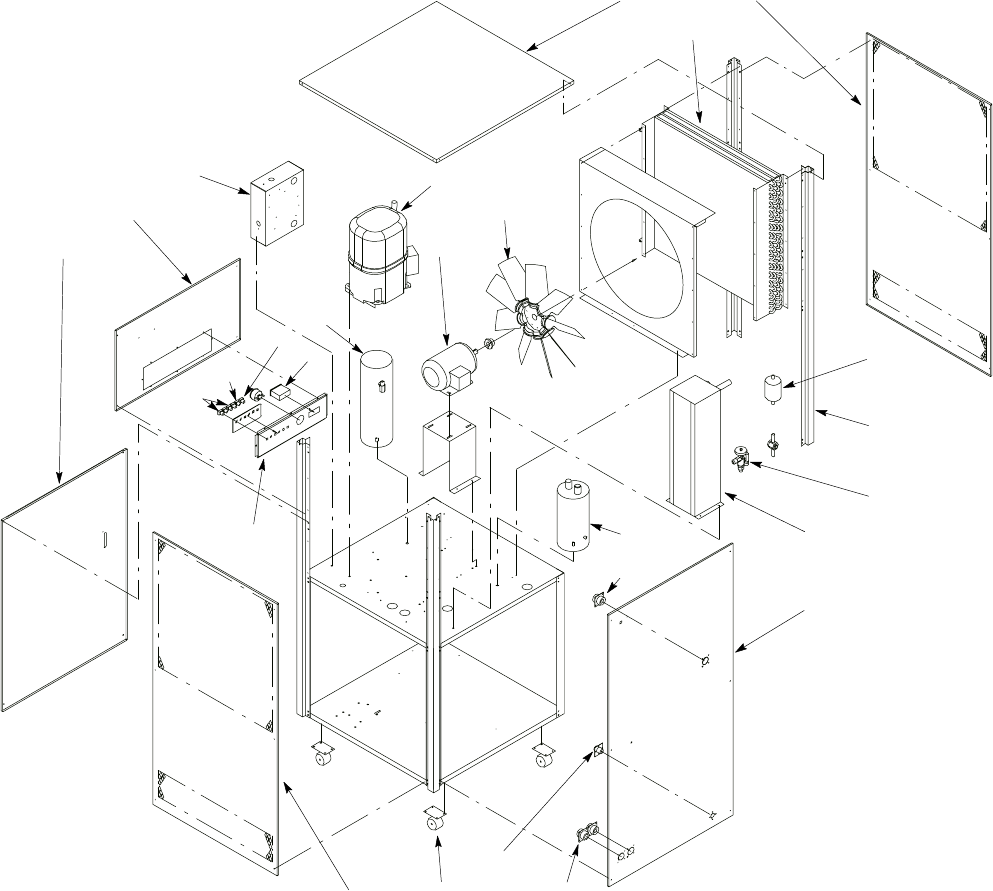

FIGURE 8. CHILLER PARTS BREAKDOWN
Index
No.
Description
1 1/2” FPT Coupling
2 Thermowell, Low Temp. Thermostat (Not Shown)
3 Corner Cover
4 Side Panel
5 Rear Panel
6 Upper Front Panel
7 Lower Front Panel
8 Lid
9 Control Panel
10 FPT Coupling
11 Temperature Control
12 Electric Box Assembly
13 Fan Blade
14 Fan Motor
15 White Switch/Indicator
Index
No.
Description
16 Red Indicator
17 Green Indicator
18 Compressor
19 Accumulator
20 Filter/Drier
21 TX Valve, R-22
22 Evaporator Assembly
23 Condenser
24 Compressor
25 Receiver
26 Caster
NS Condenser, Water Cooled
NS Regulating Valve, Water Cooled Condenser
* Call the Techncial Service Department for
Proper Panel.
