Range

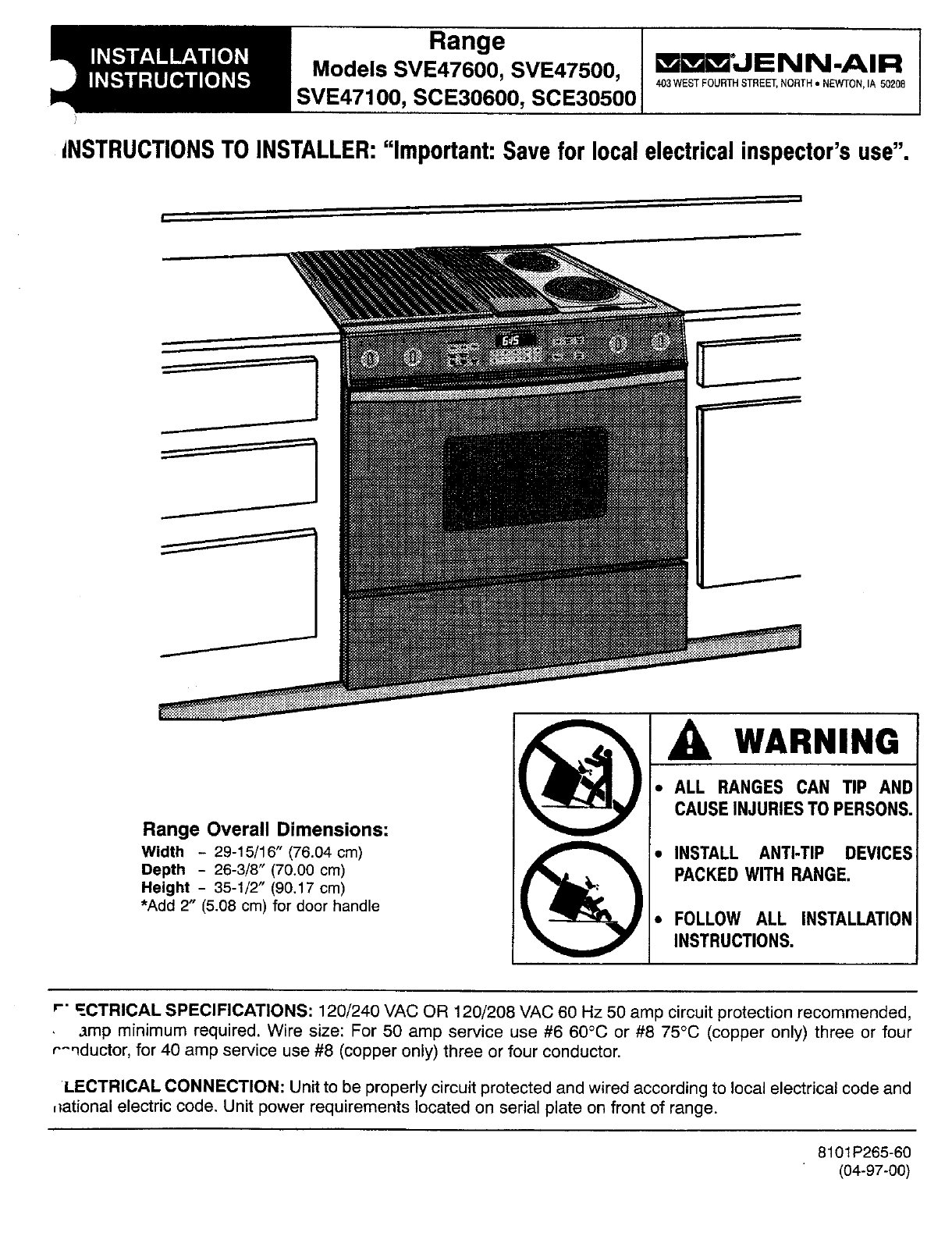

Models SVE47600, SVE47500, mmi_JENN.AIR
403WESTFOURTHSTREET,NORTH• NEWTON,IA50208
SVE47100, SCE30600, SCE30500
iNSTRUCTIONSTOINSTALLER:"Important:Saveforlocalelectricalinspector'suse".
INSTALLATION
D INSTRUCTIONS
WARNING
• ALL RANGESCAN TiP AND
CAUSEINJURIESTOPERSONS.
Range Overall Dimensions:
Width - 29-15/16" (76.04 cm) _ • INSTALL ANTI-TIP DEVICES
Depth - 26-3/8" (70.00 cm) _ PACKEDWITH RANGE.
Height - 35-1/2" (90.17 cm)
•Add 2" (5.08 cm) for doorhandle
I
• FOLLOWALL INSTALLATION
INSTRUCTIONS.
r" =.CTRICAL SPECIFICATIONS: 120/240 VAC OR 120/208 VAC 60 Hz 50 amp circuitprotectionrecommended,
,Imp minimum required. Wire size: For 50 amp service use #6 60°(3 or #8 75°C (copper only) three or four
r^_ductor, for 40 amp service use #8 (copper only)three or four conductor.
LECTRICAL CONNECTION: Unitto be properlycircuitprotectedand wired accordingto localelectricalcode and
,_ationalelectriccode, Unitpower requirements located on serial plate on front of range.
8101P265-60
(04-97-00)
