Electronic Ignition System

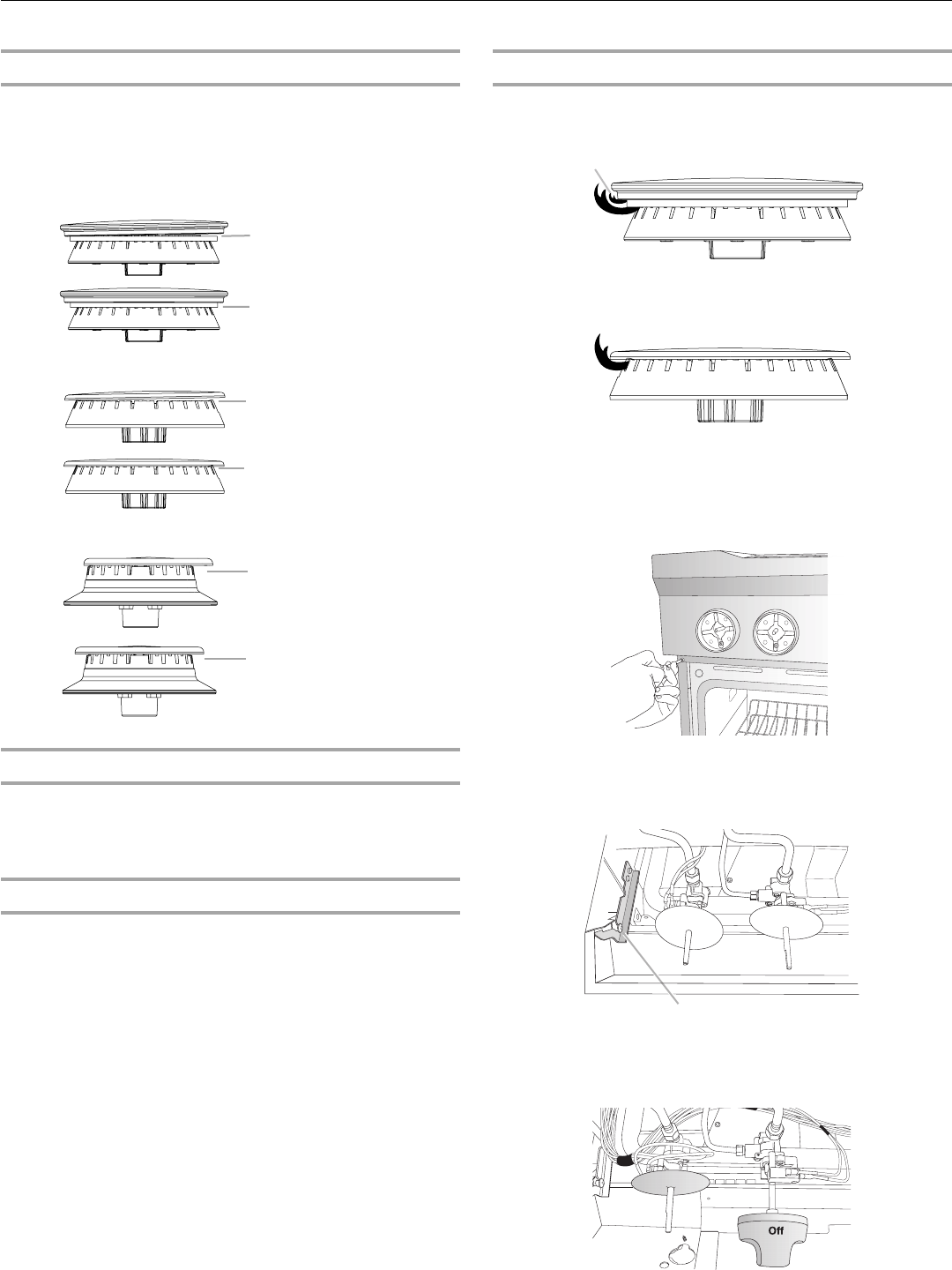

Install Burner Bases and Burner Caps
Install the burner base, making sure the igniter electrode is
properly aligned with the base. Place burner caps on top of
burner bases. If burner caps are not properly positioned, surface
burners will not light.
Initial Lighting and Gas Flame Adjustments
Cooktop burners use electronic igniters in place of standing
pilots. When the cooktop control knob is turned to any position,
the system creates a spark to light the burner. This sparking
continues until the flame is lit or the knob is turned to Off.
Check Operation of Cooktop Burners
Push in and turn each control knob to the “LITE” position.
The surface burners and grill flames should light within
4 seconds. The first time a burner is lit, it may take longer than
4 seconds to light because of air in the gas line.
After verifying the proper burner operation, turn the control knobs
to OFF.
If burners do not light properly:
■ Turn cooktop control knob to the “OFF” position.
■ Check that the range is plugged in and the circuit breaker has
not tripped or the fuse has not blown.
■ Check that the gas shutoff valves are set to the “open”
position.
■ Check that burner caps are properly positioned on burner
bases.
Repeat start-up. If a burner does not light at this point, contact
your dealer or authorized service company for assistance.
Flame Height
The cooktop flame should be a steady blue flame approximately
¼" (0.64 cm) high.
Dual Flame Burner
Single Flame Burner
To Adjust Flame Height:
1. Unplug range or disconnect power.
2. Remove burner grates.
3. Remove the control knobs.
4. Open the oven door and remove the 2 screws on each side of
the range that hold the control console in place.
NOTE: Make sure to leave oven door open or the control
console will not rest in the side brackets properly once it is
detached.
5. Pull up on the control console and let it drop forward into the
notched console brackets on each side.
6. Remove the round gasket from the valve stem.
7. Put a control knob onto the valve stem of the burner you want
to adjust.
20,000 Btu/h Ultra Power™ Dual-Flame
Burner
A.Incorrect
B.Correct
15,000 Btu/h Professional Burner
A.Incorrect
B.Correct
5,000 Btu/h Simmer/Melt Burner
A.Incorrect
B.Correct
A
B
A
B
A
B
A. Upper (simmer) flame
B.Lower flame
A.Control console bracket
A
B
A
