7. Lift up clip on the oven bake burner electrode bracket with a
finger or flat-blade screwdriver and pull away the electrode.
8. Pull electrode out of bracket.
9. Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening and press down onto
the gas orifice spud and remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice spud
aside.
10. Gas orifice studs are stamped with a letter and a number.
Install the Number 189 oven bake burner orifice spud.
11. Place LP gas orifice in plastic parts bag for future use and
keep with package containing literature.
12. Push down on the clip on the electrode bracket.

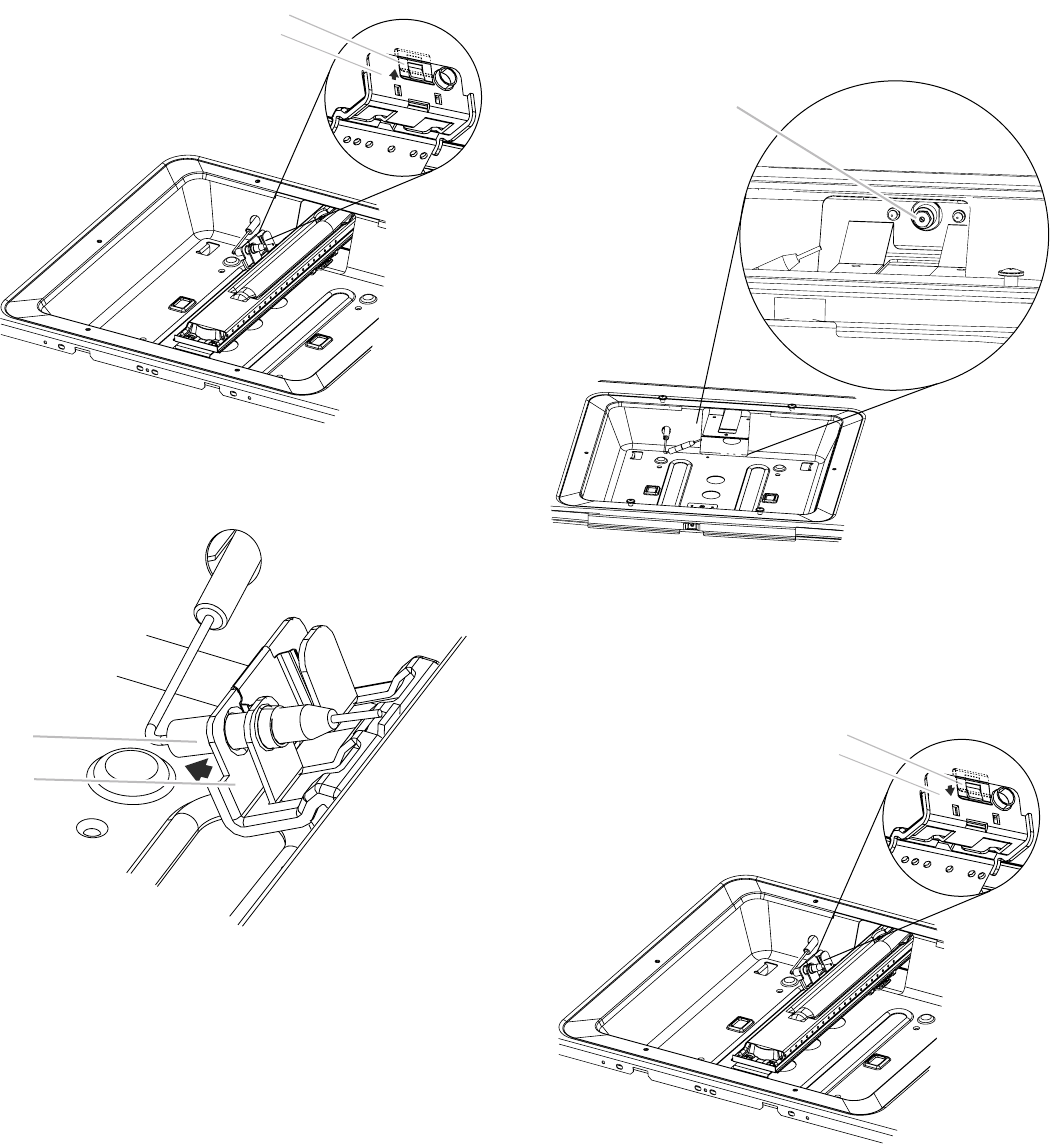

A.Oven bake burner electrode bracket
B.Electrode bracket clip
A.Grasp electrode here.
B.Bracket
A
B
A
B
A.Gas orifice spud
A. Oven bake burner electrode bracket
B.Electrode bracket clip
A
A
B
