Installation Instructions Section 2
2-20 Part Number 80-1620-3
NON-MANITOWOC MULTI-CIRCUIT CONDENSER SIZING CHART

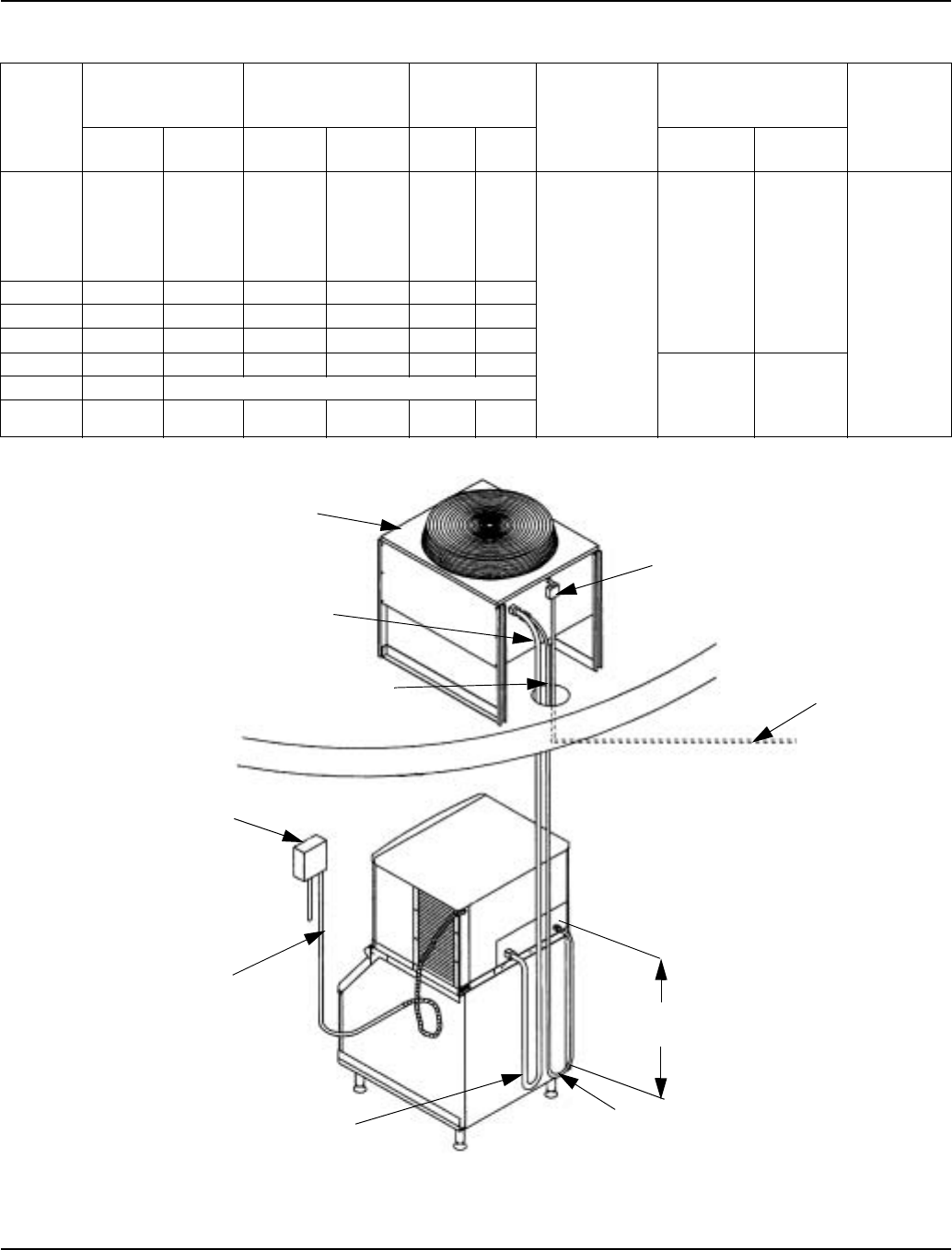

Typical Single Circuit Remote Condenser Installation
Ice
Machine
Model
Refrigerant Heat of Rejection
Internal
Condenser
Volume (cu ft)
Design
Pressure
Quick Connect Stubs-
Male Ends
Head
Pressure
Control
Valve
Type Charge
Average
Btu/hr
Peak
Btu/hr
Min Max Discharge Liquid
S500 R-404A
6 lbs. 7,000 9,600 0.020 0.035
500 psig
(3447 kpa)
(34.47 bar)
safe working
pressure
coupling
P/N
83-6035-3
coupling
P/N
83-6034-3
Manitowoc
P/N
83-6809-3
S600 R404A
6.5 lbs. 9,000 13,900 0.045 0.060
S850 R-404A 8.5 lbs. 12,000 18,000 0.045 0.060 2,500 psig
(17237 kpa)
(172.37 bar)
burst
pressure
S1000 R-404A 8.5 lbs. 16,000 22,000 0.045 0.060
no
substitutes
S1400 R-404A 11 lbs. 19,000 28,000 0.085 0.105
mounting
flange P/N
83-6006-3
mounting
flange P/N
83-6005-3
S1600 R-404A Not Available at Time of Printing
S1800 R-404A 12.5 lbs. 24,000 36,000
0.085 0.105
SV1615
SINGLE CIRCUIT REMOTE
CONDENSER
ELECTRICAL
DISCONNECT
DISCHARGE
LINE
LIQUID LINE
ELECTRICAL
DISCONNECT
ELECTRICAL
SUPPLY
ICE MACHINE
BIN
DISCHARGE
REFRIGERANT
LINE
LIQUID
REFRIGERANT
LINE
36.00"
(91.44 cm)
DROP
TO CIRCUIT
BREAKER
PANEL
