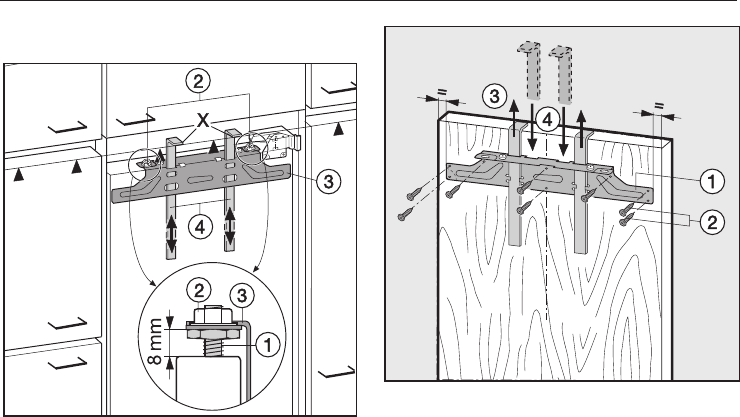

Fitting a furniture door
^ A gap of 8 mm a must be set
between the appliance door and the
fixing bracket.
^ Push fitting aids d up to the height of
the furniture door: the lower edge "X"
of the fitting aids must be at the same
height as the upper edge of the
furniture door being fitted (see - on
the diagram).
^
Undo nuts b, and take fixing bracket
c off together with the fitting aids.
^ Using a pencil, lightly mark a line
down the centre of the inside of the
furniture door.
^ Hang fixing bracket a with the fitting
aids onto the inside of the furniture
door. Align the fixing bracket
centrally.
^ Attach the fixing bracket securely
using at least 6 short 4 x 14 mm
chipboard screws b. (On cassette
doors only use 4 screws on the
edges).
^
Pull the fitting aids upwards to
remove them c.
^
Turn them around and fit them into
the middle slots on fixing bracket d
for safe keeping.
Building in the appliance
41
