Remove cover d.
The soft-close mechanism is now no
longer fixed to the appliance.
^
Remove panel a.

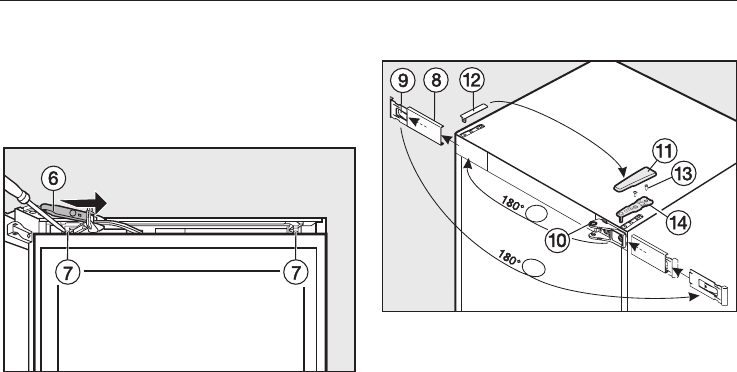

^ Slide soft-close mechanism bracket
f as far as it will go towards the
handle side of the door, and undo
screws g on the soft-close
mechanism.
^ Using a flat-bladed screwdriver, slide
the soft-close door mechanism
towards the handle side of the door,
and lever it out at the side.
^
Then place it to one side.
Removing the upper door
^
Gently loosen cover h by carefully
inserting a flat-bladed screwdriver
into the gap.
^ Remove cover h together with
retainer plate i.
^ Then separate retainer plate i from
cover h, by pushing it slightly to the
left and then pulling the cover
forwards and off.
^ Rotate retainer plate i by 180°.
^
Then fit cover h from the front over
retainer plate i, and push it over to
the right. The writing must be visible.
^
Unscrew hinge part j, rotate by
180° and fit to the opposite side. If
necessary drill pilot holes for the
screws.
^
Remove cover k by sliding it
forwards from the back and then
lifting it off.
^
Remove cover l by pulling it
upwards.
Changing the door hinging
63
