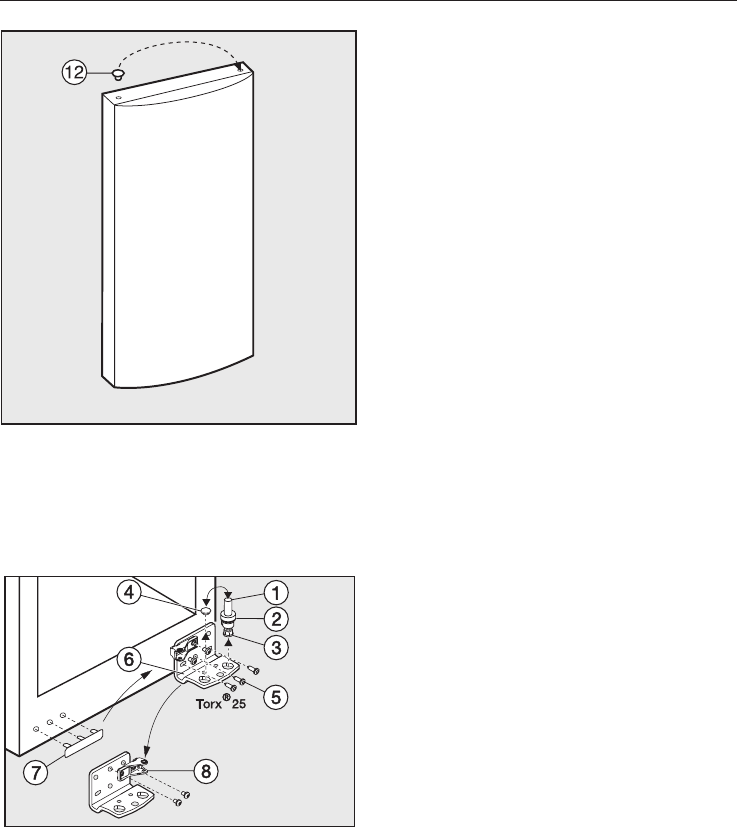

^ Remove cap l from the bearing
bush in the door and refit on the
opposite side.
Refitting the lower door
^
Pull hinge pin a together with disc b
and adjustable foot c upwards and
off.
^
Remove cover cap d.
^
Undo screws e and take hinge plate
f off.
^
Unscrew part h from hinge plate f,
rotate it by 180° and refit into the hole
on the opposite side of the hinge
plate.
^
Refit cover cap d in the other hole.
^
Remove cover g and fit it into the
holes on the opposite side.
^
Screw hinge plate f into position on
the opposite side using the two outer
long slots only. To make it possible to
align the door later, do not replace
the centre screw at this stage.
^
Important. Screw the adjustable foot
c into hinge pin a as far as it will go.
^ Refit hinge pin a together with disc
b and adjustable foot c. Important.
The notch at the bottom of the hinge
pin should face towards the back.
^ Place the lower door onto hinge pin
a.
^ Close the lower door.
Changing the door hinging
66
