Chimney Stack
The chimney consists of two sections.
The lower chimney measures (with the Hood body and
recirculation grilles) 935 mm and the upper chimney
measures 290 mm. The overall installed measurement
is min. 935 - max 1215 mm.

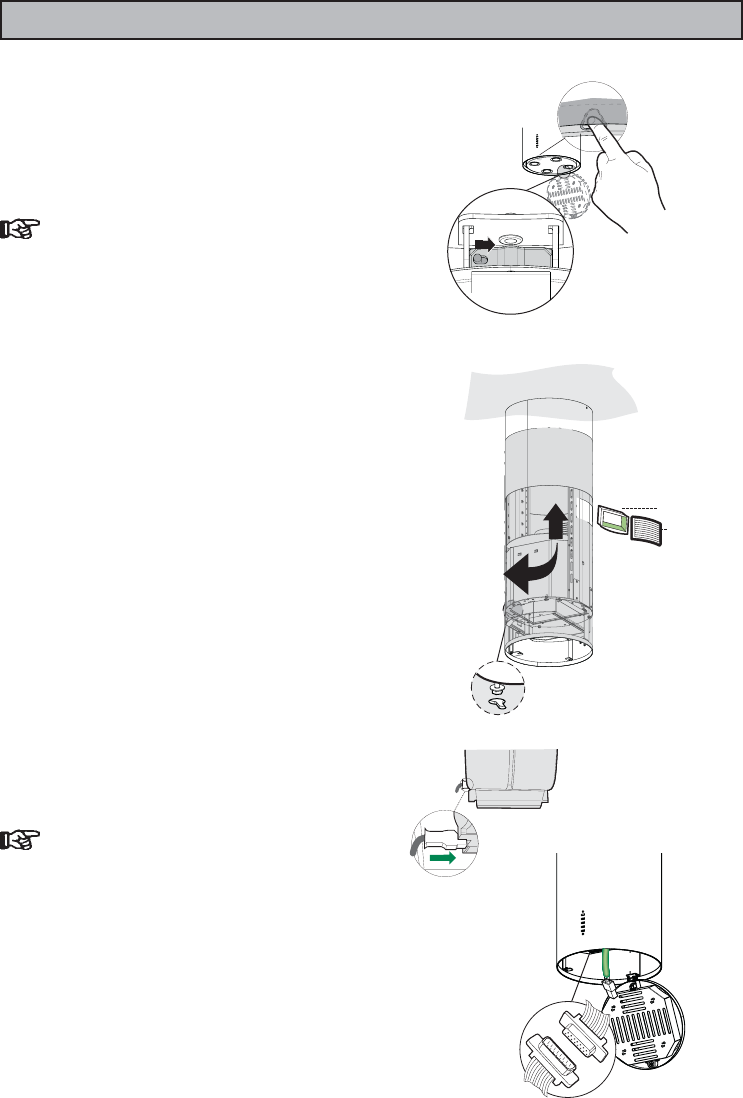

Fitting the Upper Chimney and
the Hood Body
• Position the upper chimney stack and fi x the top of
it to the frame using 2 of the screws removed as
above.
• Open the lighting unit by pulling on the notch, discon-
nect it from the hood canopy by sliding out the fi xing
pin.
• Remove the activated charcoal fi lters, if fi tted.
• In order to fi x the hood body to the frame insert the
4 screws 12f in their seats. It is necessary to leave
at least 4-5 mm gap between the screw heads and
the frame plate.
• Hook the hood canopy to the frame and turn it to
the left until it reaches the stop, then lock the screws
immediately to prevent the hood canopy from falling
out accidentally.
• Make sure that the outlet of the extension piece 14.1
is horizontally and vertically aligned with the chimney
outlet.
• If this is not the case, remove the lower Chimney
Stack and adjust the position of connector 15; replace
the elements as described above.
• Insert Connector Extension 14.1 sideways into Ex-
tension 14.2.
• Fit the directional grill 8 into the housing provided.
Also make sure that it is properly fi tted into connector
14.1.
Electrical Connection
• Ensure that the supply cable connector is properly
inserted into the Suction device socket
• Hook up the Commands connector Cmd.
• Hook up the Spotlights connector Lux to the socket
provided behind the lighting unit cover.
• For the recirculation version, fi t the activated carbon
odour fi lter.
• Replace the grease fi lters.
• Replace the lighting unit.
INSTALLING THE COOKER HOOD
14.1
2
1
Cmd
Lux
