28 Rockwell Automation Publication 1734-UM014B-EN-P - June 2013
Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 Software

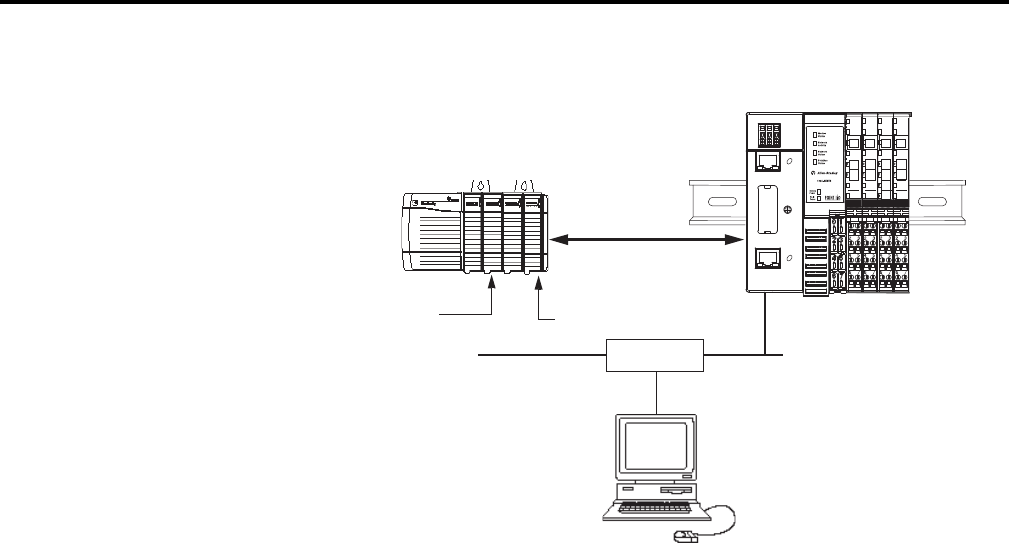

To work along with this example, set up your system as shown in the figure.
In the example application, we assume that the L63 controller and 1756-
ENBT module (firmware revision 2.3, or later) are in the slots shown in
the figure.
Verify the IP addresses for your programming terminal, 1756-ENBT
module, and adapter.
Verify the position (slot) of the I/O modules on the DIN rail.
Verify that you connected all wiring and cabling properly.
Be sure you configured your communication driver (for example,
AB_ETH-1 or AB-ETHIP-1) in RSLinx software, as described in
Appendix of this manual.
Local
chassis
POINT I/O
L63
controller (slot 1)
1756-ENBT
10.88.70.4 (slot 3)
Data
Switch
10.88.70.26
Programming
terminal
Slot 0 1 2 3
1734-AENTR
10.88.70.2
Slot 0 1 2 3 4
Link 1
Activity/
Status
Link 2
Activity/
Status
45176
